Asus
Дънна платка Asus ROG Strix H370-I Gaming ASUS-MB-STRIX-H370I-GAMING

Дънна платка Asus ROG Strix H370-I Gaming ASUS-MB-STRIX-H370I-GAMING

Name: Дънна платка Asus ROG Strix H370-I Gaming ASUS-MB-STRIX-H370I-GAMING
Brand: Asus
SKU: ROG Strix H370-I Gaming
Availability: OutOfStock

Продуктов код: 27824

Дънна платка Asus ROG Strix H370-I Gaming ASUS-MB-STRIX-H370I-GAMING (снимка 1)

Дънна платка Asus ROG Strix H370-I Gaming ASUS-MB-STRIX-H370I-GAMING

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

ROG Strix H370-I Gaming

Партиден номер:

ASUS-MB-STRIX-H370I-GAMING

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel H370

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1151

Form Factor:

Mini ITX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus ROG Strix H370-I Gaming

CPU
Build in Intel® for 8^th Generation Core^™ Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® H370
Memory
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Expansion Slots
1 x PCIe 3.0/2.0 x16
Storage
Intel® H370 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology 15 support*¹
4 x SATA 6Gb/s port(s),
Intel® Optane™ Memory Ready *²
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Realtek® RTL8111H, 1 x Gigabit LAN
Anti-surge LANGuard
ROG GameFirst Technology
Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth® 5.0*³
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *⁴
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB Ports
Intel® H370 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A, 2 at mid-board)
Intel® H370 Chipset :
6 x USB 3.1 Gen 1 port(s)
Intel® H370 Chipset :
1 x USB 3.1 Gen 1 port(s)
ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
Special Features
Fan Xpert4

Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Performance Optimization :
- DIGI + VRM

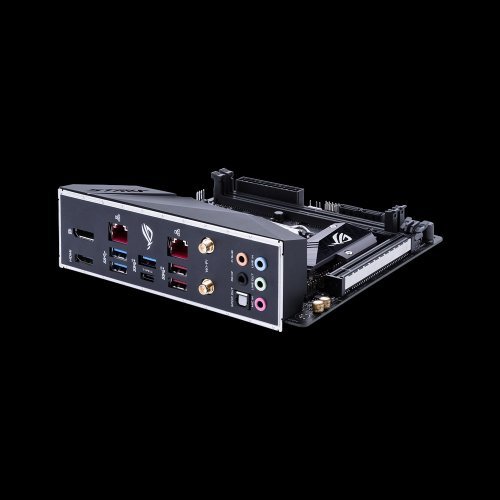

Back I/O Ports
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2
1 x USB 3.1 Gen 1 (blue) USB Type-C^TM,
3 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Wi-Fi antenna port(s)
Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

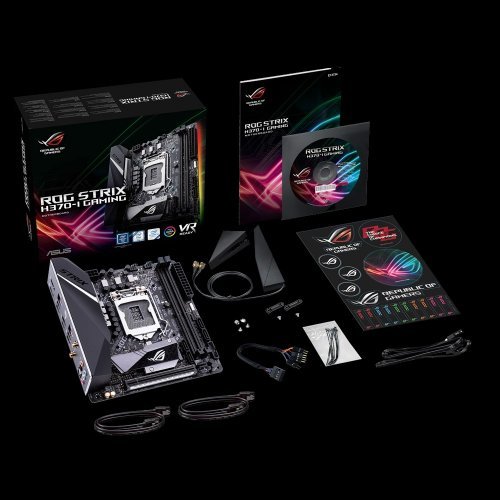

Accessories
User's manual
M.2 2242 mounting kit
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x pack of cable tie
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
1 x ROG Strix stickers
1 x Extension Cable for RGB strips (80 cm)
1 x Panel cable
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF and F9 Search, Secure Erase, User Profile.
Operating System
Windows® 10 64-bit
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
* For a 2242 storage device, use the bundled 2242 mounting kit.

*1 Bluetooth V5.0 will be supported on future versions of Windows. Refer to https://www.microsoft.com for updates on Windows OS Bluetooth support version.

*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
