Дънна платка Asus ROG Strix Z390-H Gaming, LGA1151

Продуктов код: 29869
Дънна платка Asus
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
ROG Strix Z390-H Gaming
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel Z390
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
DisplayPort, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

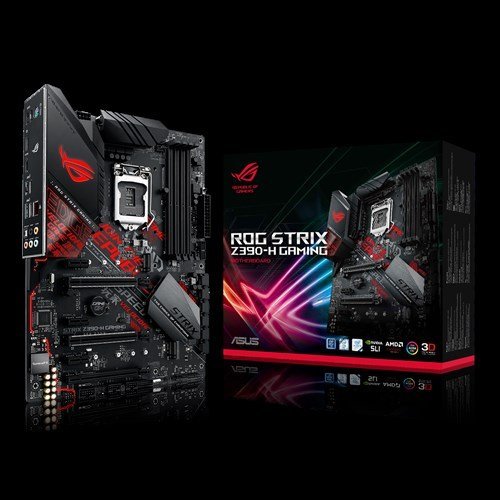

Asus ROG Strix Z390-H Gaming

ASUS ROG Strix Z390-H Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 DP HDMI M.2 USB 3.1 Gen2 Gigabit LAN

  • Designed for 9th and 8th generation Intel® Core™ processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, and ASUS OptiMem II for better DRAM overclocking stability
  • Twin 8-phase power design and improved VRM cooling solution provides better cooling than previous generation platforms
  • 8-channel HD audio with ROG exclusive SupremeFX S1220A codec driven by Japanese capacitors for warm and rich sound
  • Gamer’s Guardian ensures component longevity with SafeSlot, ESD Guards and DRAM Overcurrent Protection
  • Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
  • CPU
    Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  • Chipset
    Intel® Z390
  • Memory
    4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2304 @ 24 Hz / 3840 x 2160 @ 30 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
  • Multi-GPU Support
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    Intel® Z390 Chipset
    1 x PCIe 3.0/2.0 x16 (x2 mode)
    3 x PCIe 3.0/2.0 x1
  • Storage
    Intel® Z390 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready *2
  • LAN
    Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual OP Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/192kHz playback *3
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
    Intel® Z390 Chipset :
    4 x USB 3.1 Gen 2 port(s) (4 at back panel, red)
    Intel® Z390 Chipset :
    6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
    Intel® Z390 Chipset :
    4 x USB 2.0 port(s) (4 at mid-board)
  • ROG Exclusive Features
    ROG Exclusive Software
    - RAMCache III
    - CPU-Z
    - GameFirst V
    - Sonic Studio III + Sonic Studio Link
    - Sonic Radar III
  • Special Features
    Fan Xpert4
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
    ASUS Optimem II：
    - Improved DDR4 Stability
    ASUS EPU :
    - EPU
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    ASUS Exclusive Features :
    - MemOK! II
    - AI Suite 3
    - Ai Charger
    - Armoury Crate
    - Pre-mounted I/O Shield
    - 3D Printing Friendly
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Gaming Aesthetics :
    - AURA-RGB Lighting
    DIY Friendly Design
    - Procool
    - SafeSlot
    - Digi+ VRM
    - DRAM Overcurrent Protection
    - Highly Durable components
    - ESD Guards
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 2 Type-A
    2 x USB 3.1 Gen 1
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x AAFP connector
    1 x Aura RGB Strip Header
    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x TPM connector(s)
    1 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x MemOK! II switch(es)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x Thermal sensor connector
    1 x CPU_OV jumper
  • Accessories
    User's manual
    1 x ASUS Fan Holder
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x ROG Strix stickers
  • BIOS
    1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1.
  • Manageability
    WOL, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ-update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.
    *2 Intel® Optane Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
    *3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
