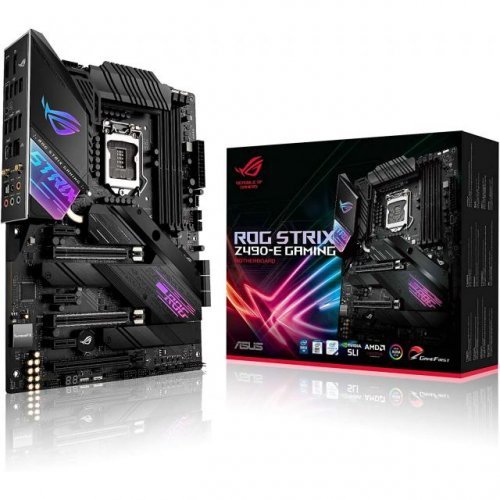

Дънна платка ASUS ROG STRIX Z490-Е GAMING socket 1200 Wi-Fi 6 Aura Sync
The ROG Strix Z490-E Gaming motherboard is designed to cope with the demands of 10th Generation Intel® Core™ processors, with boosted power delivery and an optimized cooling design providing more surface area for heat dissipation. ROG Strix Z490-E Gaming features AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily. Performance aside, ROG Strix Z490-E Gaming catches the eye, sporting cyberpunk inspired aesthetics including a mirrored stainless steel finish.
- Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
- Robust Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power even when push the CPU performance to the limit
- Optimized Thermal Design: Except comprehensive heatsink, heatpipe and fan headers, features low-noise AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta
- High-performance Gaming Networking: On-board Intel WiFi 6 AX201 (802.11 ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, front panel USB 3.2 Gen 2 Type-C connector
- Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action
- Unmatched Personalization
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASUS |
| МОДЕЛ | ROG STRIX Z490-Е GAMING |
| БАРКОД | 4718017671620 |
| CPU SOCKET | 1200 |
| ЧИПСЕТ | Intel Z490 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 4800(O.C.), 4600(O.C), 4500(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3333(O.C.), 3200(O.C.), 3000(O.C.), 2933(O.C.), 2800(O.C.), 2666, 2400, 2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Intel HD Graphics |
| ВГРАДЕНО АУДИО | ROG SupremeFX S1220A 8-Channel high-definition CODEC |
| ВГРАДЕН LAN | Intel I225-V 2.5G LAN, ASUS LAN Guard |
| ВГРАДЕН WI-FI | Wi-Fi 802.11a/b/g/n/ac/ax |
| ВГРАДЕН BLUETOOTH | Bluetooth V5.1 |
| СЛОТOВЕ PCI-E X16 | 3 x PCIe 3.0/2.0 x16 |
| СЛОТOВЕ PCI-E X1 | 3 |
| ИНТЕРФЕЙС SERIAL ATA | 6 x SATA3 6.0 Gb/s |
| М2 СЛОТ | Intel® Optane™ Memory Ready, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| ПОДДРЪЖКА НА RAID | 0, 1, 5, 10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin, 1 x 4-pin |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | NVIDIA 2-Way SLI Technology, AMD 3-Way CrossFireX Technology |
| СВЪРЗАНОСТ | 1 x HDMI, 1 x DisplayPort, 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x 2.5G LAN (RJ45), 1 x Optical S/PDIF out, 5 x gold-plated audi jacks |
| USB TYPCE-C | 1 |
| USB 3.2 | 5 |
| USB 2.0 | 4 |
| ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASUS Aura Sync |
| ДРУГИ | Bios: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
