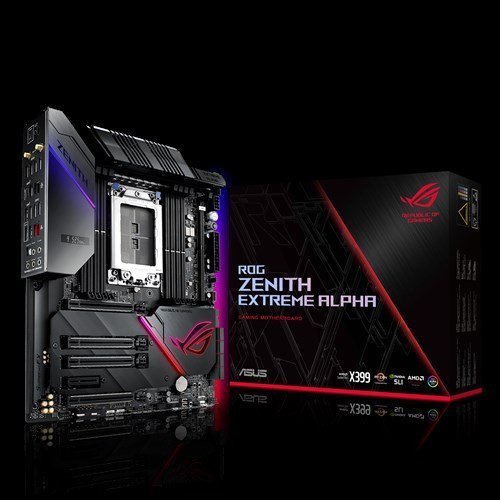

Дънна платка Asus ROG ZENITH EXTREME ALPHA 90MB10G0-M0EAY0

• CPU`s supported: AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors; Supports CPU up to 32 cores

• Chipset: AMD X399

• Expansion Slots: AMD Ryzen™ Threadripper™ Processors; 4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8); AMD X399 chipset; 1 x PCIe 3.0 x4

• Storage: AMD Ryzen™ Threadripper™ Processors : 2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD); 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*2; AMD X399 chipset : 8 x SATA 6Gb/s port(s), ; Support Raid 0, 1, 10

• Memory type: AMD Ryzen™ Threadripper™ Processors; 8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *1; Quad Channel Memory Architecture

• I/O: 1 x LAN (RJ45) port(s); 1 x USB 3.1 Gen 2 (black)TypeC™; 3 x USB 3.1 Gen 2 (red)Type-A; 8 x USB 3.1 Gen 1 (blue); 1 x Optical S/PDIF out; 1 x Clear CMOS button(s); 1 x USB BIOS Flashback® Button(s); 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0; 5 x LED-illuminated audio jacks; 1 x Aquantia AQC-107 10G LAN port

• Connectors: 1 x WB_SENSOR 2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode); 8x SATA 6Gb/s connector; 1x CPU Fan connector; 1x CPU OPT Fan connector; 2x Chassis Fan connector; 1x H_AMP fan connector;; 1x W_PUMP+ connector; 2x 8-pin EATX 8 V Power connector; 1x 24-pin EATX Power connector 1x Front panel audio connecto(AAFP); 1x Slow Mode switch; 7x ProbeIt Measurement Points; 2x Thermal sensor connector; 1x EZ Plug connector(4-pin Molex power connector); 1x Reset button; 1x BIOS Switch button; 1x Node Connector; 1x LN2 Mode jumper; 1x Safe Boot button; 1x ReTry button; 1x 14-1 pin TPM connector; 1x Slow Mode jumper; 1x System panel connector; 1x W_IN header; 1x W_OUT header; 1x W_FLOW header; 1x Start button; 1x USB 3.1 Gen 2 front panel connector; 1x DIMM.2 Slot

• Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output 113 dB SNR recording input; - ESS®SABRE9018Q2C DAC/AMP; - Supports up to 32-Bit/192kHz playback *4; Audio Feature :; - Optical S/PDIF out port(s) at back panel; - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.; - Sonic Radar III; - Sonic Studio III + Sonic Studio Link

• LAN: Aquantia AQC-107 10G; Intel® I211-AT; Anti-surge LANGuard; ROG GameFirst Technology

• BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1

• Form Factor: Extended ATX Form Factor; 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

• OS: Windows® 10 64-bit

• Other: Wi-Fi 802.11 a/b/g/n/ac; Supports dual band frequency 2.4/5 GHz; Supports MU-MIMO; Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed; Bluetooth® 5.0

• Warranty: 36 Months

https://www.asus.com/us/Motherboards/ROG-Zenith-Extreme-Alpha/specifications/
ASUS ROG ZENITH EXTREME ALPHA
