- Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Product Segment
AC1300 enhanced AC performance : 400+867 Mbps
- Coverage
Large homes
- Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 400 Mbps
802.11ac (5GHz) : up to 867 Mbps
- Antenna
External 2 dBi antenna x 4
- Transmit/Receive
MIMO technology
2.4 GHz 2 x 2
5 GHz 2 x 2
- Memory
16 MB Flash
128 MB RAM
- Operating Frequency
2.4 GHz / 5 GHz
- Encryption
64-bit WEP, 128-bit WEP, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
- Management
UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ
- VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
- WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
WAN Bridge support

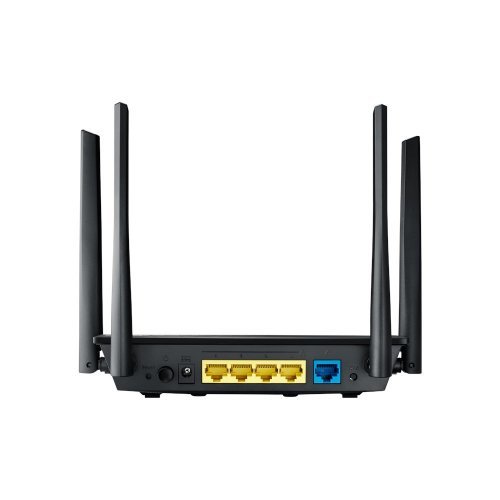

- Ports
RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4
- Features
Router app
MU-MIMO
Traffic Analyzer
Traditional QoS
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Beamforming
- Button
WPS Button, Reset Button, Power Switch
- LED Indicator
Power x 1
WAN x 1
LAN x 4
Wi-Fi x 2
USB x 1
- Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current
- OS Support
Windows® 10
Windows® 8.1
Windows® 7
Mac OS X 10.9 or Above
- Dimensions
12.5 x 19.2 x 3 cm (WxDxH)
- Weight
348 g
- Color
Black
- Package Content
Router
Adapter
RJ-45
QSG
Warranty Card
- Operation mode
Wireless router mode
Access point mode
Media bridge mode
