Дънна платка Asus Strix H270F Gaming ASUS-MB-H270F-STRIX-GAMING

Продуктов код: 20838
Дънна платка Asus
Дънна платка Asus Strix H270F Gaming ASUS-MB-H270F-STRIX-GAMING Дънна платка Asus Strix H270F Gaming ASUS-MB-H270F-STRIX-GAMING Дънна платка Asus Strix H270F Gaming ASUS-MB-H270F-STRIX-GAMING Дънна платка Asus Strix H270F Gaming ASUS-MB-H270F-STRIX-GAMING Дънна платка Asus Strix H270F Gaming ASUS-MB-H270F-STRIX-GAMING Дънна платка Asus Strix H270F Gaming ASUS-MB-H270F-STRIX-GAMING Дънна платка Asus Strix H270F Gaming ASUS-MB-H270F-STRIX-GAMING
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
Strix H270F Gaming
Партиден номер:
ASUS-MB-H270F-STRIX-GAMING
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel H270
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
DisplayPort, DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Asus Strix H270F Gaming

  • CPU
    Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® H270
  • Memory
    4 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3000(O.C.)/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
    ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
  • Graphic
  • Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
    DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • CUDA Core

  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    4 x PCIe 3.0/2.0 x1
  • Storage
    Intel® H270 Chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology 15 support
    Intel® Optane™ Memory Ready *3
  • LAN
    Intel® I219V
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Audio
  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual Headphone Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - Supports up to 32-Bit/192kHz playback *4
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
  • Intel® H270 Chipset :
    6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
    Intel® H270 Chipset : *5
    8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
    ASMedia® USB 3.1 controller :
    2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)
  • ROG Exclusive Features
  • ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Overwolf
    GameFirst IV
    ROG Aura
    - Aura Lighting Control
    - Aura RGB Strip Headers
  • Special Features
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - ESD Guards
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Gaming Aesthetics :
    - 3D printing friendly
    - AURA-RGB Lighting
    Performance Optimization :
    - DIGI + VRM
    - GPU Boost
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
    - AI Suite 3
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  • Operating System Support

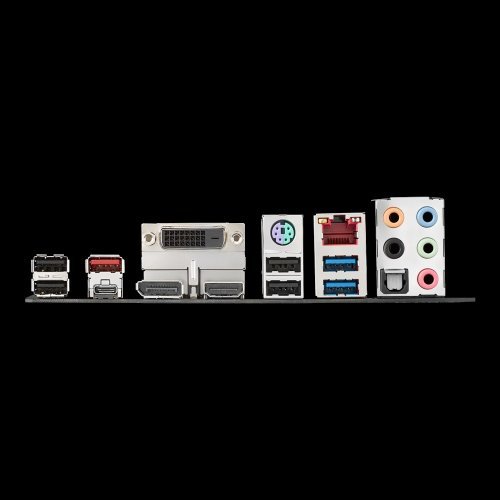

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Type-A + Type-C
    2 x USB 3.0 (blue)
    4 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x AAFP connector
    1 x RGB Header(s)
    2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x Clear CMOS jumper(s)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x ROG extension (ROG_EXT) header(s)
    1 x 14-1 pin TPM connector
    1 x COM port header
    1 x T_Sensor Connector
    3 x 3D Mount screw port(s)
  • Accessories
    User's manual
    ASUS Q-Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ROG Strix stickers
    1 x 10 in 1 ROG Cable Label(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x 3D printing mount package
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
  • Manageability
    WfM2.0, DMI3.0, WOL by PME, PXE
  • Support Disc

  • Operating System
    Windows® 10 64-bit
    Windows® 8.1 64-bit *6
    Windows® 7 32-bit *6
    Windows® 7 64-bit *6
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Management Solution

  • Weight

  • Environment

  • Note
    *1 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
    *2 The M.2_1 and M.2-2 sockets support Intel Optane Technology.
    *3 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
    *4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
    *5 2 x USB 2.0 port at mid-board shares with ROG extension (ROG_EXT) port.
    *6 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
    *7 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
