Дънна платка Asus Strix H270I Gaming

Дънна платка Asus Strix H270I Gaming

Name: Дънна платка Asus Strix H270I Gaming
Brand: Asus
SKU: Strix H270I Gaming
Availability: OutOfStock

Продуктов код: 26969

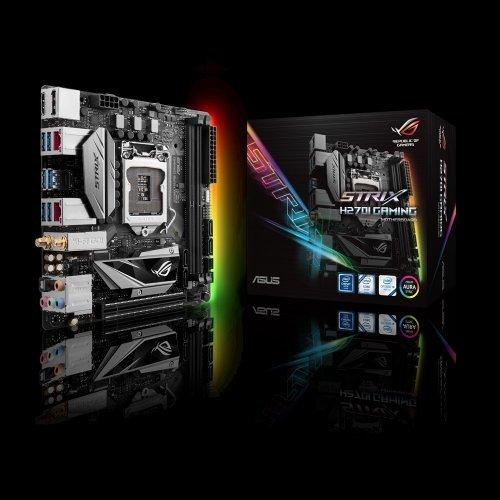

Дънна платка Asus Strix H270I Gaming (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

Strix H270I Gaming

Партиден номер:

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel H270

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1151

Form Factor:

Mini ITX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus Strix H270I Gaming

Intel LGA-1151 mini-ITX H270 gaming motherboard with double-decker heatsink, Aura Sync RGB LED, dual LAN, 802.11ac Wi-Fi, dual M.2 and SATA 6Gbps

The successor to the ASUS Pro Gaming motherboard series
LGA1151 socket for 7th Gen and 6th Gen Intel® Core™ desktop processors
Double-decker PCH and M.2 heatsinks designed for optimal heat dissipation and gaming performance
Aura Sync RGB LEDs and an Aura 4-pin RGB header for ultimate customizability
ROG SupremeFX audio: Renowned audio performance with dual headphone amplifiers, leveled-up Sonic Studio III, and Sonic Radar III
Best gaming networking: Dual LAN (Intel® and Realtek®), 2x2 802.11ac MU-MIMO Wi-Fi, plus LANGuard and GameFirst technologies
Next-gen connectivity: Onboard dual M.2 slots for up to 32Gbps of PCIe bandwidth and Intel® OptaneTM Memory ready
Patent-pending ASUS SafeSlot for enhanced PCIe retention and shearing resistance

CPU
Intel® Socket 1151 for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® H270
Memory
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots
1 x PCIe 3.0/2.0 x16
Storage
Intel® H270 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology 15 support*¹
4 x SATA 6Gb/s port(s),
Intel® Optane™ Memory Ready *²
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Realtek® RTL8111H, 1 x Gigabit LAN
Anti-surge LANGuard
ROG GameFirst IV
Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth V4.1*³
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *⁴
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
USB Ports
Intel® H270 Chipset :
8 x USB 3.1 Gen 1 port(s) (6 at back panel, +blue, 2 at mid-board)
ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Special Features
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

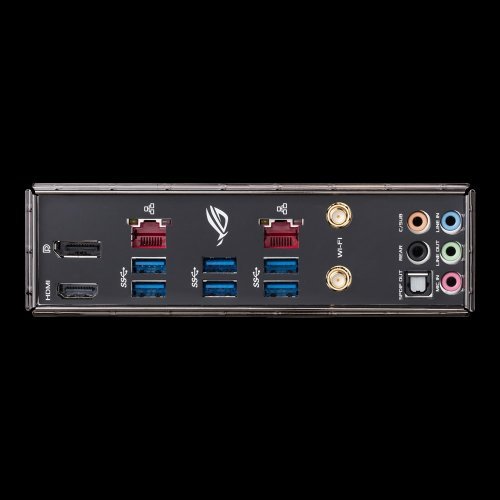

Back I/O Ports
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
6 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Wi-Fi antenna port(s)
Internal I/O Ports
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

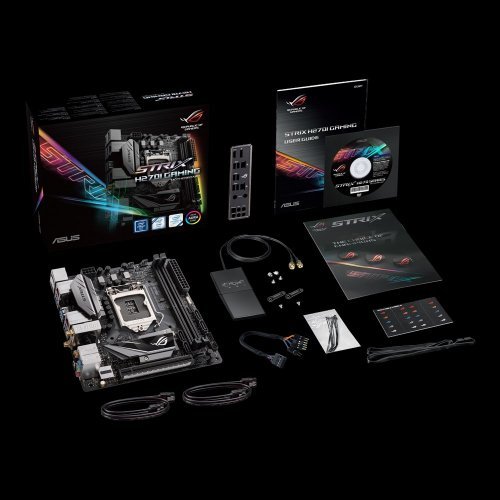

Accessories
User's manual
M.2 2242 mounting kit
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x pack of cable tie
1 x Supporting DVD

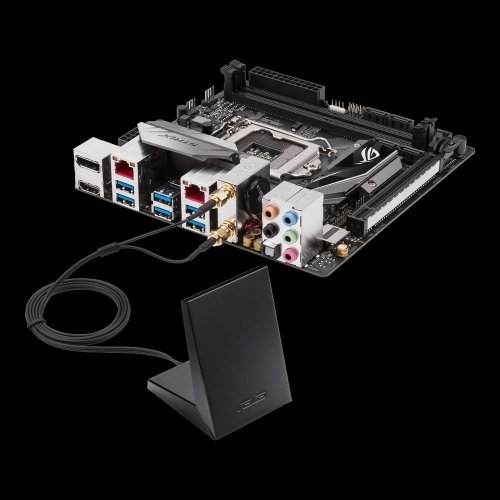

1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
1 x Extension Cable for RGB strips (80 cm)
1 x Panel cable
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *⁵
Windows® 7 32-bit *⁵
Windows® 7 64-bit *⁵
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
* For a 2242 storage device, use the bundled 2242 mounting kit.

*1 This function will work depending on the CPU installed.

*2 Intel® OptaneTM Technology is only supported when using 7th Generation Intel® Processors. Before using Intel® OptaneTM memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

*3 Support for the Bluetooth specification depends on the Windows version. Windows® 7/8.1 support up to Bluetooth 4.0.

*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio and due to
Windows 7 limitations, 32-Bit playback is unavailable for Windows 7.

*5 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
