Asus TUF B450M-PRO GAMING, s. AM4, AMD B450

Продуктов код: 37898
Дънна платка Asus

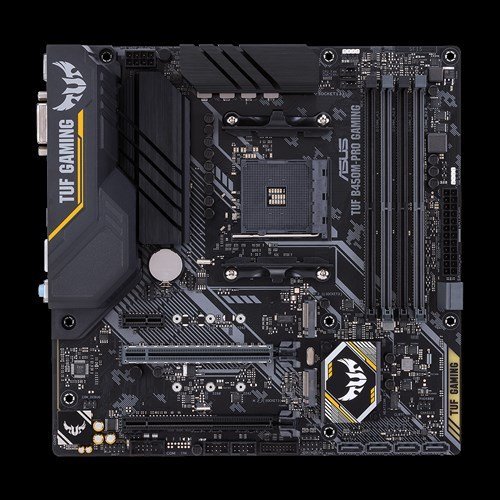

Дънна платка Asus TUF B450M-PRO GAMING, s. AM4, AMD B450 (умалена снимка 1) Дънна платка Asus TUF B450M-PRO GAMING, s. AM4, AMD B450 (умалена снимка 2) Дънна платка Asus TUF B450M-PRO GAMING, s. AM4, AMD B450 (умалена снимка 3) Дънна платка Asus TUF B450M-PRO GAMING, s. AM4, AMD B450 (умалена снимка 4) Дънна платка Asus TUF B450M-PRO GAMING, s. AM4, AMD B450 (умалена снимка 5) Дънна платка Asus TUF B450M-PRO GAMING, s. AM4, AMD B450 (умалена снимка 6)
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
TUF B450M-PRO GAMING
Партиден номер:
90MB10A0-M0EAY0
Гаранция:
36 месеца
Чипсет:
AMD B450
Socket:
AMD AM4
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
DVI-D, HDMI
Form Factor:
Micro ATX
Интерфейс:
1x Ethernet (RJ-45), 2x USB 2.0, 3x Audio jack-3.5mm (2X Out & In)
Цена с включен ДДС:
232.07 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за Asus TUF B450M-PRO GAMING

  • Ревюта
  • Въпроси и отговори

Socket: AM4



Graphics: Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors; Multi-VGA output support : HDMI/DVI-D ports; - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz; - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz



CPU`s supported: AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors; Supports CPU up to 8 cores



Chipset: AMD B450



Expansion Slots: AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors; 1 x PCIe 3.0/2.0 x16 (x16 mode); AMD Ryzen™ with Radeon™ Vega Graphics Processor; 1 x PCIe 3.0/2.0 x16 (x8 mode); AMD Athlon™ with Radeon™ Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (max at x4 mode); AMD B450 chipset; 1 x PCIe 2.0 x16 (max at x4 mode); 1 x PCIe 2.0 x1



Storage: AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1; AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*1; AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x SATA 6Gb/s port(s); Support Raid 0, 1, 10; AMD B450 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2; 4 x SATA 6Gb/s port(s); Support Raid 0, 1, 10



Memory type: AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors; 4 x DIMM, Max. 64GB, DDR4 3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.



I/O: 1 x PS/2 keyboard/mouse combo port(s); 1 x DVI-D; 1 x HDMI; 1 x LAN (RJ45) port(s); 1 x USB 3.1 Gen 2 Type-A,; 1 x USB 3.1 Gen 1 USB Type-CTM; 2 x USB 3.1 Gen 1 (blue) Type-A; 2 x USB 2.0; 3 x Audio jack(s)



Connectors: 2 x Aura RGB Strip Header; 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support; 6 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s) (1 x 4 -pin); 2 x Chassis Fan connector(s) (2 x 4 -pin); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x System panel(s); 1 x Clear CMOS jumper(s); 1 x COM port header; 1 x Speaker connector



Audio: Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *3; Audio Feature : - Exclusive DTS Custom for GAMING Headsets.; - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.



LAN: Realtek® RTL8111H; TUF LANGuard



BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite,Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information



Form Factor: mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )



OS: Windows® 10 64-bit; Windows® 7 64-bit *4



Warranty: 36 Months



https://www.asus.com/Motherboards/TUF-B450M-PRO-GAMING/specifications/
