Описание |
TUF Gaming A520M-Plus II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case. |
ключови търговски точки/предимства |
- Rock-solid performance
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus II is the perfect foundation for your next high-core-count battle rig.
- Easy PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armory Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
- Immersive gaming
TUF GAMING A520M-Plus II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
- Network-optimization software for customizable packet prioritization
Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.
|
продукт: |
Име на продукта: |

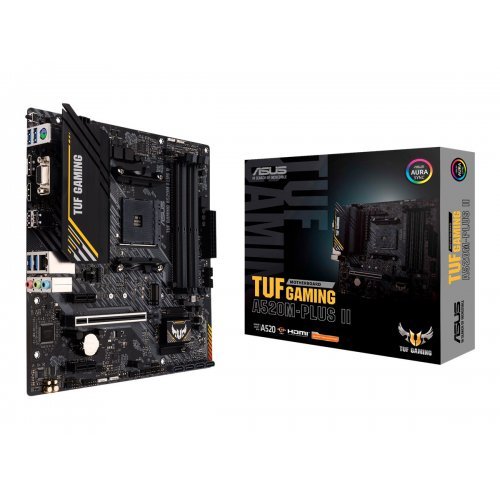

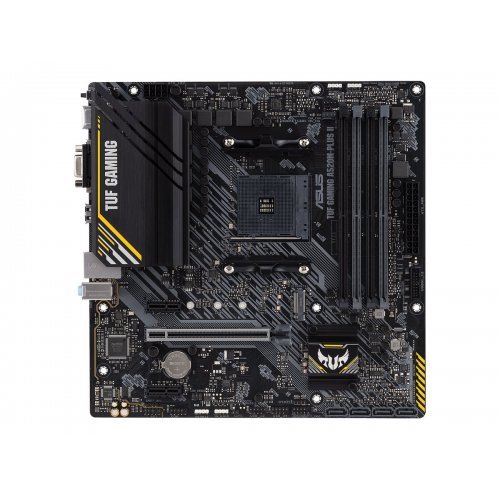

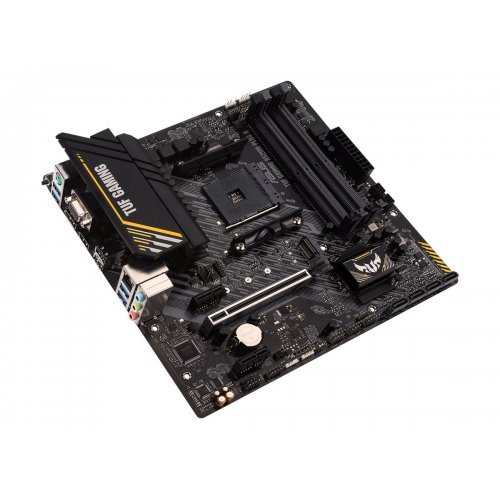

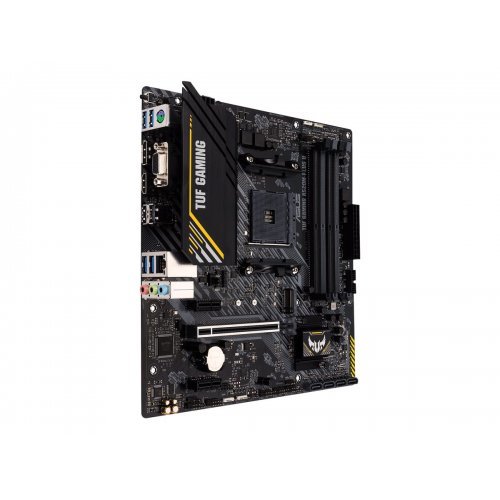

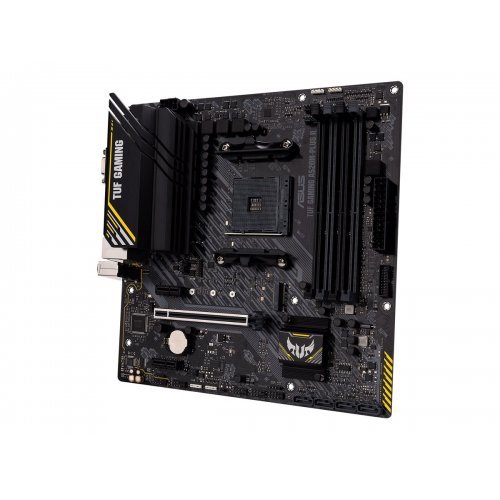

ASUS TUF GAMING A520M-PLUS II AM4 A520 M.2 AURA DP HDMI MB |
Описание : |
ASUS TUF GAMING A520M-PLUS II - Motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
EAN: |
|
|
|
General |
Product Type: |
Motherboard - micro ATX |
Chipset Type: |
AMD A520 |
Processor Socket: |
Socket AM4 |
Max Processors Qty: |
1 |
Compatible Processors: |
Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
Supported RAM |
Max Size: |
128 GB |
Technology: |
DDR4 |
Bus Clock: |
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4466 MHz (O.C.) |
Supported RAM Integrity Check: |
Non-ECC, ECC |
Registered or Buffered: |
Unbuffered |
Features: |
Dual channel memory architecture |
Audio |
Type: |
HD Audio (8-channel) |
Audio Codec: |
Realtek ALC887/ALC897 |
Compliant Standards: |
High Definition Audio |
LAN |
Network Interfaces: |
Gigabit Ethernet |
Expansion / Connectivity |
Expansion Slots: |
1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1 |
Storage Interfaces: |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
Interfaces: |

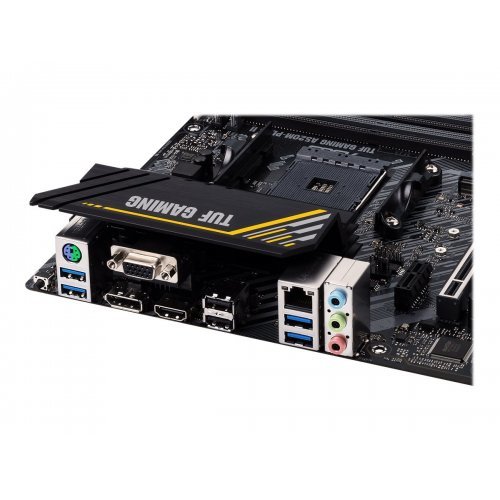

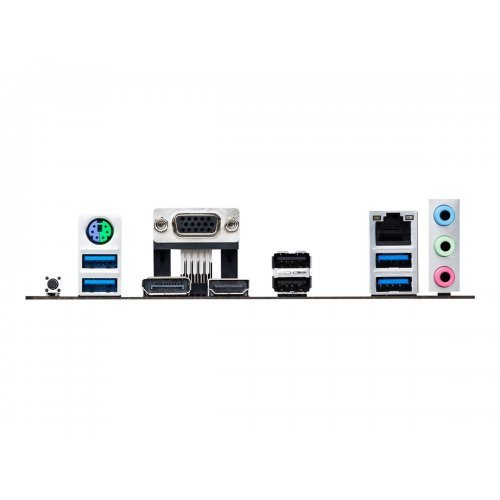

1 x VGA 1 x DisplayPort 4 x USB 3.2 Gen 1 1 x HDMI 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x PS/2 keyboard / mouse 2 x USB 2.0 1 x LAN (Gigabit Ethernet) |
Internal Interfaces: |
4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x SPDIF out - header 1 x serial - header 1 x audio - header 1 x speaker - header |
Power Connectors: |
24-pin main power connector, 8-pin ATX12V connector |
Features |
BIOS Type: |
AMI |
BIOS Features: |
UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up: |
Wake on LAN (WOL) |
Hardware Features: |
Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, ASUS SafeSlot Core+ |
Miscellaneous |

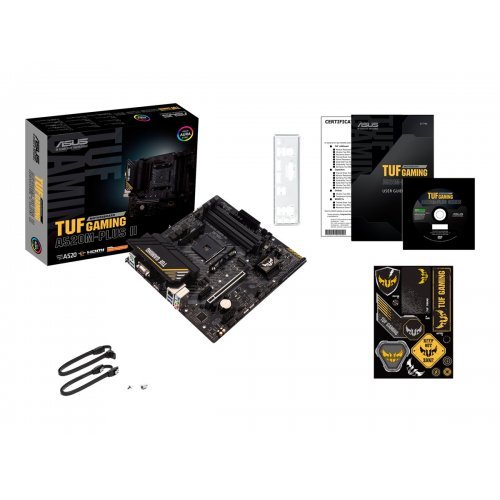

Included Accessories: |

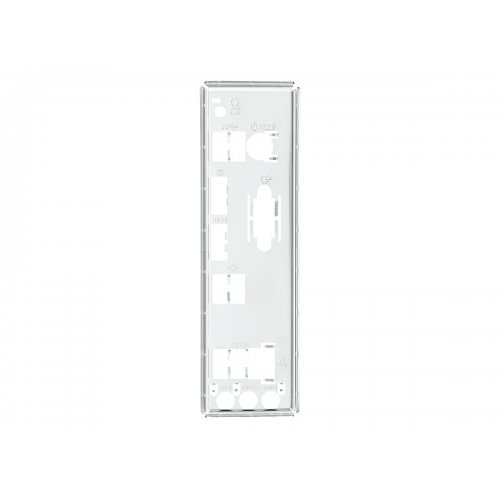

1 x M.2 screw, I/O back cover, TUF stickers, ASUS Wi-Fi moving aerial |
Cables Included: |
2 x Serial ATA cable |
Software Included: |
Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, PC Cleaner, ASUS EZ Flash 3, DAEMON Tools, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial) |
Width: |
24.4 cm |
Depth: |
24.4 cm |
