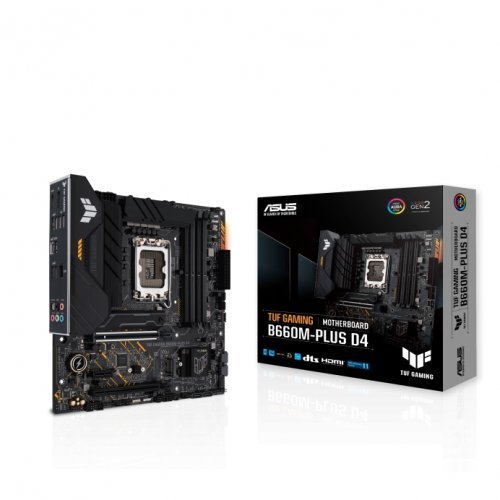

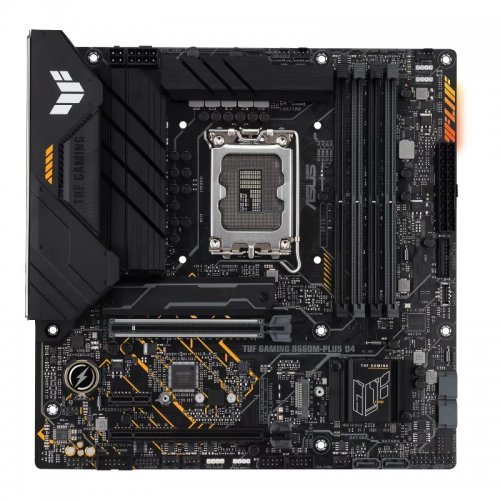

Asus TUF GAMING B660M-PLUS D4
Характеристики
Graphics:
1 x DisplayPort**;
1 x HDMI® port***
CPU's supported:
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors;
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
Expansion Slots:
Intel® 12th Gen Processors;
1 x PCIe 5.0 x16 slot;
Intel® B660 Chipset*;
1 x PCIe 3.0 x16 slot (supports x4 mode);
1 x PCIe 4.0 x1 slot
Storage:
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*;
Intel® 12th Gen Processors;
M.2_1 slot (Key M), type 2242/2260/2280;
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.;
Intel® B660 Chipset**;
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);
4 x SATA 6Gb/s ports
Memory type:
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*;
Dual Channel Memory Architecture;
Supports Intel® Extreme Memory Profile (XMP);
OptiMem II

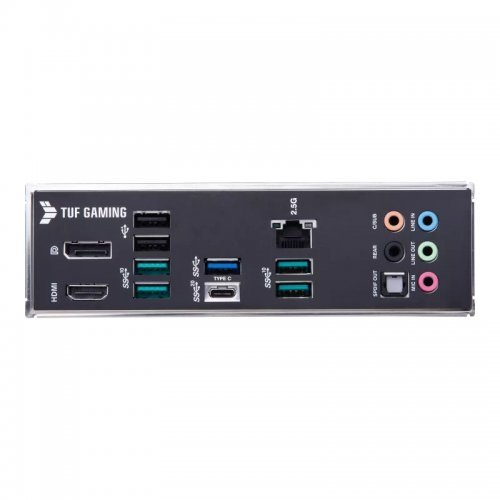

I/O:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®);
4 x USB 3.2 Gen 2 ports (4 x Type-A);
1 x USB 3.2 Gen 1 port (1 x Type-A);
2 x USB 2.0 ports (2 x Type-A);
1 x DisplayPort;
1 x HDMI® port;
1 x Realtek 2.5Gb Ethernet port;
5 x Audio jacks;
1 x Optical S/PDIF out port
Connectors:
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
1 x 4-pin AIO Pump header;
3 x 4-pin Chassis Fan headers;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
1 x 4-pin +12V Power connector;
2 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
1 x USB 3.2 Gen 1 connector (supports USB Type-C®);
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports;
2 x USB 2.0 headers support additional 4 USB 2.0 ports;
3 x Addressable Gen 2 headers;
1 x AURA RGB header;
1 x Clear CMOS header;
1 x COM Port header;
1 x Front Panel Audio header (AAFP);
1 x 20-3 pin System Panel header with Chassis intrude function;
1 x Thunderbolt™ heade
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
- Audio Features;
- Audio Shielding;
- Power pre-regulator reduces power input noise to ensure consistent performance;
- Rear optical S/PDIF out port;
- Premium audio capacitors;
- Dedicated audio PCB layers
LAN:
TUF LANGuard;
1 x Realtek 2.5Gb Ethernet ;
TUF LANGuard
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor:
microATX;
24.4cm x 24.4cm
