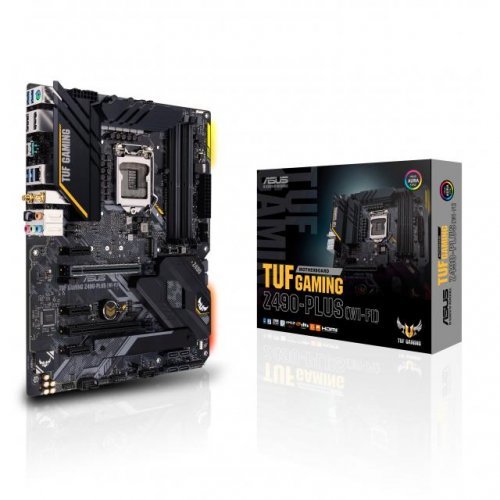

Дънна платка ASUS TUF GAMING Z490-PLUS (WI-FI) socket 1200 Wi-Fi 6 Aura Sync
TUF Gaming Z490-Plus (WiFi) distills essential elements of the latest Intel® platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
- Intel LGA 1200 Socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
- Enhanced Power Solution: 12+2 DrMOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
- Comprehensive Cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- On-line Gaming Networking: Intel WiFi 6 AX201 (802.11 ax), Intel Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
- Fastest Connectivity: Front header for USB 3.2 Gen 2 Type-C and Thunderbolt 3 support
- Gaming Look and Feel: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips with Aura Sync
- Immersive Gaming Audio: The Realtek S1200A codec offers pristine audio quality to draw you deeper into the game action or to enhance your favorite music tracks or videos
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASUS |
| МОДЕЛ | TUF GAMING Z490-PLUS (WI-FI) |
| БАРКОД | 4718017678179 |
| CPU SOCKET | 1200 |
| ЧИПСЕТ | Intel Z490 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 4800(O.C.), 4600(O.C), 4500(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3333(O.C.), 3200(O.C.), 3000(O.C.), 2933(O.C.), 2800(O.C.), 2666, 2400, 2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Intel HD Graphics |
| ВГРАДЕНО АУДИО | Realtek® ALC S1200A 8-Channel High Definition Audio CODEC |
| ВГРАДЕН LAN | Intel I219V + TUF LANGuard, |
| ВГРАДЕН WI-FI | Intel® Wi-Fi 6 AX201 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO |
| ВГРАДЕН BLUETOOTH | Bluetooth V5.1 |
| СЛОТOВЕ PCI-E X16 | 2 x PCIe 3.0/2.0 x16 |
| СЛОТOВЕ PCI-E X1 | 3 |
| ИНТЕРФЕЙС SERIAL ATA | 6 x SATA3 6.0 Gb/s |
| М2 СЛОТ | Intel® Optane™ Memory Ready, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) |
| ПОДДРЪЖКА НА RAID | 0, 1, 5, 10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin, 1 x 4-pin |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | AMD 2-Way CrossFireX Technology |
| СВЪРЗАНОСТ | 1 x PS/2, 1 x HDMI, 1 x DisplayPort, 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 1 x RJ-45, 1 x optical S/PDIF out, 5 x audio jack's |
| USB TYPCE-C | 1 |
| USB 3.2 | 5 |
| ПОДДЪРЖАНИ ТЕХНОЛОГИИ | ASUS Aura Sync |
| ДРУГИ | Bios: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
