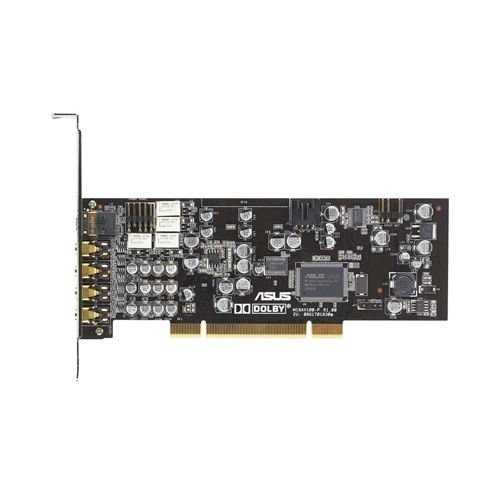

Asus Xonar D1, 7.1 Chanel Audio, PCI

	Dolby Home Theater Technologies & Richest Gaming Audio
	Effects for best PC audio upgrade

Complete Dolby Home Theater technologies
Inheriting from DX and D2X, Xonar D1 also provides complete valuable Dolby Home Theater technologies for games and all home entertainments:

Dolby Digital Live:
Real-time 5.1 Dolby Digital surround sound encoders

Dolby Pro-Logic IIx:
Converts stereo or 5.1 sounds to seamless 7.1 surround soundfield

Dolby Headphone:
Delivers a realistic and spacious 2-to-5.1 surround or 3D positional soundfield over any set of stereo headphones

Dolby Virtual Speaker:
Simulates a highly realistic 5.1-speaker surround sound listening environment from as few as two speakers

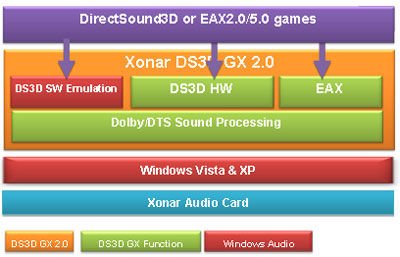

Supports latest DS3D GX 2.0 for gaming on Vista & XP
DS3D GX 2.0 not only revives EAX and DirectSound effects in games on Windows Vista as GX 1.0, but also incorporates Dolby Home Theater Technologies (Dolby Virtual Speaker, Dolby Headphone, Dolby Digital Live, Dolby PrologicIIX) to provide best gaming audio experience.

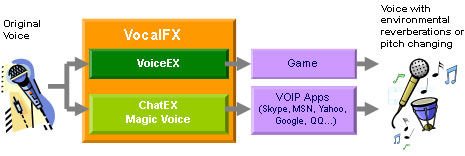

Innovative VocalFX makes gaming and online chat more lively and attractive
VocalFX is an innovative voice processing technology to let your voice get into the realistic game landscape (VoiceEX) or to emulate the background scenes in online chat (ChatEX). It also allows you to change your voice pitch to disguise who you are (Magic Voice). These features dramatically increase the fun for voice communication on PC.

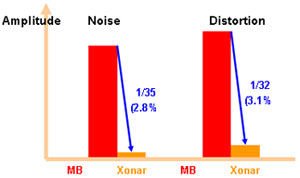

Delivers about 35 times cleaner audio quality (116dB SNR) than most motherboard audio (85dB SNR)
The noise on Xonar D1 audio card is only 1/35 (2.8%) of the noise level from most motherboard onboard audio. In addition, Xonar D1 also produces as little as 1/32 (-105dB) of the total harmonics distortion from motherboard audio does (-75dB).

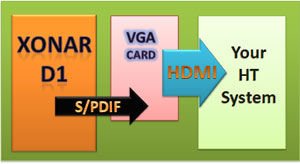

S/PDIF header for combining audio with video through a VGA card’s HDMI output
The new S/PDIF header allows connectivity with supporting VGA cards, facilitating merged output of audio and video through a VGA card’s HDMI port. This provides a clean, simple solution for Home Theater PC builders.

Package Contents
Xonar D1 7.1 Channel PCI Audio Card
Driver CD (including RMAA V6.0.6 utilities)
Low-profile bracket
S/PDIF TOSLINK optical adaptors *1
Quick Start Guide
Driver CD (including RMAA V6.0.6 utilities)

System Requirements
One PCI slot for the audio card
Microsoft® Windows® Vista(32/64bit)/XP(32/64bit)/MCE2005
Intel® Pentium®4 1.4GHz or AMD Athlon 1400 CPU or faster CPU
>256 MB DRAM system memory
>60 MB available HDD space for driver installation package
CD-ROM drive (or DVD-ROM drive) for software installation
High-quality headphones, powered analog speakers, or a Dolby Digital or DTS decoder, to enjoy the ultra-high fidelity sounds of the card

• Audio Interface
  PCI
• Audio Performance
  Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
  116 dB
  Output THD+N at 1kHz (Front-out) :
  >0.00056 %(-105 dB)
  Output THD+N at 1kHz (Headphone-out) :
  >0.001 %(-100 dB)
  Frequency Response (-3dB, 24bit/96KHz input) :
  10 Hz to 48 KHz
  Output/Input Full-Scale Voltage :
  Line output (RCA, 3.5) : 2 Vrms (5.65 Vp-p)
• Chipset
  Audio Processor :ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit)
• Sample Rate and Resolution
  Analog Playback Sample Rate and Resolution :
  44.1K/48K/96K/192KHz @ 16bit/24bit
  Analog Recording Sample Rate and Resolution :
  44.1K/48K/96K/192KHz @ 16bit/24bit
  S/PDIF Digital Output :
  44.1K/48K/96K/192KHz @ 16bit/24bit
  ASIO Driver Support :
  44.1K/48K/96K/192KHz @ 16bit/24bit
• Connectivity
  Analog Output
  4 x 3.5 mm jack (1/8") (Front out/Side out/Center-Subwoofer out/Rear out)
  Analog Input
  1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
  Digital
  1 x S/PDIF out (1 x Optical (Toslink)/(combo with analog in))
  1 x Front-Panel Header
  1 x Aux in (4-pin header)
• Special Features
  Dolby® Technologies : Dolby® Digital Live/Dolby® Headphone /Dolby® Virtual Speaker /Dolby® Pro-Logic II
  Smart Volume Normalizer™
  FlexBass™
  10 -band Equalizer
  27 Environment Effects
  GX 2.5 Game Audio Engine
  VocalFX™
• Operating System
  Windows® 10
  Windows® 8.1
  Windows® 8
  Windows® 7
• Accessories
  S/PDIF adapter x 1
  Low-profile bracket x 1
  Quick start guide x 1
• Note
  RightMark Audio Analyzer 6.0.6:
  Easy but powerful software intended for testing the quality of audio equipments
