Asus Xonar DG SI, 5.1 Chanel Audio, PCI

Name: Asus Xonar DG SI, 5.1 Chanel Audio, PCI
Brand: Asus
SKU: Xonar DG SI
Availability: OutOfStock

Продуктов код: 8720

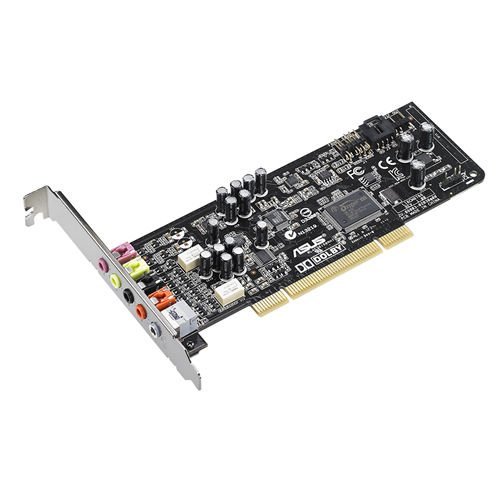

Звукови карти > Asus Xonar DG SI (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

Xonar DG SI

Партиден номер:

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus Xonar DG SI

PCI 7.1-channel gaming audio card and headphone amplifier

Built-in headphone amplifier to power up every sound detail in gaming
3 headphone gain modes for different usage scenarios - VOIP, pro-gaming and exciter
Dolby® Headphone technology for an immersive 5.1 surround experience
ASUS exclusive GX2.5 gaming audio engine for legacy EAX® support

Optimized for immersive gaming action through precision audio

The Xonar DG SI audio card combines Dolby® Headphone 5.1 high definition surround with the ASUS-exclusive GX 2.5 gaming audio engine and an on-board headphone amplifier. These result in accurate and deep audio that brings every nuance and sound across fully, making the new Xonar DG SI 7.1 an ideal audio card for gamers who want to remain totally aware of their play environments.

Built-in headphone amplifier

Powers up every sound detail in gaming
Headphone amplifier improves tone and timbre fidelity and dynamic range extension even from low-power sources. The Xonar DG SI’s 150ohm-optimized amplifier drives your headphones independently, helping gamers become better informed of environments and thus more competitive, especially in multiplayer first person shooters.

Three headphone gain modes for different usage scenarios
The Xonar DG SI includes VoIP, pro gaming, and exciter modes to enhance sound in diverse situations.
- VoIP mode (0dB boost): dedicated to chat with headsets, providing clearer voice and music enjoyment.
- Pro gaming mode (9dB boost): adds extra sound dynamics in higher frequencies for better audio positioning.
- Exciter mode (16dB boost): get immersed in gameplay and enveloped by powerful bass with a fuller sound field.

Dolby® Headphone technology for an immersive 5.1-channel surround experience

The Xonar DG SI uses Dolby® Headphone technology to level up your stereo headphones to surround sound brilliance.

GX 2.5 for realistic 3D gaming audio effects

The exclusive ASUS GX 2.5 gaming audio engine on the Xonar DG SI supports the latest version of EAX®, allowing up to 128 different sound effects simultaneously for a realistic 3D audio environment in legacy games.

Automatic jack-sensing front-panel output

The Intel® HDA-compatible front-panel header automatically switches output between the back and the front of the case once speakers/headphones are plugged in. Never again will you be bothered by the need to change connection settings manually!

Audio Interface
PCI
Audio Performance
Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
105 dB
Output THD+N at 1kHz (Front-out) :
>0.0025 %(-92 dB)
Frequency Response (-3dB, 24bit/96KHz input) :
10 Hz to 48 KHz
Output/Input Full-Scale Voltage :
Unbalanced Output : 1 Vrms (3 Vp-p)
Chipset
Audio Processor :C-Media CMI8786 High-Definition Sound Processor (Max. 96KHz/24bit)
Sample Rate and Resolution
Analog Playback Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96K/192KHz @ 16bit/24bit
ASIO Driver Support :
44.1K/48K/96K/192KHz @ 16bit/24bit
Connectivity
Analog Output
4 x 3.5 mm jack (1/8") (Front out/Side out/Center-Subwoofer out/Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Digital
1 x S/PDIF out (1 x Optical (Toslink)/(combo with rear out))
1 x Front-Panel Header
1 x Aux in (4-pin header)
Special Features
Smart Volume Normalizer™
Magic Voice™
10 -band Equalizer
27 Environment Effects
GX 2.5 Game Audio Engine
VocalFX™
Accessories
S/PDIF adaptor x 1
Quick Start Guide x 1
