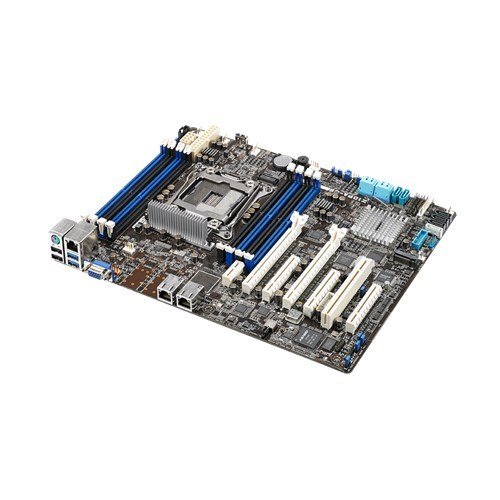

Дънна платка Asus Z10PA-U8

ASUS Z10PA-U8 LGA2011-3

Mnfr. Part#: Z10PA-U8

• Graphics: Aspeed AST2400 with 32MB VRAM

• CPU`s supported: 1 x Socket R3 (LGA 2011-3; Square type 80x80mm;The maximum length of the heatsink screw thread is 3.7mm.) ; Intel® Xeon® processor E5-1600 v4 product family; Intel® Xeon® processor E5-1600 v3 product family; Intel® Xeon® processor E5-2600 v4 product family ; Intel® Xeon® processor E5-2600 v3 product family; Intel® Core™ i7 Processors for LGA 2011-3 Socket.

• Chipset: Intel® C612 PCH

• Expansion Slots: Total Slot : 6; Slot Location 1 : PCI-E x8 (Gen2 X4 Link) ; Slot Location 2 : PCI 32bit/33MHz ; Slot Location 3 : PCI-E x8 (Gen3 X8 Link) ; Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied ; Slot Location 5 : PCI-E x8 (Gen3 X8 Link) ; Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied; Slot Location 7 : MIO Slot for Audio card

• Storage: SATA Controller :Intel® C612;10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector; Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ); LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ); SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional); ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)

• Memory type: Total Slots : 8 (4-channel per CPU, 8 DIMM per CPU) ; Capacity : Maximum up to 512GB LRDIMM; Memory Type :DDR4 2400 /1866*/2133 /1600/1333 RDIMM; DDR4 2400 /1866*/2133 /1600/1333 LRDIMM; Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM; 64GB, 32GB LRDIMM; 16GB, 8GB, 4GB UDIMM; * Refer to support page for more information ; * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

• I/O: 2 x USB 3.1 Gen 1; 2 x USB 2.0; 1 x VGA Port; 2 x GbE LAN; 1 x Mgmt LAN; 1 x PS/2 KB/Mouse

• Connectors: 1 x TPM header; 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector); 1 x Management Connector , Onboard socket for optional management card; 1 x USB 3.0 pin header , Up to 2 Devices; 1 x USB 2.0 pin header , Up to 2 Devices; 6 x Fan Header , 4pin; 1 x SMBus ; 1 x Chassis Intruder; 2 x Front LAN LED; 1 x Serial Port Header; 1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB

• Form Factor: ATX

• Other: Networking: 2 x Intel® I210AT + 1 x Mgmt LAN; Management Solution:ASWM Enterprise,Optional ASMB8-iKVM for KVM-over-Internet; Environment: Operation temperature: 10? ~ 35?; Non operation temperature: -40? ~ 70?; Non operation humidity: 20% ~ 90% ( Non condensing)

• Warranty: 36 Months
