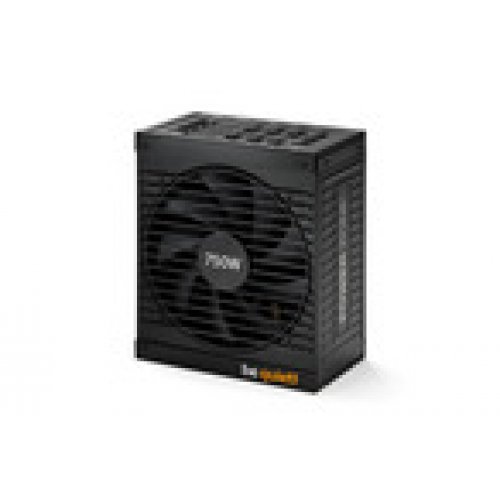

Be Quiet! Power Zone 750W BN211, 80 Plus Bronze

Продуктов код: 11199
Захранващи блокове Be Quiet!
Захранващи блокове > Be Quiet! BN211 Захранващи блокове > Be Quiet! BN211 Захранващи блокове > Be Quiet! BN211
Захранващи блокове Be Quiet!
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Be Quiet!
Модел:
-
Партиден номер:
BN211
Гаранция:
60 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Видео (1)
  • Ревюта
  • Въпроси и отговори

Be Quiet! BN211

General data

Continuous power (W)
750
Peak power (W)
800
Form factor ATX 12V
ATX12V 2.4
Form factor EPS 12V
EPS12V V2.92
Modular cable management
✓
Special technology
Active Clamp + SR, DC/DC
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
9 / 4
PFC
active
Power factor at 100% load
>0.99
Compliant to Intel C6/C7
✓
Compliant to Intel C6 mode
✓
Power consumption in standby (W)
<0.15
Average life time (h / 25°C)
100.000
Operating temperature up to (°C)
50

Output

12V rails (multi-rail operation)
-
12V single rail operation
✓
Overclocking key
-
+3.3V (A)
25
+5V (A)
25
+12V1 (A)
62
+12V2 (A)
-
+12V3 (A)
-
+12V4 (A)
-
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.30
+5Vsb (A)
3.00
Max. combined power 12V (W)
744
Max. combined power 3.3V + 5V (W)
150
Hold-up time (ms @ 100%)
23.0

Fan / Cooling technology

Fan type
be quiet! SilentWings
+SilentWings
✓
Motor technology
6-pole fan motor
Bearing technology
FDB
Fan size (mm)
135
Max. fan speed (rpm), temperature-dependent
2600
Control of case fans
✓
Temperature control for case fans
✓
Noise level data:
-
dB(A) at 20% load
13.6
dB(A) at 50% load
17.4
dB(A) at 100% load
34.9

Protection

OCP (over current protection)
✓
OVP (over voltage protection)
✓
UVP (under voltage protection)
✓
SCP (short circuit protection)
✓
OTP (over temperature protection)
✓
OPP (over power protection)
✓

Safety certification

CE
✓
CB
✓
TÜV
✓
Nemko (N)
-
Semko (S)
✓
Fimko (FI)
-
Demko (D)
-
FCC
✓
cRUus
-
cTUVus
✓
RCM (Australia)
✓
BSMI
✓
CU (Russia)
-

Eco / Efficiency

80PLUS certification
bronze
Efficiency (%) at 230V, 20% load
88
Efficiency (%) at 230V, 50% load
90
Efficiency (%) at 230V,100% load
88

Environmental directives

ENERGY STAR
6.0
ErP
✓
WEEE
✓
RoHS
✓

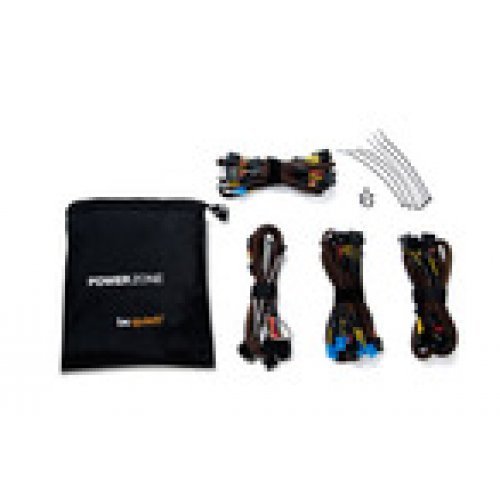

Cablemanagement / Connectors

Modular cable management
✓
Sleeved cables
✓
Cable length to mainboard (cm)
60
Cable length to first connector (cm)
55
Maximum cable length (cm)
115
All-in-one cable (SATA/PATA/FDD)
✓
No. of cables
7 + 3 fan
ATX-Mainboard (20+4 pin)
1
P8 (CPU)
-
P4+4 (CPU)
1
P4 (CPU)
-
PCI-E 6 pin (GPU)
-
PCI-E 6+2 pin (GPU)
4
PATA 4 pin
4
SATA 15-pin (HDD, Drives)
8
FDD (Floppy)
1
Mainboard Connector (PATA 4 pin)
-
External fan connectors
3

GPU compatibility

Multi-GPU ready
✓
NVIDIA SLI readyTM certified
✓
NVIDIA Hybrid ready
✓
AMD CrossFireX certified
✓
