|Модел:||Dark Base 700|
The be quiet! Dark Base 700 midi-tower case offers unrivaled flexibility with impeccable cooling and silence features.
The motherboard tray can be installed alongside the left panel in an inverted layout with an amended airflow. It is also removable for use as a bench table.
Very flexible installation options thanks to three repositionable single HDD slots. You have seven possibilities for installing the HDDs – two of these hidden behind the PSU shroud. The practical slot covers serve to hide any unused HDD slots and keep the inner workings neat and tidy. This enables you to create systems that are just as individual as you are yourself.
The case is equipped with an elegant, fully windowed side panel that is made of tinted and tempered glass. The eye-catching exterior RGB LED illumination on the front panel comes in six switchable colors and three modes. LED synchronization with your motherboard or RGB controller is also an option.
The two virtually inaudible SilentWings® 3 140mm PWM fans are equipped with a smooth-running 6-pole motor, durable fluid-dynamic bearing and an airflow-optimized fan blade. The frame has funnel-shaped air inlets that generate high air pressure. When set to Performance Mode the fans are able to achieve an impressive 1,600rpm.
The six PWM fan connectors are divided over two rails, and each is switchable between Silence and Performance Mode. This makes it possible to create two cooling zones that can be controlled by just the front panel switch. If you want all fans to run at the same speed, you can switch both channels to the same mode.
The Dark Base 700 creates an effective airflow with noise dampened vents that may be boosted by up to seven additional fans. There are also three areas provided for water coolers up to 360mm. A clever feature is the detachable top bracket on which you can install radiators and fans before mounting them as a complete unit into the case.
The PSU shroud offers you a variety of solutions – not just for hiding the PSU and to keep the system neat and tidy. The cover plates are separately detachable, making it possible to install fans at the bottom of the case or the top of the PSU shroud and leave enough space for a radiator in the front.

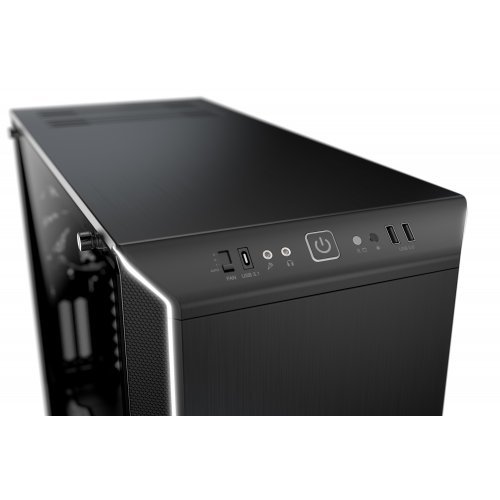

The front I/O port provides you with some convenient features for your high-end PC. A connector of USB 3.1 Type C Gen 2 is supported. The dual rail PWM fan controller is controlled by the slider control on the front panel, with four possible settings to determine the speed of your fans. It can be set to PWM hub or operate in a manual 3-step mode. There is also a switch on the front panel to control the exterior LEDs.
|Model||DARK BASE 700|
|PSU form factor||ATX PS/2|
|Motherboard compatibility||E-ATX (30.5 x 27.5cm), ATX, M-ATX, Mini-ITX|
|Case size excl. stands (L x W x H), (mm)||-|
|Installation of motherboards with backplate||✓|

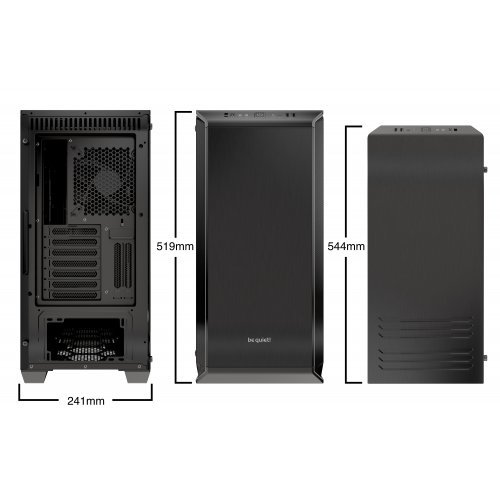

|Case size incl. stands (L x W x H), (mm)||544 x 241 x 519|
|Dimensions side panel window (L x W), (mm)||510 x 470 x 4|
|Color option||RBG LED front panel (white, red, green, blue, orange, purple)|
|USB 3.1 Gen 2 Type C||1|
|HD Audio I/O||1|
|Expansion slots||7 + 2|
|Fan mounting locations||9|
|Side panel window||4mm tempered glass|
|Front panel||ABS, Aluminium|
|HDD cages total||3|
|Cage capacity (HDDs)||1|
|Removable HDD cage||3|
|Relocatable HDD cage||3|
|Fan @ front||1x be quiet! SilentWings® 3 |140mm PWM|
|Fan @ rear||1x be quiet! SilentWings® 3 |140mm PWM|
|Dimensions (L x W x H), (mm)||140 x 140 x 25|
|Fan speed @ 12V (rpm)||1,600|
|Noise level @ 12V (dB(A))||28.1|
|Air flow @ 12V (cfm / m3/h)||77.57 / 131.79|
|Air pressure @ 12V (mm H2O)||2.16|
|Voltage range (V DC)||12|
|Input power (W)||1.68|
|Input current (A)||0.5|
|Lifespan (h / 25°C)||300,000|
|Fan controller||4-step fan controller (6x 4-pin)|
|Front (mm)||2x 140|
|Top (mm)||3x 140 / 3x 120|
|Bottom (mm)||1x 140/120|
|Side panel (mm)||-|
|PSU shroud||1x 140/120|
|Front (mm)||120, 140, 240, 280, 360|
|Top (mm)||120, 240, 360|
|Rear (mm)||1x 140/120mm|
|Max.construction height of CPU cooler unit (mm)||180|
|Airflow channel||Front, Top, Rear, Bottom|
|RGB LED illumination||external|
|LEDs synchronizable with RGB controller/motherboard||✓|
|Expandable RGB controller||✓|
|Maximum dimensions excl. bottom fan (mm)||285|
|Maximum dimensions incl. bottom fan (mm)||240|
|HDD cage (in height of graphics card) installed (mm)||286|
|HDD cage (in height of graphics card) removed (mm)||430|
|Top panel insulation mats||✓|
|Front panel insulation mats||✓|
|Side panel insulation mats||✓|
|Anti-vibration decoupled HDD||✓|
|Anti-vibration decoupled fan||✓|
|Anti-vibration decoupled PSU||✓|
|Anti-vibration decoupled motherboard-tray||✓|

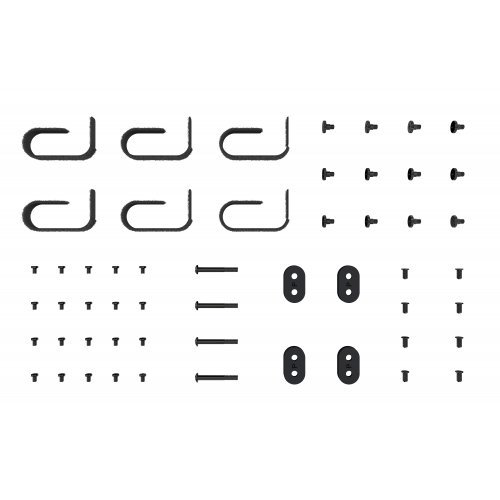

|Screw set (HDD/SSD/MB-mounting)||✓|
|Rubber rail (pcs.)||-|
|LCS bracket (pcs).||-|
|Upper fan bracket (pcs.)||-|
|HDD panel rubber grommet (pcs.)||-|
|LED strips (pcs.)||-|
|Cable ties (pcs.)||✓|
|Cable tie holder (pcs.)||-|
|International hotline / free of charge||✓ / DE, FR|
