No Compromise Silence and Performance
Compact PCs pose significant design challenges, not least of which is how to quietly cool a high-performance, overclocked CPU in a cramped space. be quiet!’s Dark Rock TF offers a solution to this challenge.

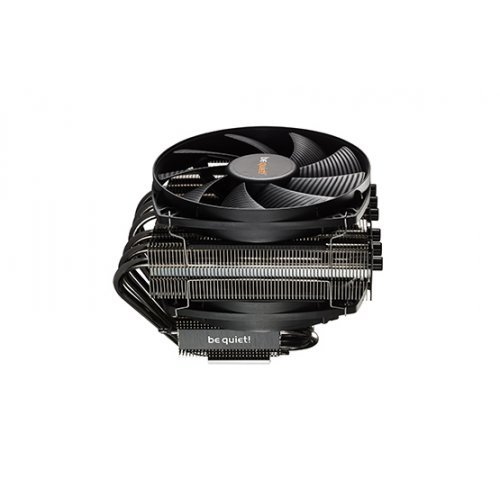

This top-flow cooler with two powerful heat sinks is an extension of the well-established successful be quiet! product series Dark Rock and a compact cooling beast. It is designed to bring the famous be quiet! silent technology into your PC. With the best performance-to-noise ratio available in the compact cooler category, it strikes the perfect balance between cooling and serenity with absolutely no compromise in silence and performance.
Feature Details
Extreme Cooling Performance
- Extremely high cooling capacity of 220W TDP supports even overclocked CPUs in compact PCs
- Two powerful nickel-plated aluminum heat sinks

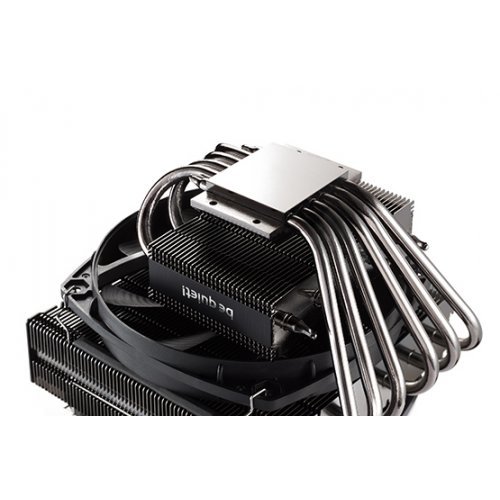

- Six high-performance 6mm heat pipes with aluminum caps carry heat to the optimal location on the cooling fins
- Top-flow layout enables ideal cooling not only for the CPU but also for surrounding components
Virtually Inaudible Operation
- Two SilentWings® 135mm PWM fans featuring:
- advanced fluid-dynamic bearing with copper core
- advanced six-pole motor for smoother operation and less turbulence
- nine airflow-optimized fan blades
- dynamically-balanced impeller
- Noise is a scant 26.7dB(A) even at 100% PWM function
- Single fan assembly and operation also supported, offering further space savings and even quieter operations
- Anti-vibration rubber inserts on the heat sink cooling fins further dampen noise
Product Conception, Design and Quality Control in Germany
- Dark nickel-plated finish with brushed aluminum covers
- Compatibility with all current Intel® and AMD™ sockets
- 3-years manufacturer’s warranty
- Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm (CET): +49 (0) 40-736 76 86 - 98
Main Specification
Overall dimensions without mounting material (L x W x H), (mm)
162.6 x 140 x 130.8
Socket compatibility
Intel: 775 / 115x / 1366 / LGA2011(-3) Square ILM
AMD: AM2(+) / AM3 (+) / FM1 / FM2(+)
Overall noise level (
dB(A)) @ 50/75/100% (rpm)
11.9 / 19.3 / 26.7
Heatsink specifications
Dimensions (L x W x H), (mm)
162.6 x 140 x 108.8
Number of fins
top: 62 ; bottom: 64
Heatpipe number / Diameter (mm)
6 / 6
Surface treatment
Aluminum / Dark nickle-plated
General fan specifications
Fan dimensions (mm)
135 x 135 x 22
Air flow @ 12V (cfm / m3/h)
67.8 / 113.8
Air pressure @ 12V (mm H2O)
1.85
Bearing type
Fluid Dynamic Bearing
Lifespan (h / 25°C)
300,000

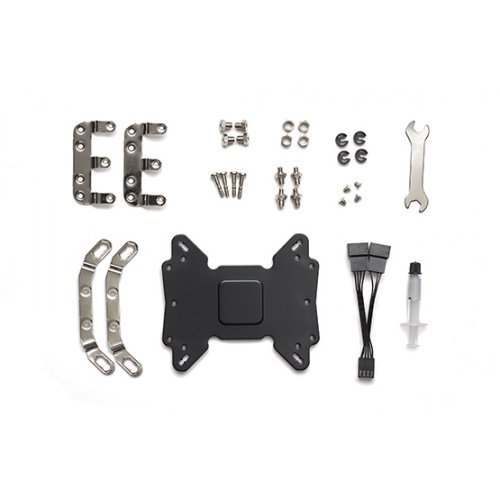

Accessories
Thermal grease (g)
Corning TC-5121 / 1
User manual languages
EN, DE, FR, PL, ES, RU
Service
International hotline / free of charge
✓ / DE, FR
Logistics data, RRP
Dimensions, package (L x W x H), (mm)
210 x 190 x 230
Gross weight, package (kg)
1.5
Pieces per packaging unit
12
Dimensions, shipping box (L x W x H), (mm)
595 x 435 x 450
Gross weight, shipping box (kg)
20
