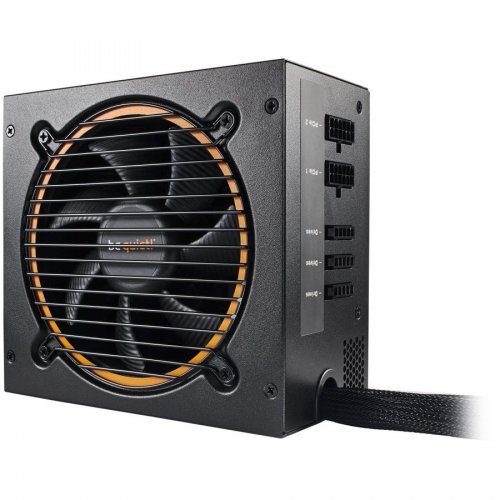

Захранващ блок Be Quiet! Pure Power 10 600W CM BN278, 80 Plus Silver

Продуктов код: 23953
Захранващ блок Be Quiet!
Захранващ блок Be Quiet!
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Be Quiet!
Модел:
Pure Power 10 600W CM
Партиден номер:
BN278
Гаранция:
36 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Be Quiet! Pure Power 10 600W CM

Exceptionally Quiet, Superior Reliability, Great Value

The Pure Power 10 PSU series stands for peerless dependability and best-in-class features. Whether you are assembling a very quiet system, upgrading an existing PC, building a multimedia or a multi-GPU gaming system, your build will benefit from this PSU series. It simply has the best combination of features, performance and quality at very popular price.

  • 600 Watts of continuous power and two 12V-rails ensure rock-solid voltage stability for powerful multi-GPU systems
  • 80PLUS® Silver certification and up to 91% power conversion efficiency
  • Exceptionally quiet operation is achieved by an array of careful enhancements, including the use of a silence-optimized 120mm be quiet! fan
  • Stable operation thanks to DC-to-DC power conversion technology
  • Modular cable management with high-quality flat cables for PCIe connectors and drives
  • Product conception, design and quality control in Germany





Applications

  • Gaming with multi-GPU capability
  • Silent PC builds
  • Quiet multimedia and home theater systems

Feature Details

Engineering

  • Two independent 12V-rails improve power signal stability
  • Active Clamp and Synchronous Rectifier (SR) technology produces very stable operation
  • DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
  • Four PCI express connectors for multi-GPU system configurations
  • Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads
  • Modular cable management simplifies component installation and reduces annoying clutter
  • Fixed 24-pin and P8 cables with high-quality single layer sleeve
  • Easy-to-use flat drives and PCIe cables offer more space for installation
  • All-in-one cable with convenient easy-plug HDD connector

Energy Efficiency

  • 80PLUS® Silver certification means very high operating efficiency for its class of up to 91%
  • High efficiency means cost savings, less wasted heat and an overall quieter operation
  • Standby drain of less than 0.11 watts
  • Meets Energy Star 6.0 guidelines
  • Fulfills ErP 2014 guidelines
  • Zero Load design supports Intel’s Deep Power Down C6/C7 mode

Exceptionally Quiet Operation

  • High-quality 120mm be quiet! fan is thermally controlled and optimally governed to strike the best balance between effective cooling and deep quietness
  • Airflow-optimized fan blades reduce turbulence, enabling a best-in-class quiet function with excellent airflow
  • High efficiency design produces low operating temperatures

Outstanding Service and Support

  • 3-year manufacturer's warranty
  • Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm CET: +49 (0) 40-736 76 86 – 98



Model
PURE POWER 10 | 600W CM

General Data

Continuous power (W)
600
Peak power (W)
650
Form factor ATX 12V
Version 2.4
Form factor EPS 12V
Version 2.92
Modular cable management
✓
Topology
Active Clamp + SR + DC/DC
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
8 / 5
PFC
active
Power factor at 100% load
>0.99
Compliant to Intel C6/C7
✓
Compliant to Intel C6 mode
✓
Power consumption in standby (W)
<0.09
Average life time (h / 25°C)
100.000
Operating temperature up to (°C)
40

Output

12V rails (multi-rail operation)
2
12V single rail operation
-
Overclocking key
-
+3.3V (A)
25
+5V (A)
18
+12V1 (A)
32
+12V2 (A)
28
+12V3 (A)
-
+12V4 (A)
-
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.3
+5Vsb (A)
3
Max. combined power 12V (W)
576
Max. combined power 3.3V + 5V (W)
140
Hold-up time (ms @ 100%)
24

Fan / Cooling technology

Fan type
exclusive be quiet! fan
+SilentWings
-
Motor technology
4-pole fan motor
Bearing technology
Rifle
Fan size (mm)
120
Max. fan speed (rpm), temperature-dependent
1,200
Temperature control for case fans
-
dB(A) at 20% load
11.2
dB(A) at 50% load
12.5
dB(A) at 100% load
20.3

Protection

OCP (over current protection)
✓
OVP (over voltage protection)
✓
UVP (under voltage protection)
✓
SCP (short circuit protection)
✓
OTP (over temperature protection)
✓
OPP (over power protection)
✓

Safety certification

CE
✓
CB
✓
TÜV
✓
Nemko (N)
-
Semko (S)
-
Fimko (FI)
-
Demko (D)
-
FCC
✓
cRUus
-
cTUVus
✓
RCM (Australia)
✓
BSMI
✓
CU (Russia)
✓

Eco / Efficiency

80PLUS certification
Silver
Efficiency (%) at 230V, 20% load
89.6
Efficiency (%) at 230V, 50% load
91.7
Efficiency (%) at 230V, 100% load
90.5

Environmental directives

ENERGY STAR
6.0
ErP
✓
WEEE
✓
RoHS
✓

Cablemanagement / Connectors

Modular cable management
✓
Fully modular
-
Sleeved cables
✓
Flat Cables
PCIe, drives
Cable length to mainboard (cm)
55
Cable length to first connector (cm)
50
Maximum cable length (cm)
95
All-in-one cable (SATA/PATA/FDD)
✓
No. of cables
7
ATX-Mainboard (20+4 pin)
1
P8 (CPU)
-
P4+4 (CPU)
1
P4 (CPU)
-
PCI-E 6 pin (GPU)
-
PCI-E 6+2 pin (GPU)
4
PATA 4 pin
3
SATA 15-pin (HDD, Drives)
6
FDD (Floppy)
1
Mainboard Connector (PATA 4 pin)
-
External fan connectors
-

GPU compatibility

Multi-GPU ready
✓

Casing

Dimensions without cable (L x W x D), (mm)
160 x 150 x 86
Weight (kg)
2.15
Color
black

Accessories

Thumb screws
-
Screws
✓
Velcro cable ties
✓
Cable ties
-
AC power cord (mm)
1.500
Box/Bag for PSU/Cables
-
User manual languages
EN, DE, FR, PL, ES, RU
OCK slot bracket with switch / OCK Jumper
-
SFX-to-ATX adapter bracket
-

Service

Warranty (Years)
3
Express replacement service in first year
-
International hotline / free of charge
✓ / DE, FR

Logistics Data, RRP

Range
Pure Power
Article number
BN278
EAN code
4260052185377
Dimensions, package (L x W x H), (mm)
260 x 202 x 98
