Be Quiet! Shadow Rock TF2, BK003

Продуктов код: 25479
Охлаждане за компютри Be Quiet!
Охлаждане за компютри > Be Quiet! Shadow Rock TF2 BK003 Охлаждане за компютри > Be Quiet! Shadow Rock TF2 BK003 Охлаждане за компютри > Be Quiet! Shadow Rock TF2 BK003 Охлаждане за компютри > Be Quiet! Shadow Rock TF2 BK003 Охлаждане за компютри > Be Quiet! Shadow Rock TF2 BK003 Охлаждане за компютри > Be Quiet! Shadow Rock TF2 BK003
Охлаждане за компютри Be Quiet!
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Be Quiet!
Модел:
Shadow Rock TF2
Партиден номер:
BK003
Гаранция:
36 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Видео (1)
  • Ревюта
  • Въпроси и отговори

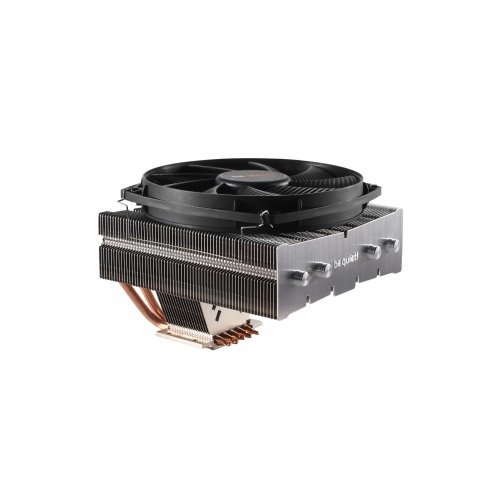

Be Quiet! Shadow Rock TF2

SHADOW ROCK TF 2

Compact Cooling, Significantly Quiet

Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.

  • Space-saving top-flow construction
  • Very high cooling capacity of 160W TDP
  • Direct connection of baseplate to cooling fins for fast heat transfer
  • Small, diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket
  • Silence-optimized 135mm be quiet! fan (max. 24.4dB(A)) with durable rifle-bearing technology
  • Five high-performance 6mm heat pipes
  • Compatibility with Intel® and AMDTM sockets
  • 3-year manufacturer’s warranty

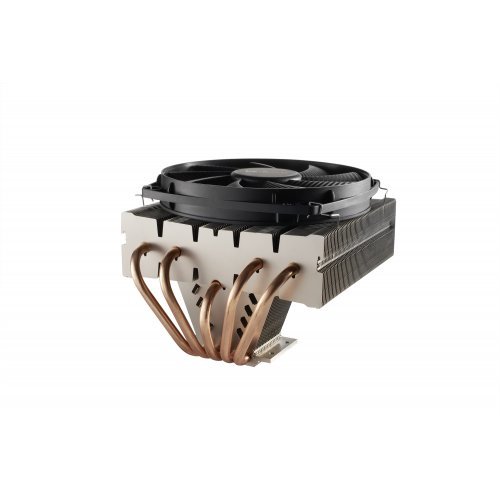

HIGH-PERFORMANCE HEATPIPES

Offering the system an impressive cooling performance

Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.





DIRECT CONNECTION OF BASE PLATE AND FINS

For highly effective cooling power

An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.

EXTREMELY SILENCE-OPTIMIZED OPERATION

Even at 100% fan speed the overall noise is merely 24.4dB(A)

Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the nine airflow-optimized fan blades and durable rifle-bearing technology.

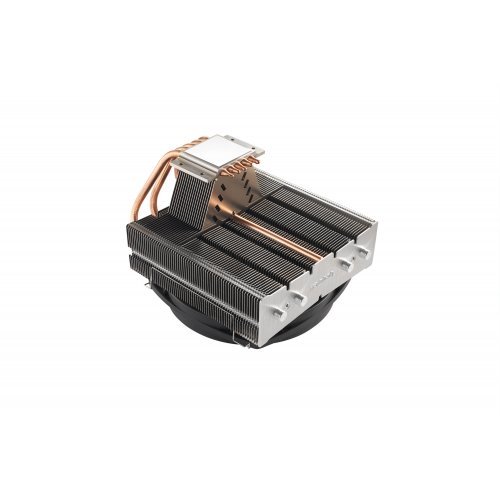

SMALL, DIAGONALLY ARRANGED FINS

Produce the perfect airflow

The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.





SPACE-SAVING TOP-FLOW DESIGN

Benefit from this highly functional concept

The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem.



General data

Model

Shadow Rock TF 2

Overall dimensions without mounting material (L x W x H), (mm)

137 x 165 x 112

Total weight (kg)

0.68

TDP (W)

160

Socket compatibility

Intel: LGA 775 / 115x / 1366 / 2011(-3) Square ILM / 2066
AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)

Backplate mounting

Fan model, number

1x silence-optimized be quiet! fan

Decoupled fan mounting

-

Overall noise level (dB(A)) @ 50/75/100% (rpm)

11.9 / 19.3 / 24.4



Heatsink specifications

Dimensions (L x W x H), (mm)

137 x 165 x 87

Number of fins

57

Fin material

Aluminum

Base material

Copper

CPU contact surface

CNC machined

Heatpipe number / Diameter (mm)

5, 6

Surface treatment

-

Fan specifications

Fan dimensions (mm)

135 x 135 x 22

+SilentWings

-

Speed @ 100% PWM (rpm)

1,400

Air flow @ 12V (cfm / m3/h)

67.8, 113.8

Air pressure @ 12V (mm H2O)

2.1

Bearing technology

Rifle

Motor technology

4-pole fan motor

Rated voltage (V)

12

Input current (A)

0.11

Input power (W)

1.32

Connector

4-pin PWM

Cable length (mm)

200

Lifespan (h / 25°C)

80,000

Accessories

Thermal grease (g)

- (already applied)

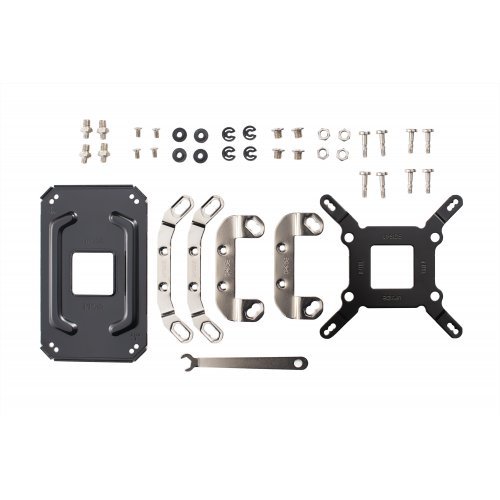

Backplate mounting set Intel & AMD

Y-Cable

-

User manual languages
