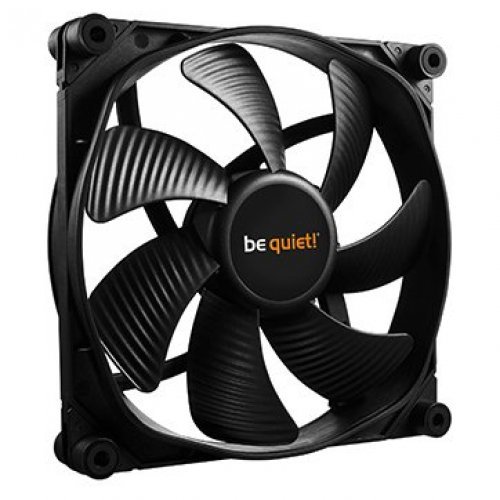

Be Quiet! SilentWings 3 BL067, 140mm PWM Fan

Продуктов код: 22115


Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Be Quiet!
Модел:
SilentWings 3
Партиден номер:
BL067
Гаранция:
36 месеца
Цена с включен ДДС:
53.29 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка за поръчки над 99.99лв. с ДДС

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за Be Quiet! SilentWings 3

  • Ревюта
  • Въпроси и отговори

No Compromise Silence and Performance

be quiet! SilentWings® fans stand for state-of-the-art technology, virtually inaudible operation and superior cooling. The third generation of this award-winning fan series offers unrivaled and uncompromising performance with a broad range of meticulous optimizations. They feature a smooth-running 6-pole motor, an advanced fluid-dynamic bearing, a unique airflow-optimized fan blade design and a fan frame with funnel-shaped air inlets.

The SilentWings® 3 140mm PWM model combines all of the above best-in-class features. It strikes the perfect balance between cooling and silence with a maximum of 15.5dB(A) and meets all the requirements to be a perfect choice for heat sinks, PC cases and radiators.



Feature Details


Virtually Inaudible, High-End Operation

  • Virtually inaudible operation at max. 15.5dB(A)
  • 6-pole fan motor with three phases giving very low power consumption and less vibration
  • Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours
  • Seven fan blades with optimized surface structures ensure excellent airflow
  • The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure
  • Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components
  • Advanced high quality IC motor controller reduces electrical noise


Advanced PWM function

  • Pulse width modulation (PWM) allows compatible 4-pin controllers (including those built into many motherboards) to intelligently vary the speed of the fan
  • With PWM your system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not


Product Conception, Design and Quality Control in Germany

  • The perfect choice for gaming and multimedia PCs, overclocked systems as well as for use with radiators
  • 3-year manufacturer's warranty
  • Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm CET:
    +49 (0) 40-736 76 86 – 98



Model
SILENT WINGS 3 | 140mm PWM

General Specs

Dimensions (mm)
140
Fan speed @ 12V (rpm)
1,000
Air flow @ 12V (cfm, m3/h)
59.5 / 101.09
Air pressure @ 12V (mm H2O)
1.08
Noise level @ 12V (dB(A))
15.5

Mechanical spec

Dimensions (mm)
140 x 140 x 25
Bearing technology
Motor technology
Weight incl. fixed cables (kg)
0.167
Push pin fixing
Screw fixing

Cables & Connectors

Connector
4-pin PWM
Cable length (mm)
500
Cable sleeve

Performance & Noise

Air flow @ 12V (cfm, m3/h)
59.5 / 101.09
Air pressure @ 12V (mm H2O)
1.08
Noise level @ 12V (dB(A))
15.5
Lifespan (h / 25°C)
300.000

Electrical specs

Rated voltage DC (V)
12
Operating voltage DC (V)
5 ~ 13.2
Current consumption (A)
0.06
Safety current (A)
0.3
Input power (W)
0.72

Accessories

3pin to 4pin 12V-connector
-
12V to 7V adapter
-
12V to 5V adapter
-
Screws
5
Push pins
5
Silica gel washer
5
Others
rubber & hard plastic mountings

Safety certification

Approvals
CE, RoHS, WEEE, RU, Tüv

Service

Warranty (Years)
3
International hotline / free of charge
✓ / DE, FR

Logistics Data, RRP

Range
SILENT WINGS
Article number
BL067
EAN code
4260052184271
Maße, Verpackung (L x B x H), (mm)
205.3 x 155.39 x 32.1
Gross weight, package (kg)
0.34
