Be Quiet! System Power 8 600W BN242, 80 Plus

Продуктов код: 14827
Захранващи блокове Be Quiet!
Захранващи блокове > Be Quiet! System Power 8 BN242 Захранващи блокове > Be Quiet! System Power 8 BN242 Захранващи блокове > Be Quiet! System Power 8 BN242
Захранващи блокове Be Quiet!
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Be Quiet!
Модел:
System Power 8
Партиден номер:
BN242
Гаранция:
36 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

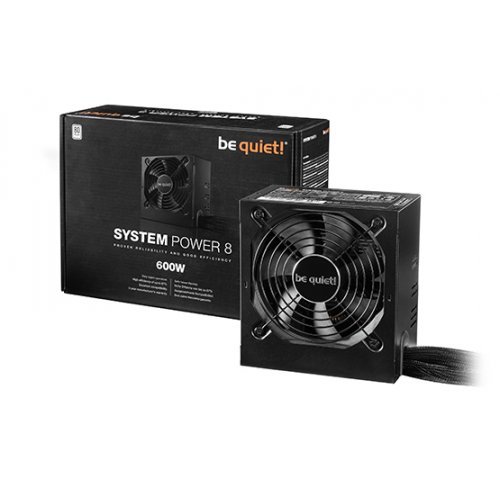

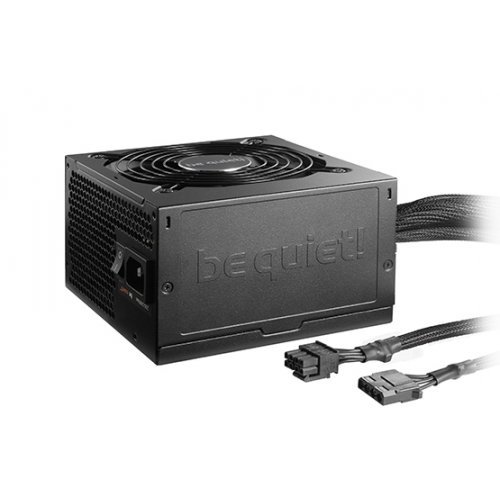

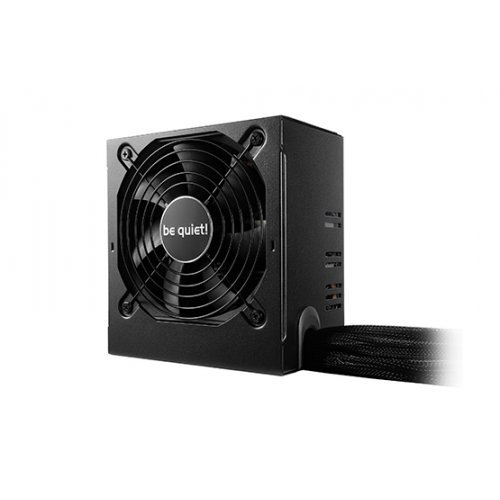

Be Quiet! System Power 8

Proven Reliability and Good Efficiency

Especially designed by be quiet! with the price-conscious PC builders in mind - the new be quiet! System Power 8 600W, featuring true be quiet! reliability with two 12V-rails and rock-solid voltages. The series is certified 80PLUS® efficient and able to support multiple GPUs with four PCIe connectors.

System Power 8‘s combination of power, quietness for its class and efficiency is far beyond ordinary, letting you build cost-effective and reliable systems - a key differentiator in these days of identical commodities.

  • 600W of continuous power and two 12V-rails ensure rock-solid voltage stability for powerful multi-GPU systems
  • 80PLUS® certification and up to 87% power conversion efficiency
  • Quiet operation for its class achieved by an array of careful optimizations, including the use of a quiet 120mm fan
  • Attractively sleeved cables simplify component installation, increase airflow and improve cooling
  • Product conception, design and quality control in Germany




cert

Applications

  • Office applications and entry-level gaming systems
  • Low-budget and quiet PC builds
  • Quiet multimedia and home theater systems





Feature Details

 Engineering

  • Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads, thus safeguarding your valuable components
  • Two independent 12V-rails improve power signal stability
  • High-quality sleeved cables simplify component installation, increase airflow and improve cooling
  • Four PCI express connectors for multi-GPU system configurations
  • Compatible with 230V AC power mains



Energy Efficiency

  • 80PLUS® certification means operating efficiency for its class of up to 87%
  • High efficiency means cost savings, reduced heat wastage and overall quieter operation
  • Standby drain of less than 0.13 watts
  • Meets Energy Star 6.0 guidelines
  • Fulfills ErP 2014 guidelines
  • Zero Load design supports Intel®’s Deep Power Down C6/C7 mode



Quiet Operation

  • High-quality 120mm fan is thermally controlled to strike the best balance between proper cooling and quietness
  • Efficient PSU design produces low operating temperatures



Outstanding Service and Support

  • 3-years manufacturer's warranty
  • Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm CET: +49 (0) 40-736 76 86 - 98

General

Model
SYSTEM POWER 8 | 600W

General Data

Continuous power (W)
600
Peak power (W)
-
Form factor ATX 12V
Version 2.4
Form factor EPS 12V
Version 2.92
Modular cable management
-
Topology
-
Voltage (Vac)
200 - 240
Frequency (Hz)
50
Input current (A)
6
PFC
active
Power factor at 100% load
>0.98
Compliant to Intel C6/C7
✓
Compliant to Intel C6 mode
✓
Power consumption in standby (W)
0.13
Average life time (h / 25°C)
100.000
Operating temperature up to (°C)
40

Output

12V rails (multi-rail operation)
2
12V single rail operation
-
Overclocking key
-
+3.3V (A)
24
+5V (A)
15
+12V1 (A)
28
+12V2 (A)
22
+12V3 (A)
-
+12V4 (A)
-
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.3
+5Vsb (A)
3
Max. combined power 12V (W)
576
Max. combined power 3.3V + 5V (W)
120
Hold-up time (ms @ 100%)
18ms (@75% load)

Fan / Cooling technology

Fan type
high-quality fan
+SilentWings
-
Motor technology
4-pole fan motor
Bearing technology
Sleeve
Fan size (mm)
120
Max. fan speed (rpm), temperature-dependent
2,100
Temperature control for case fans
-
dB(A) at 20% load
15
dB(A) at 50% load
17.5
dB(A) at 100% load
32.2

Protection

OCP (over current protection)
✓
OVP (over voltage protection)
✓
UVP (under voltage protection)
✓
SCP (short circuit protection)
✓
OTP (over temperature protection)
✓
OPP (over power protection)
✓

Safety certification

CE
✓
CB
✓
TÜV
✓
Nemko (N)
-
Semko (S)
-
Fimko (FI)
-
Demko (D)
-
FCC
-
cRUus
-
cTUVus
-
RCM (Australia)
✓
BSMI
-
CU (Russia)
✓

Eco / Efficiency

80PLUS certification
230V EU internal
Efficiency (%) at 230V, 20% load
86
Efficiency (%) at 230V, 50% load
87
Efficiency (%) at 230V, 100% load
83

Environmental directives

ENERGY STAR
6.0
ErP
✓
WEEE
✓
RoHS
✓

Cablemanagement / Connectors

Modular cable management
-
Sleeved cables
✓
Flat Cables
-
Cable length to mainboard (cm)
55
Cable length to first connector (cm)
35
Maximum cable length (cm)
91
All-in-one cable (SATA/PATA/FDD)
-
No. of cables
6
ATX-Mainboard (20+4 pin)
1
P8 (CPU)
-
P4+4 (CPU)
1
P4 (CPU)
-
PCI-E 6 pin (GPU)
-
PCI-E 6+2 pin (GPU)
4
PATA 4 pin
2
SATA 15-pin (HDD, Drives)
6
FDD (Floppy)
-
Mainboard Connector (PATA 4 pin)
-
External fan connectors
-

GPU compatibility

Multi-GPU ready
✓
NVIDIA SLI readyTM certified
-
AMD CrossFireX certified
-

Casing

Dimensions without cable (L x W x D), (mm)
140 x 150 x 86
Weight incl. fixed cables (kg)
1.90
Color
black

Accessories

Thumb screws
-
Screws
✓
Velcro cable ties
-
Cable ties
-
AC power cord (mm)
1.500
Box/Bag for PSU/Cables
-
User manual languages
EN, DE, FR, PL, ESP, RU
OCK slot bracket with switch / OCK Jumper
-

Service

Warranty (Years)
3
Express replacement service in first year
-
International hotline / free of charge
✓ / DE, FR

Logistics Data, RRP

Range
System Power
Article number
BN242
EAN code
4260052184370
Dimensions, package (L x W x H), (mm)
195x97x268
Gross weight, package (kg)
2.25
Pieces per packaging unit
6
Dimensions, shipping box (L x W x H), (mm)
556 x 311 x 215
Gross weight, shipping box (kg)
13.5
RRP (€)
72.90
