- Supports 9th & 8th Generation Intel® Core™ Processor
- Intel H310 single chip architecture
- Support Dual Channel DDR4 2666/2400/2133/1866 MHz
- Support HDMI 4K resolution
- Support GbE LAN
- Support USB 3.2 Gen1
Rear I/O:
1x PS/2 Mouse Port
1x PS/2 Keyboard Port
1x HDMI Port
1x VGA Port
1x LAN Port
4x USB 2.0 Port
2x USB 3.2(Gen1) Port
3x Audio Jack
Internal I/O:
4x SATA III Connector
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x COM Port Header
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | BIOSTAR |

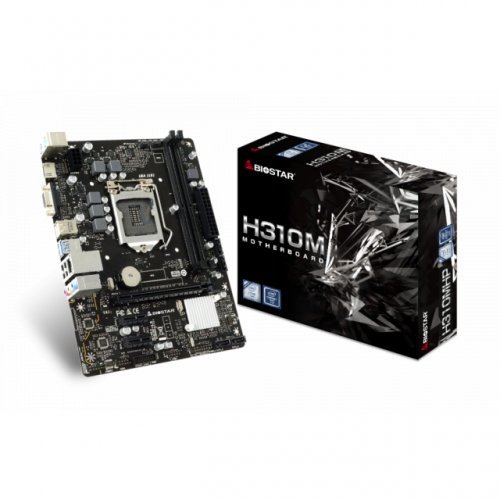

| МОДЕЛ | H310MHP |
| БАРКОД | 4712960682177 |
| CPU SOCKET | 1151 |
| ЧИПСЕТ | Intel H310 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | Intel Socket 1151 for 9th/8th Generation Core |
| ФОРМ ФАКТОР | Micro ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 32 GB |
| СЛОТОВЕ ПАМЕТ | 2 |
| ЧЕСТОТА ПАМЕТ | 2666, 2400, 2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | By CPU model |
| ВГРАДЕНО АУДИО | Realtek ALC887 |
| ВГРАДЕН LAN | Realtek RTL8111H |
| СЛОТOВЕ PCI-E X16 | 1 |
| СЛОТOВЕ PCI-E X1 | 2 |
| ИНТЕРФЕЙС SERIAL ATA | 4 x SATA3 6.0 Gb/s |
| USB 3.0 | 4 |
| USB 2.0 | 6 |
