Introduction

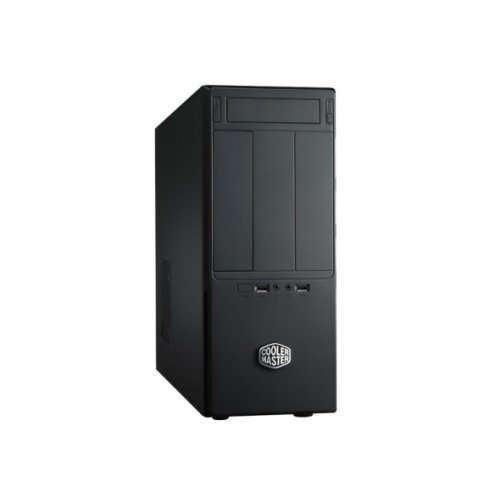

Elite 361 is a mini tower with modern and sleek design, which supports Micro-ATX and ATX motherboards in a compact enclosure. It also supports up to 5 HDDs, which fulfills users’ demand for expandability. With the rotatable CM logo and four rubber stands, the case can be placed vertically or horizontally as users wish. Elite 361 also provides superior ventilation with the top fan (120mm x 1) and adding fans on front (80mm x 1), rear (80mm x2), and side panel (120mm x 1). Additionally, the vents on front panel can conduct airflows to offer improved cooling performance for HDDs.
Features
- Special design for space management: can be placed vertically and horizontally with rubber stands
- Rotatable CM logo to present in different angles
- Supports Micro-ATX and ATX motherboards
- Front I/O panel for easy access
- HDD compatibility up to 5 drives and 7 expansion slots provide increased expandability
- Air vent on front panel for improved cooling performance of HDDs
Specifications
| Available Color | Black (interior non-coating) |
| Materials | SECC, Plastic |
| Dimension (W x H x D) | 150 x 368 x 464 mm / 5.9 x 14.4 x 18.2 inch |
| Weight | 4.8 kg / 10.6 lbs |
| M/B Type | Micro-ATX, ATX |
| 5.25" Drive Bays | 1 (exposed) |
| 3.5" Drive Bays | 1 (exposed), 4 (hidden) |
| I/O Panel | USB 2.0 x 2, Mic x 1, Audio x 1 (supports AC97 / Audio) |
| Expansion Slots | 7 |
| Cooling System | Top: 120mm fan x 1, or 80/90mm fan x 1(optional) Front: 80mm fan x 1 (optional) Rear: 80mm fan x 2 (optional) Side: 80/90/120mm fan x 1 (optional) |
| Power Supply Type | PS2 |
| Maximum Compatibility | VGA card length (w/HDD cage) : 227 mm / 8.9 inch VGA card length (w/o HDD cage): 312 mm / 12.3 inch CPU cooler height: 122 mm / 4.8 inch |
