Компютърна кутия Cougar QBX

Компютърна кутия Cougar QBX

Name: Компютърна кутия Cougar QBX
Brand: Cougar
SKU: QBX
Availability: OutOfStock

Продуктов код: 27065

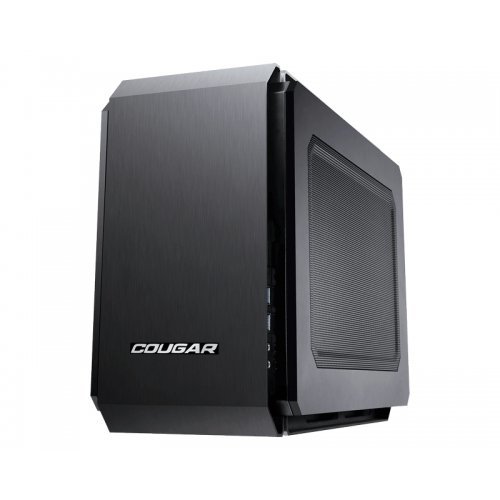

Компютърна кутия Cougar QBX CG108M0200002 (снимка 1)

Компютърна кутия Cougar QBX CG108M0200002

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Cougar

Модел:

QBX

Партиден номер:

CG108M0200002

Гаранция:

24 месеца

Захранващ блок:

НЕ

Form Factor:

Mini ITX

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Cougar QBX

QBX

Size Does Matter

The most advanced compact case of the market is here. COUGAR QBX comes here to conquer the world with three big weapons within its compact body: Its dimensions, its expansion potential and its unrivaled cooling.

Features

COMPACT

QBX's 178 x 291 x 384 mm / 7.01 x 11.46 x 15.12 (inch) make it a highly compact case.
Gamers no longer need enormous desks with lots of space to install high-end gaming components
in order to enjoy new generation games.

Expandible: Powerful Graphics

The newest FPS ?
Sure.
New generation 4K videogames?
Of course.
With QBX KAZE, you gain access to new generation games in all their glory.

Maximum graphics cards length 350mm
Support for PS2 ATX Power Supply Units

Expandible : Massive Storage + ODD

Up to 5 Storage Drives (1 x 3.5¨ HDD + 4 x 2.5¨ SSD/HDD) Access to CD, DVD, Blu-ray and other Disk Formats. Nobody likes those situations in which you need to uninstall a game to be able to install another one.
To prevent this, QBX supports enormous amounts of storage so that you can put all your games, music, movies and whatever you want inside it.

The Best Cooling of Its Class

QBX comes with the best cooling of any case of its class. With a maximum of 7 fans (from 80mm to 120mm) and compatibility with up to 240mm radiators for water cooling solutions, QBX's pro-cooling design (including an independent power supply air flow) provides the best defense against overheating.

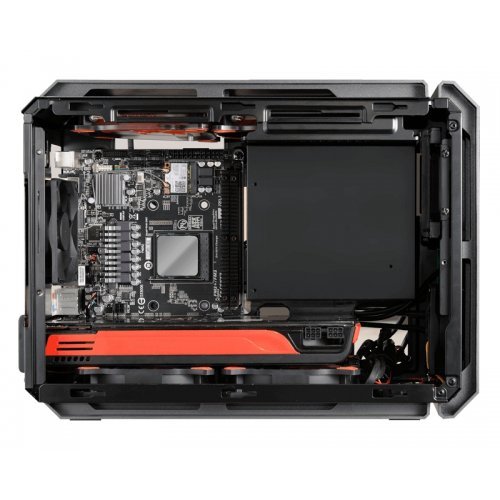

LEFT VIEW

Optimum ventilation solution

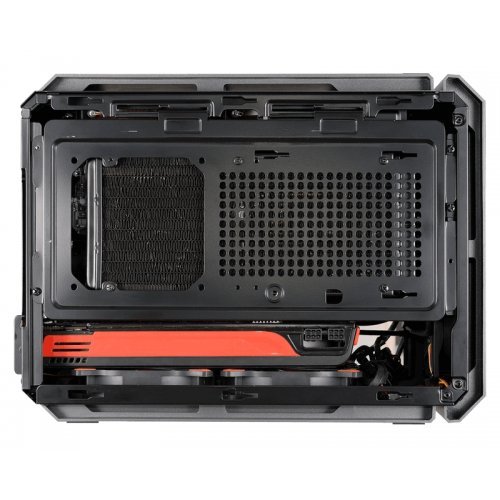

RIGHT VIEW

Independent power supply cooling solution

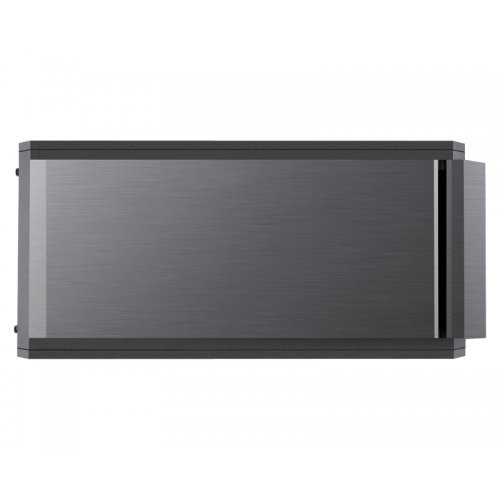

TOP VIEW

Support for 2 x 120mm fan on the top

Model Name		QBX
Case Form Factor		Mini-ITX Case
Motherboard Type		Mini-ITX
Dimension (WxHxD)		7.01 x 11.46 x 15.12 (inch) 178 x 291 x 384 (mm)
Optical Disk Drive (ODD) Type		Supports ONLY Slot Loading Slim ODD
3.5" Internal Drive Bay (HDD)		1
2.5" Drive Bay (HDD/SSD)		4
Expansion Slots (For example for Graphics Card)		2
I/O Panel		2 x USB3.0 / HD audio
Cooling System Max. Supported Installation: 7 Fans	Front	80mm Fan x 1 (optional)
	Top	120mm Fans x 2 (optional)
	Rear	90mm Fan x 1 (pre-installed)
	Bottom	120mm Fans x 2 (optional)
	Left Side	120mm Fan x 1 or 240mm radiator with a single 120mm fan or 120mm radiator with a 120mm fan
Cable management system		Cable feedthrough on the motherboard tray for easily routing and hiding cables.
Fan Filter (Cleanable)		1 x Bottom Filter (pre-installed and removable) 1 x Front Filter (included, installed by the user)
Water cooling support		Left Side：240mm radiator with a single 120mm fan or Left Side：120mm radiator with a 120mm fan
Max. Graphic card Length		350mm (Support for High End Graphics Cards)
Max. CPU Cooler Height		105mm
PSU		PS2 ATX Type (up to 140mm long)
Compatible PSU		supports the following COUGAR PSU series: A Series and STX Series.

IMPORTANT

QBX's ultra-compact format requires a Power Supply Unit that conforms to certain format standards. Please pay attention to a Power Supply Unit's AC Socket and Plug's orientation and confirm it corresponds to one of the formats defined in the pictures below.
