Захранващ блок Cougar VTE 500W, 80 Plus Bronze

Захранващ блок Cougar VTE 500W, 80 Plus Bronze

Name: Захранващ блок Cougar VTE 500W, 80 Plus Bronze
Brand: Cougar
SKU: VTE 500
Availability: OutOfStock

Продуктов код: 24916

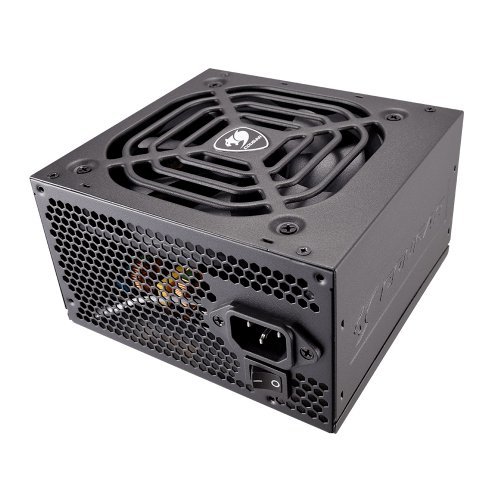

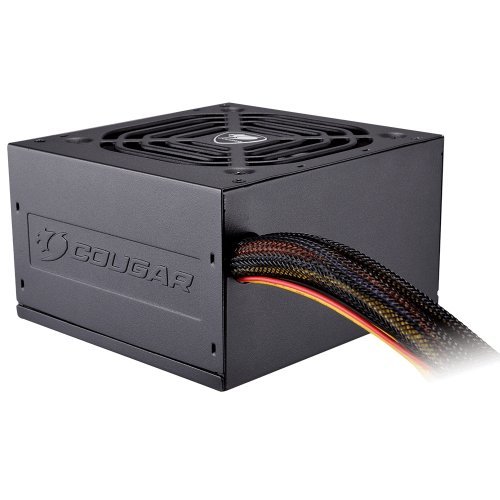

Захранващ блок Cougar VTE 500 CG31VE0500003P (снимка 1)

Захранващ блок Cougar VTE 500 CG31VE0500003P

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Cougar

Модел:

VTE 500

Партиден номер:

CG31VE0500003P

Гаранция:

24 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Cougar VTE 500

Extremely High Efficiency

Up to 87% of efficiency.

Ultra Stable Voltage Outputs

DC to DC technology in VTE series, in which the 3.3V are built out of the 12V Rail, provides highest efficiency, most stable performance, and perfect regulation within ±3% at regular DC outputs.

According to Design Guide for Power Supply from Intel, the DC output voltages are required to remain within the ±5% regulation ranges in 3.3V, 5V and 12V rails.

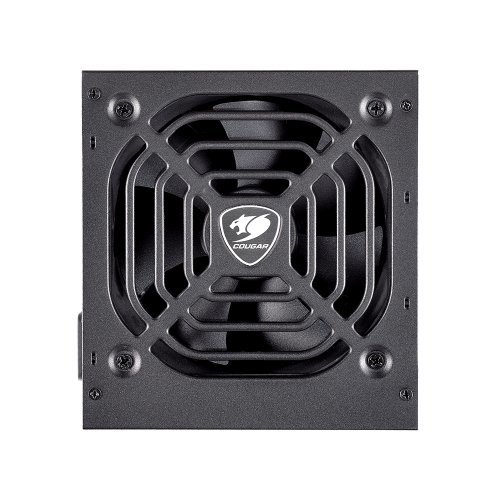

120mm Ultra-Silent Fan

Ultra-quiet & Temperature-controlled 120mm fan. Better power output with thermal control. Extremely low noise level, fan speed automatically regulated according to the temperature.

Massive Single +12V DC Output

Extreme performance for powerful graphic systems

Comparison based on VTE600’s performance data.

Features

Extremely High Efficiency

Up to 87% of efficiency
Ultra-Stable Voltage Output

3.3V DC-DC technology for enhanced voltage ability

105°C Japanese Standby Capacitor

Increase the PSU life-span
Compatible With the Latest PC-Technology

Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms

Ultra-Quiet & Temperature-Controlled 120mm Fan

Extremely low noise level, equipped with a large and ultra-quiet 120mm fan
Integrated Air Inlet Design

Optimal air-dynamical design, lead to more silent operation

Massive Single 12V DC Output

Extreme stability for powerful graphic systems
Support Multi-GPU Technology

Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector.

Active Power Factor Correction (Active PFC)

PF value up to 99%, provides clean and reliable power
Full Protections With OCP, SCP, OVP, UVP, OPP

Specifications

Model Name	AC Input	DC output
Model Name	AC Input	+3.3V	+5V	+12V	-12V	+5Vsb	Total
VTE400 CGR BS-400	100-240V 50-60Hz 6.5-4A	16A	18A	30A	0.3A	2.5A	400W
VTE400 CGR BS-400	100-240V 50-60Hz 6.5-4A	120W		360W	0.3A	2.5A	400W
VTE500 CGR BS-500	100-240V 50-60Hz 10-6A	16A	18A	37.5A	0.3A	2.5A	500W
VTE500 CGR BS-500		135W		450W	0.3A	2.5A	500W
VTE600 CGR BS-600		16A	20A	45A	0.3A	2.5A	600W
VTE600 CGR BS-600		150W		540W	0.3A	2.5A	600W

Connector	Main	CPU	Peripherals	S-ATA	PCI-E
Pin	24(20+4) Pins	8(4+4) Pins 8 Pins	4 Pins	5 Pins	8(6+2) Pins
VTE400	1	1	2	4	1
VTE500	1	1	2	5	2
VTE600	1	1	2	6	2

Protection

OCP (Overcurrent protection)

If the current on a single line is higher than indicated, the PSU automatically switches off.
UVP (Under voltage protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OVP (Over voltage protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
SCP (Short-circuit protection)

In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system components.
OPP (Over power protection)

If the system is oversized and requires more power from the PSU than it can perform, this protection function is activated.
