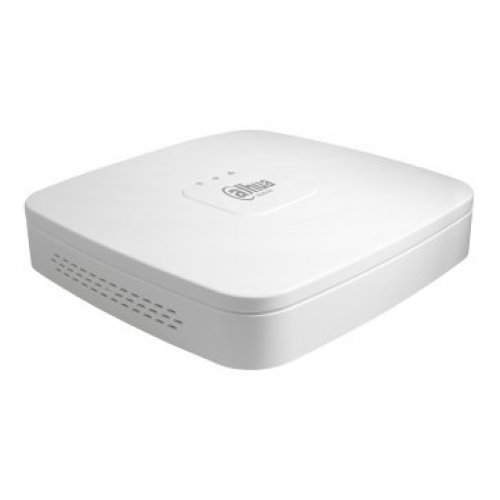

Dahua DH-NVR2104-P-S2, 4-channel

Name: Dahua DH-NVR2104-P-S2, 4-channel
Brand: Dahua
SKU: DH-NVR2104-P-S2
Availability: OutOfStock

Продуктов код: 21040

Мрежови/IP видео рекордери NVR > Dahua DH-NVR2104-P-S2 (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Dahua

Модел:

DH-NVR2104-P-S2

Партиден номер:

Гаранция:

24 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Dahua DH-NVR2104-P-S2

Dahua Name Rule V.20220615 Datasheet Dahua ConfigTool V4.08.0

Dahua DH-NVR2104-P-S2, 4-channel, 4xPoE, H.264+/H.264, MJPEG,1xSATA,2xUSB, 1xVGA, 1xHDMI,1xAudio, support ,CMS/Web viewer,DC48V,1.25A, 4W, PoE 50W max, Without HDD

Specifications
Device Type:	Network Video Recorder
Form Factor:	Desktop/Rack-mount
Standard Rack Height:	1 U
Built-in Devices:	4 PoE/PoE+ Ports
External Colour:	Black
Audio/Video Input
Audio Input Channels Quantity:	1
Video Input Channels Quantity:	4
Supported Resolutions:	1024x768 1280x1024 1280x720 1920x1080
Audio/Video Output
Min. Video Bit Rate:	16 Kbps
Max. Video Bit Rate:	20 Mbps
Audio Output Channels Quantity:	1
Network
Networking Form Factor:	Integrated
LAN:	Fast Ethernet
Network/Transport Protocol:	IPv4 TCP/IP UDP HTTP IPv6 DHCP RTSP NTP DNS DDNS
Supports Remote Connections:	128
Storage
Provides Data Channel:	SATA III
Supports Number of Devices:	1
Interface Provided
LAN:	5 (RJ-45)
USB2.0:	2 (4-pin USB (type A))
HDMI:	1 (HDMI (Type A))
VGA:	1 (15-pin DB)
Audio Interface:	1 (RCA)
Miscellaneous
Included Accessories:	Power Adapter
Package Type:	Retail
Certifications:	CE, FCC
Power
Power Adapter:	AC 100-240 V, 50/60 Hz, External Output Voltage: DC 48 V
Environment
Maximum Operating Ambient Temperature:	55 °C
Minimum Operating Ambient Temperature:	-10 °C
Maximum Non-Operating Ambient Temperature:	70 °C
Minimum Non-Operating Ambient Temperature:	-20 °C

NVR2104-P-S2

4 Channel Smart 1U 4PoE Lite Network Video Recorder

>H.264+/H.264 codec decoding
>Max 80Mbps incoming bandwidth
>Up to 6Mp resolution preview&playback
>HDMI/VGA simultaneous video output
>3D intelligent positioning with Dahua PTZ camera

System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Audio and Video
IP Camera Input	4 Channel
Two-way Talk	1 Channel Input, 1 Channel Output, RCA
Display
Interface	1 HDMI, 1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	1/4
OSD	Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression	H.264+/H.264
Resolution	6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Record Rate	80Mbps
Bit Rate	16Kbps ~ 20Mbps Per Channel
Record Mode	Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm input	N/A
Relay Output	N/A
Playback and Backup
Sync Playback	1/4
Search Mode	Time /Date, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network

Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Network
Interface	1 RJ-45 port (10/100Mbps)
Ethernet Port	1 Independent 100Mbps Ethernet Port
PoE	4 ports (IEEE802.3at/af)
Network Function	HTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface	N/A
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.4, CGI Conformant
Storage
Internal HDD	1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode	Single
eSATA	N/A
Auxiliary Interface
USB	2 ports (2 Rear USB2.0)
RS232	N/A
RS485	N/A
Electrical
Power Supply	Single, DC48V/1.25A
Power Consumption	<4W (without HDD)
Environmental
Operating Conditions	-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions	-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions(W×D×H)	Smart 1U, 204.6mm×204.6mm×45.6mm (8.1" x 8.1" x 1.8")
Net Weight	0.45kg (0.99 lb) (without HDD
Gross Weight	1.5kg(3.31 lb)(without HDD)
Certifications
CE	EN55032, EN55024, EN50130-4, EN60950-1
FCC	Part 15 Subpart B, ANSI C63.4-2014
