DeepCool DA700N, 700W, 80 Plus Bronze

Продуктов код: 21365

Захранващ блок DeepCool DA700N, 700W, 80 Plus Bronze (умалена снимка 1) Захранващ блок DeepCool DA700N, 700W, 80 Plus Bronze (умалена снимка 2) Захранващ блок DeepCool DA700N, 700W, 80 Plus Bronze (умалена снимка 3) Захранващ блок DeepCool DA700N, 700W, 80 Plus Bronze (умалена снимка 4) Захранващ блок DeepCool DA700N, 700W, 80 Plus Bronze (умалена снимка 5) Захранващ блок DeepCool DA700N, 700W, 80 Plus Bronze (умалена снимка 6) Захранващ блок DeepCool DA700N, 700W, 80 Plus Bronze (умалена снимка 7) Захранващ блок DeepCool DA700N, 700W, 80 Plus Bronze (умалена снимка 8)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
DeepCool
Модел:
DA700N
Партиден номер:
DP-BZ-DA700N
Гаранция:
36 месеца
Цена с включен ДДС:
115.79 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за DeepCool DA700N

  • Ревюта
  • Въпроси и отговори

Description


DA700 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%.Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.

80PLUS BRONZE

80PLUS Bronze certified provide high energy efficiency up to 85%.  Click here to view the certification.

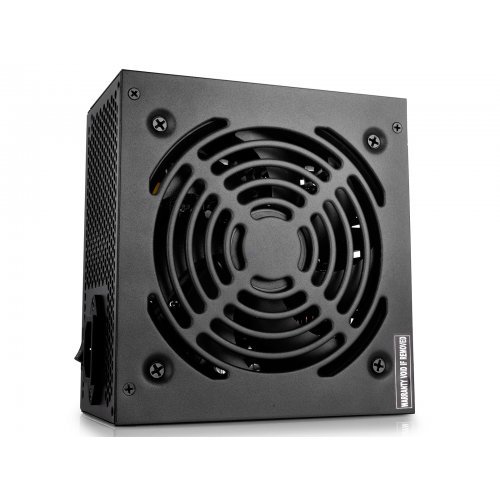

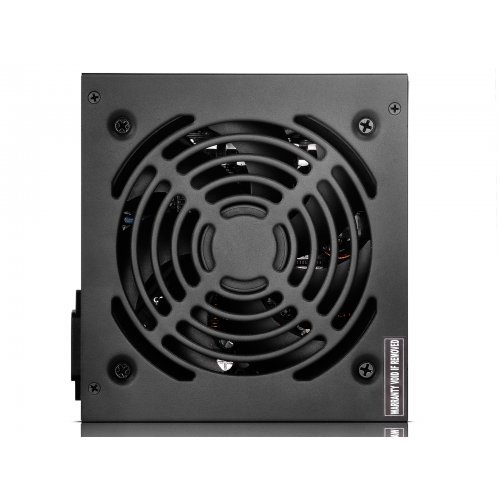

Silent and High Performance Fan

120mm silent fan with temperature controlfunction to provide incredible performance-noise ratio.

Longer Cable Design

The longer cable design supports cable management perfectly.

Voltage Regulation



Features

Compliant Intel ATX12V v 2.31
The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%
80 PLUS® Bronze certified — up to 85% efficiency
120mm silent fan with temperature control function
The longer cable design supports cable management perfectly
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset,  consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield™ —OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs
High reliability with an MTBF of at least 100,000 hours of use
DC to DC design, make it more stable, stronger and higher efficiency

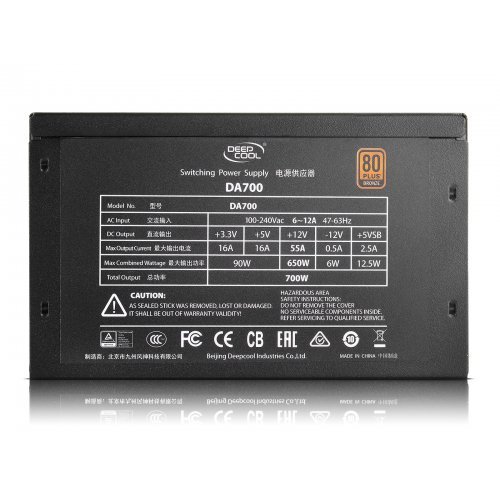

Output

AC INPUT VOLTAGE CURRENT FREQUENCY
100-240V 6-12A 50/60Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
CURRENT(Max) 22A 18A 54A 0.3A 2.5A
OUTPUT(Max) 90W 650W 6W 12.5W
TOTAL OUTPUT 700W





Spec

Technical Spec
Model DA700
Type ATX 12V V2.31
Certifications 80PLUS Bronze
Dimension 150×140×86mm (W x L x H)
Output Capacity 700W
Input Voltage 100~240V
Input Current 10A
Input Frequency Range 47~63Hz
Fan Size 120mm Silent Fan
PFC Active PFC (>0.99)
Power Good Signal 100-500ms
Hold Up Time  >16ms
Efficiency 85% Under Typical Load
Protection  OVP / UVP / SCP / OPP / OTP
Operation Temperature 0~40°C
Regulatory CE / FCC / CCC / CB / EAC / TUV
MTBF 100,000 Hours
