PSU Protective Approaches
Bottom located PSU for better
space management.
Ground-lifted design for better air dynamic and cooling performance of
PSU fan's air intake.

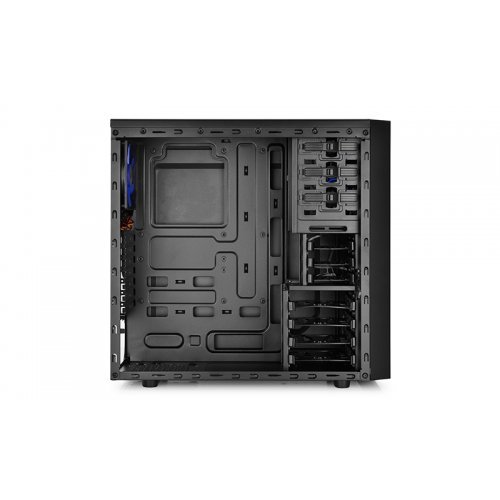

Backplate Cable Installation
Multiple channels for supreme cable
management.
Pre-installed one DC fan on the rear
Dust-filter added at the top panel

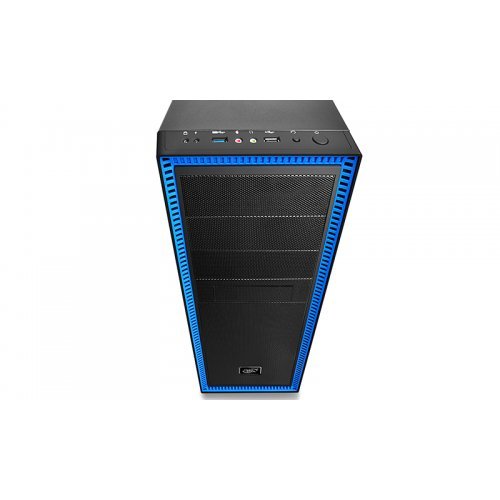

one USB 3.0 + one USB 2.0 Ports
Fully black painted interior

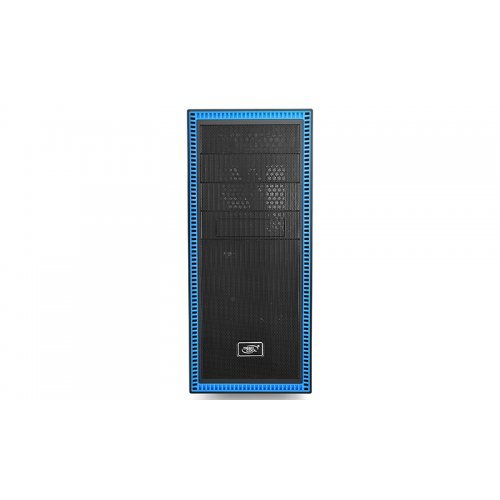

Patented air intake channel on the perimeter of the front panel
Fully metal mesh design for the most cooling
Enough room for long VGA card installation
Rail slide HDD design for HDD easy installation
Tool free installation design for ODD/HDD
High quality rubberized coating for aesthetics

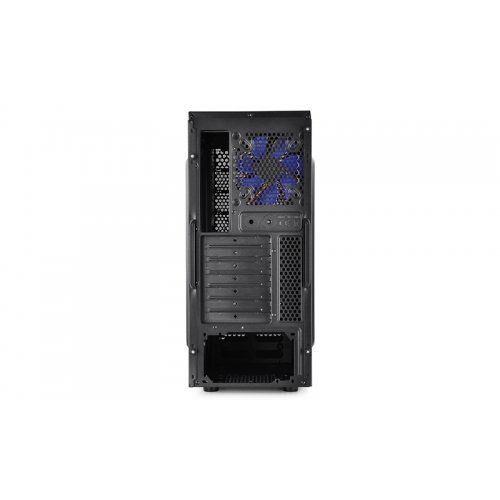

2 water cooling grommets on the rear
Wide CPU cut out for CPU cooler mounting
Bottom loaded PSU for effective cooling and large inner space
Support cable management
Support 120mm Liquid Cooler installation at rear
Motherboards |
ATX/MINI ATX/MICRO ATX/MINI-ITX |
Materials |
SPCC+PLASTIC+RUBBER COATING(Panel thickness: 0.7mm) |
Dimension (LxWxH) |
472*210*454mm |
Net Weight |
5.1kg |
5.25" Drive Bays |
2 (all tool-free installation) |
3.5" Drive Bays |
4 (all tool-free installation) |
2.5" Drive Bays |
3 (all tool-free installation) |
I/O Panel |
1×USB3.0/1×USB2.0/Audio×1/Mic×1 |
Expansion Slots |
7 |
Cooling Fans |
Included: Rear: 1×120mm DC fan; Optional: Front: 1×120mm; Top: 2×120mm; Side: 2×80/90/120mm
|
Power Supply Type |
ATX PS2 |
CPU Cooler Compatibility |
165mm |
VGA Compatibility |
310mm |
