Place of Origin: |
China (Mainland)
|
Brand Name: |
TIANMA
|
Model Number: |
TM070DDH07
|
Type: |
TFT
|
backlight: |
WLED
|
resolution: |
1024(RGB) x 600
|
brightness: |
250cd/m2
|
certificate: |
RoHS
|
lcd panel size: |
7.0 inch
|
contrast ratio: |
500:1
|
view angle: |
R/L/U/D 75/75/70/75(Deg)
|
electrical interface: |
LVDS (1ch, 6/8-bit)
|
display mode: |
TN
|
response: |
20ms
|

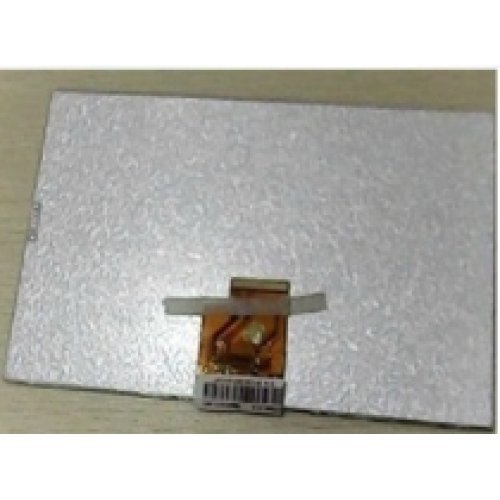

TM070DDH07
7 inch TFT type LCD
Anti-Glare surface
1024x600
wide aspect ratio
Appliation: widely used in tablet, MID UMPC, MP4 PMP ( Portable Media Player)
Module number | TM070DDH07 |
Resolution | 1024(RGB) x 600 |
Pixel Pitch | 0.150 (H) x 0.150(V) (mm) |
Active Area | 153.06 (W) x 90.0 (H) (mm) |
View angle | R/L/U/D 75/75/70/75(Deg) |
Mode | TN |
LCD Surface | Anti-Glare |
Number of Colors | 262K/16.7M |
Electrical Interface | LVDS (1ch, 6/8-bit) |
Brightness | 250cd/m2 |
Contrast ratio | 500:1 |
Outline dimension | 165.75x 105.39 x 3.40(mm) |
Backlight | WLED |
Supply Voltage (V) | 3.3V |
Response time | 20(ms)(Typ.) |
Operate temperature | -20-70 (°C) |
Storage temperature | -30-80 (°C) |
