Дънна платка ASRock 970 Extreme4, AMD AM3+

Дънна платка ASRock 970 Extreme4, AMD AM3+

Name: Дънна платка ASRock 970 Extreme4, AMD AM3+
Brand: ASRock
SKU: 970 Extreme4
Availability: OutOfStock

Продуктов код: 1026

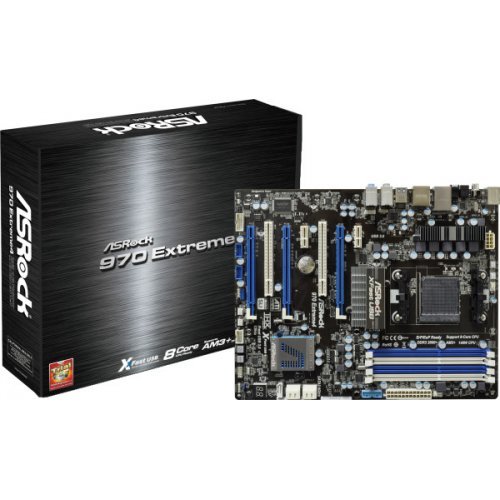

Дънна платка ASRock 970 Extreme4 (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

970 Extreme4

Партиден номер:

Чипсет:

AMD 970

Брой слотове за памет:

RAM - поколение:

DDR3

Socket:

AMD AM3+

Form Factor:

ATX

Видео изходи:

не поддържа самостоятелно вградено видео

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

ASRock 970 Extreme4

ASROCK 970 Extreme4

• CPU
Support for Socket AM3+ processors
Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
Supports 8-Core CPU
Supports UCC feature (Unlock CPU Core)
V4 + 1 Power Phase Design
Supports CPU up to 140W
Supports AMD's Cool 'n' Quiet Technology
FSB 2600 MHz (5.2 GT/s)
Supports Untied Overclocking Technology
Supports Hyper-Transport 3.0 (HT 3.0) Technology

• Chipset
Northbridge: AMD 970
Southbridge: AMD SB950

• Memory
Dual Channel DDR3 memory technology
4 x DDR3 DIMM slots
Supports DDR3 2100(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory
Max. capacity of system memory: 32GB

• VGA
-

• Expansion Slots
3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4), or dual at x8 (PCIE2) / x8 (PCIE4) ; PCIE5: x4 mode)
2 x PCI Express 2.0 x1 slots
2 x PCI slots
Supports AMD® Quad CrossFireX™ , 3-Way CrossFireX™ and CrossFireX™
Supports NVIDIA® SLI™

• Connectors
5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and"Hot Plug" functions
1 x IR header
1 x CIR header
1 x COM port header
1 x IEEE 1394 header
1 x HDMI_SPDIF header
1 x Power LED header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
3 x USB 2.0 headers (support 6 USB 2.0 ports)
1 x USB 3.0 header (supports 2 USB 3.0 ports)
1 x Dr. Debug (7-Segment Debug LED)

• Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Premium Blu-ray audio support
Supports THX TruStudio™

• LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111E
Supports Wake-On-LAN
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

• Rear Panel I/O Ports
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Coaxial SPDIF Out Port
1 x Optical SPDIF Out Port
4 x Ready-to-Use USB 2.0 Ports
1 x eSATA3 Connector
2 x Ready-to-Use USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x IEEE 1394 Port
1 x Clear CMOS Switch with LED
HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

• BIOS
32Mb AMI UEFI Legal BIOS with GUI support
Supports"Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
CPU, VCCM, NB, SB Voltage Multi-adjustment

• Form Factor
ATX

• Dimensions
30.5 cm x 24.4 cm

• Package
Box
