Дънна платка ASRock B85M Pro3

Дънна платка ASRock B85M Pro3

Name: Дънна платка ASRock B85M Pro3
Brand: ASRock
SKU: B85M Pro3
Availability: OutOfStock

Продуктов код: 7183

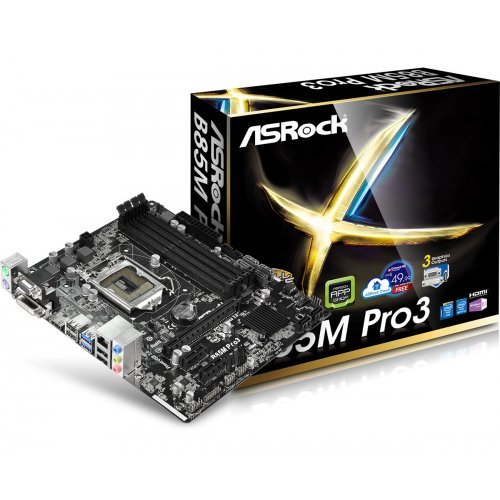

Дънна платка ASRock B85M Pro3 (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

B85M Pro3

Партиден номер:

Гаранция:

36 месеца

Брой слотове за памет:

RAM - поколение:

DDR3

Socket:

Intel LGA1150

Form Factor:

mATX

Видео изходи:

D-Sub(VGA), DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

ASRock B85M Pro3

General
Unique Feature	ASRock Full Spike Protection ASRock Cloud ASRock APP Shop
CPU	- Supports New 4 ^th and 4 ^th Generation Intel ^® Core™ i7/i5/i3/Xeon ^® /Pentium ^® /Celeron ^® Processors (Socket 1150) - Supports Intel ^® Turbo Boost 2.0 Technology
Chipset	- Intel ^® B85
Memory	- Dual Channel DDR3 Memory Technology - 4 x DDR3 DIMM Slots - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB * - Supports Intel ^® Extreme Memory Profile (XMP) 1.3 / 1.2 * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ^® 32-bit OS. For Windows ^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 32Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 support - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment
Audio, Video and Networking
Graphics	- Supports Intel ^® HD Graphics Built-in Visuals : Intel ^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel ^® InTru™ 3D, Intel ^® Clear Video HD Technology, Intel ^® Insider™, Intel ^® HD Graphics 4400/4600 - Pixel Shader 5.0, DirectX 11.1 - Max. shared memory 1792MB - Three graphics output options: D-Sub, DVI-D and HDMI Ports - Supports Triple Monitor - Supports HDMI with max. resolution up to 1920x1200 @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports * Intel ^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. * * Due to chipset limitation, the Blu-ray playback of Intel ^® HD Graphics is only supported under Windows ^® 8 / 8 64-bit / 7 / 7 64-bit. * * * Intel ^® InTru™ 3D is only supported under Windows ^® 8 / 8 64-bit / 7 / 7 64-bit.
Audio	- 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports Surge Protection (ASRock Full Spike Protection)
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Expansion / Connectivity
Slots	- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) - 2 x PCI Express 2.0 x1 Slots
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector	- 1 x Chassis Intrusion Header - 1 x TPM Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (4-pin) - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O	- 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Software and UEFI	Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock System Browser - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Interactive UEFI - ASRock UEFI Guide - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy Driver Installer
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7)
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
Hardware Monitor	- CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	- Micro ATX Form Factor: 8.9-in x 7.6-in, 22.6 cm x 19.3 cm - All Solid Capacitor design - High Density Glass Fabric PCB
OS	- Microsoft ^® Windows ^® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications	- FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)
