ASRock FM2A68M-DG3+, AMD FM2+

Продуктов код: 9247
Дънна платка ASRock

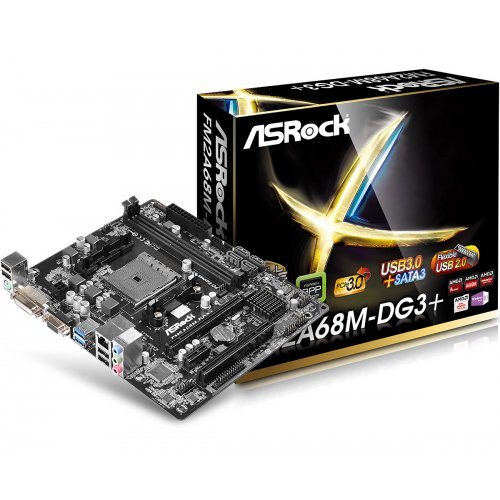

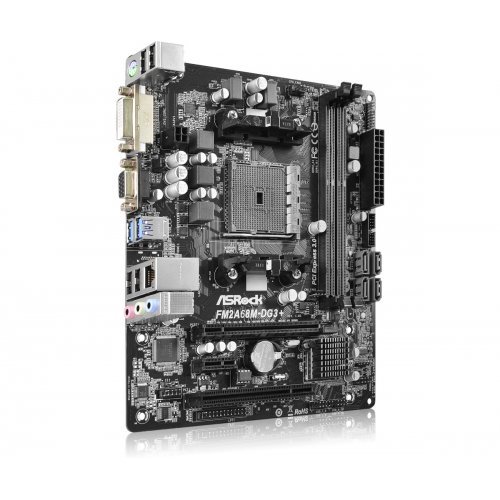

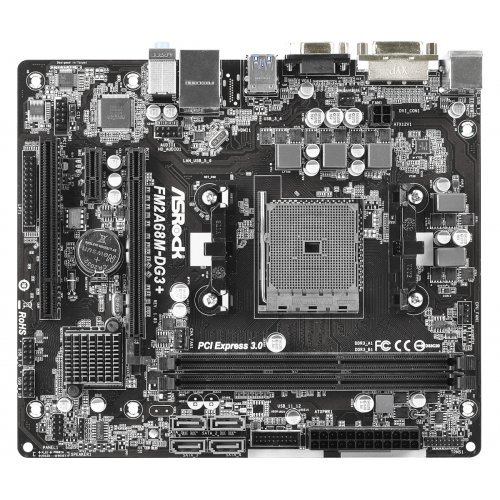

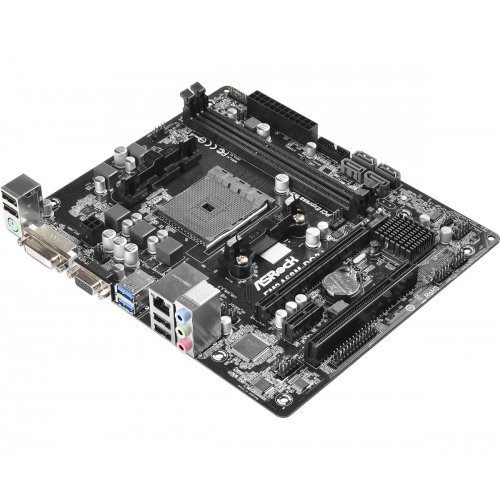

Дънна платка ASRock FM2A68M-DG3+, AMD FM2+ (умалена снимка 1) Дънна платка ASRock FM2A68M-DG3+, AMD FM2+ (умалена снимка 2) Дънна платка ASRock FM2A68M-DG3+, AMD FM2+ (умалена снимка 3) Дънна платка ASRock FM2A68M-DG3+, AMD FM2+ (умалена снимка 4) Дънна платка ASRock FM2A68M-DG3+, AMD FM2+ (умалена снимка 5)
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
FM2A68M-DG3+
Партиден номер:
FM2A68M-DG3+
Гаранция:
36 месеца
Чипсет:
AMD A68H
Socket:
AMD FM2+
Предназначение:
Десктоп
Слотове за памет:
2
RAM- поколение:
DDR3
Видео изходи:
D-Sub / RGB / VGA, DVI
Form Factor:
Micro ATX
Интерфейс:
PS/2, USB 2.0, USB 3.0

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Информация за ASRock FM2A68M-DG3+

  • Ревюта
  • Въпроси и отговори
 General
Unique Feature ASRock Full Spike Protection
ASRock APP Shop
CPU - Supports Socket FM2+ 95W / FM2 100W processors
Chipset - AMD A68H (Bolton-D2H)
Memory - Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB *
- Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2
- Supports AMD Memory Profile Technology (AMP) up to AMP 2400

* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- DRAM, CPU Voltage multi-adjustment
 Audio, Video and Networking
Graphics - Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
- DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
- Max. shared memory 2GB
- Dual graphics output options: support DVI-D and D-Sub by independent display controllers
- Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
- Supports HDCP with DVI-D Port
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Surge Protection (ASRock Full Spike Protection)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
 Expansion / Connectivity
Slots - 1 x PCI Express 3.0 x16 Slot (PCIE1@ x16 mode)
- 1 x PCI Express 2.0 x1 Slot
- 1 x PCI Slot
- Supports AMD Dual Graphics

* PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Connector - 1 x Print Port Header
- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Flexible USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

* This Flexible USB 2.0 header allows users to connect a front USB 3.0 panel, and support two USB ports with 2.0/1.1 data rate.

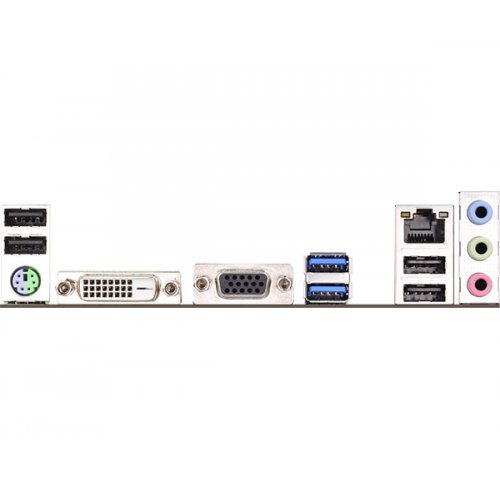

Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (AMD A68H (Bolton-D2H)) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Software and BIOS Software
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
- ASRock X-Boost
UEFI
- ASRock Interactive UEFI
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor - CPU temperature sensing
- Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - Micro ATX Form Factor
- All Solid Capacitor design
- High Density Glass Fabric PCB
OS - Microsoft ® Windows ® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
