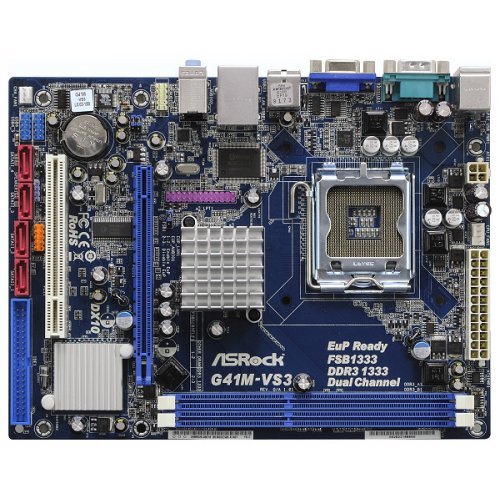

Дънна платка ASRock G41M-VS3

Продуктов код: 520
Дънна платка ASRock
Дънна платка ASRock G41M-VS3 Дънна платка ASRock G41M-VS3
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
G41M-VS3
Партиден номер:
-
RAM - поколение:
DDR3
Socket:
Intel LGA775
Form Factor:
ATX
Видео изходи:
D-Sub(VGA)

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

ASRock G41M-VS3

  1. LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
  2. Intel® G41+ ICH7 Chipsets
  3. Supports FSB1333/1066/800/533 MHz CPUs
  4. Supports Dual Channel DDR3 1333(OC)/1066/800, 2 x DIMM slots, Max. capacity up to 8GB
  • Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB
  • 1 x PCI Express x16 slot
  • 4 x SATAII 3.0 Gb/s connectors
  • 10/100 Ethernet
  • Supports ASRock Instant Boot, Instant Flash, OC DNA
  • Supports ASRock OC Tuner, Intelligent Energy Saver
  • EuP Ready
  • Free Bundle: CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial
  • 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
  • Compatible with Windows® 7
  • I/O Panel: 1 x Serial Port: COM1, 1 x VGA Port, 4 x Ready-to-Use USB 2.0 Ports, 1 x RJ-45 LAN Port with LED
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Product Specifications

 General
CPU - LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset - Northbridge: Intel® G41
- Southbridge: Intel® ICH7
Memory - Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 8Mb AMI Legal BIOS
- Supports"Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- VCCM, NB, VTT Voltage Multi-adjustment
 Audio, Video and Networking
Graphics - Intel® Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB*
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

*The shared memory size is dynamically controlled by VGA driver, and the Max. shared memory size will be available only when more than 4GB memory is installed under 64-bit OS.
Audio - 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
LAN - Atheros® PCIEx1 LAN AR8132L
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
 Expansion / Connectivity
Slots - 1 x PCI Express x16 slot
- 1 x PCI slot
Connector - 4 x SATAII 3.0 Gb/s connectors (No support for RAID and"Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm
OS - Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications - FCC, CE
- EuP Ready (EuP ready power supply is required)

Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
