Дънна платка ASRock QC5000M-ITX/PH

Дънна платка ASRock QC5000M-ITX/PH

Name: Дънна платка ASRock QC5000M-ITX/PH
Brand: ASRock
SKU: QC5000M-ITX/PH
Availability: OutOfStock

Продуктов код: 15011

Дънна платка ASRock QC5000M-ITX/PH (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

ASRock

Модел:

QC5000M-ITX/PH

Партиден номер:

Гаранция:

36 месеца

Предназначение:

Десктоп

Чипсет:

Интегриран в процесора(SoC- System-on-a-chip)

Брой слотове за памет:

RAM - поколение:

DDR3

Socket:

AMD FT3

Form Factor:

Mini ITX

Видео изходи:

D-Sub(VGA), HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

ASRock QC5000M-ITX/PH

General
Unique Feature	ASRock Full Spike Protection ASRock APP Shop
CPU	- AMD FT3 Kabini A4-5000 Quad-Core APU
Chipset	- SOC
Memory	- 2 x DDR3 DIMM Slots - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation. Please refer to Memory Support List on ASRock's website for more information.
BIOS	- 32Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 1.1 compliance wake up events - SMBIOS 2.3.1 support - DRAM Voltage multi-adjustment
Audio, Video and Networking
Graphics	- Integrated AMD Radeon™ HD 8330 Graphics - DirectX 11.1, Pixel Shader 5.0 - Max. shared memory 2GB - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 30Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI Port - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Expansion / Connectivity
Slots	- 1 x PCI Express 2.0 x16 Slot (PCIE1: x4 mode)
Storage	- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector	- 1 x TPM Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (4-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

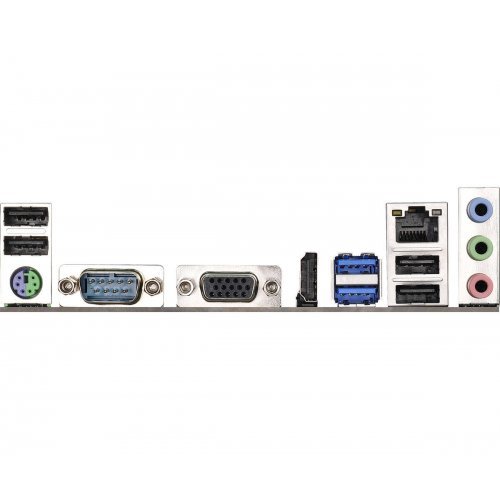

Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Software and BIOS	Software* - ASRock USB Key - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI - ASRock APP Charger UEFI - ASRock Interactive UEFI - ASRock Instant Boot - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Dehumidifier Function - ASRock Easy Driver Installer *These utilities can be downloaded from the APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
Hardware Monitor	- CPU temperature sensing - Chassis temperature sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor	- Mini-ITX Form Factor - Solid Capacitor design - High Density Glass Fabric PCB
OS	- Microsoft^® Windows^® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit *USB 3.0 is not supported by Windows^® XP
Certifications	- FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)
