Дънна платка Asus Maximus VI Formula, LGA 1150

Дънна платка Asus Maximus VI Formula, LGA 1150

Name: Дънна платка Asus Maximus VI Formula, LGA 1150
Brand: Asus
SKU: Maximus VI Formula
Availability: OutOfStock

Продуктов код: 3586

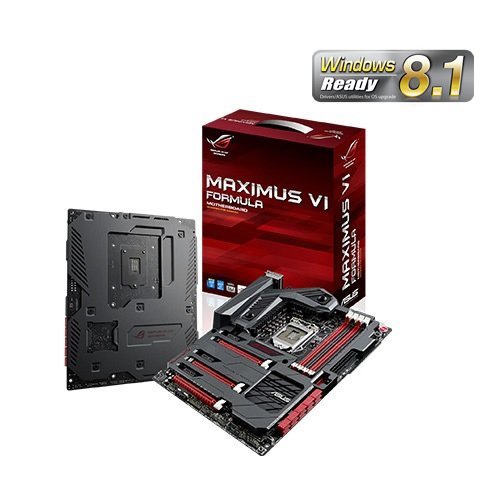

Дънна платка Asus Maximus VI Formula (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

Maximus VI Formula

Партиден номер:

Брой слотове за памет:

RAM - поколение:

DDR3

Socket:

Intel LGA1150

Form Factor:

ATX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus Maximus VI Formula

CPU
Intel® Socket 1150 for 4 ^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® Z87
Memory
4 x DIMM, Max. 32GB, DDR3 3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)
/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) * ¹
1 x mini-PCIe 2.0 x1 * ²
3 x PCIe 2.0 x1
Storage
Intel® Z87 chipset : * ³
6 x SATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology * ⁴
Intel® Z87 chipset :
1 x M.2 (NGFF) Socket 2 on mPCIe Combo II expansion card(s), black
Support M.2 (NGFF) Type 2242 SSD card (22mm x 42mm), Support PCI express 2.0 x1 and SATA 6Gb/s standards
ASMedia® ASM1061 controller : * ⁵
4 x SATA 6Gb/s port(s), red
LAN
Intel® I217V, 1 x Gigabit LAN Controller(s)
Wireless Data Network
Wi-Fi 802.11a/b/g/n/ac* ⁶
Supports dual band frequency 2.4/5 GHz
Bluetooth
Bluetooth V4.0
Bluetooth V3.0+HS
Audio
ROG SupremeFX Formula 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming
- SupremeFX Shielding Technology
- Cirrus Logic® CS4398 DAC: 120 dB SNR, -107 dB THD+N (Max. 192 kHz/ 24 -bit)
- TI 6120A2 high fidelity headphone amplifier
- WIMA® film capacitors
- ELNA® premium audio capacitors
- High-fidelity audio OP AMP(s)
- Differential circuit design
Audio Feature :
- Blu-ray audio layer Content Protection
- Sonic Radar
- DTS Connect
- Optical S/PDIF out port(s) at back panel
USB Ports
Intel® Z87 chipset : * ⁷
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z87 chipset : * ⁸
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
ASMedia® USB 3.0 controller :
4 x USB 3.0 port(s) (4 at back panel, blue)
ROG Exclusive Features
CrossChill (Hybrid air and liquid cooling) * ⁹
ROG Armor (including top cover and SECC steel backplate) * ¹⁰
mPCIe Combo II (mPCIe/M.2 combo card)
Extreme Engine Digi+ III :
- 8 + 2 phase power design
- NexFET™ Power Block MOSFET
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
ROG RAMDisk
GameFirst II
Extreme Tweaker
Special Features
ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
CPU Level Up
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Media Streaming Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
- Wi-Fi GO! & NFC Remote for portable Smartphone/Tablet, supporting iOS & Android systems
ASUS Exclusive Features :
- GPU Boost
- USB BIOS Flashback
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Operating System Support
Windows® 8.1
Windows® 8
Windows® 7
Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
10 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
3 x Optional Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
10 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x FastBoot switch(es)
1 x ROG extension (ROG_EXT) header(s)
1 x mPCIe Combo II connector(s)
Accessories
User's manual
I/O Shield
8 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo II card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0/3.0+HS module
1 x ROG Door Hanger(s)
BIOS
64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS
Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
Support Disc
Drivers
ROG GAMEFIRST II
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1: x8/x4/x4 mode is supported by Intel® 4rd generation Core™ Processors
*2: The mini-PCIe slot is pre-installed with a Wi-Fi/Bluetooth module on mPCIe Combo II expansion card.
*3: SATA 6Gb/s port 5 will be disabled when M.2 slot on mPCIe Combo II is in use.
*4: The functions support depends on the CPU types.
*5: These SATA ports are for data hard drives only. ATAPI devices are not supported.
*6: The Wi-Fi standard of 802.11ac will be restricted by countries' regulations. Wi-Fi 802.11ac feature will be supported under the complete
*7: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.
*8: 2 x USB2.0 ports at mid-board shares with ROG extension (ROG_EXT) port.
*9: Supports G1/4" threaded fittings. Fittings require separate purchase.
*10: Chassis must conform to ATX specification for successful installation: brass stand-offs of at least 6mm are required.
