Asus
Дънна платка Asus Maximus VII Hero, LGA 1150

Дънна платка Asus Maximus VII Hero, LGA 1150

Name: Дънна платка Asus Maximus VII Hero, LGA 1150
Brand: Asus
SKU: Maximus VII Hero
Availability: OutOfStock

Продуктов код: 7587

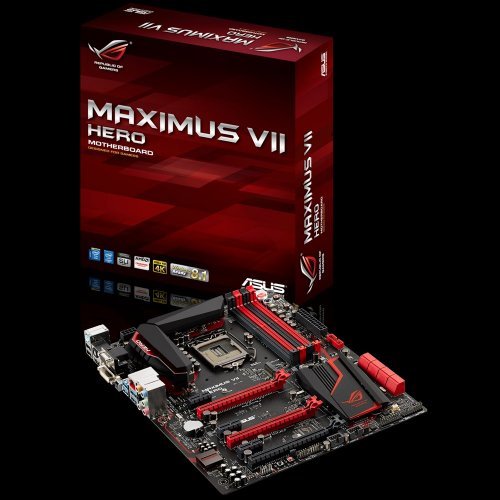

Дънна платка Asus Maximus VII Hero (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

Maximus VII Hero

Партиден номер:

Брой слотове за памет:

RAM - поколение:

DDR3

Socket:

Intel LGA1150

Form Factor:

ATX

Видео изходи:

D-Sub(VGA), HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus Maximus VII Hero

ASUS MAXIMUS VII HERO

• CPU
Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0

• Chipset
Intel® Z97

• Memory
4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC,
Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

• Graphic
Integrated Graphics ProcessorIntel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Supports DVI-D with max. resolution 1920 x 2000 @ 60 Hz
Supports RGB with max. resolution 1920 x 2000 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

• Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology

• Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
1 x PCIe 2.0 x16 (x4 mode, black) *1
3 x PCIe 2.0 x1 *2

• Storage
Intel® Z97 chipset :
6 x SATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
1 x M.2 Socket 3, blackwith M Key, type 2260/2280 storage devices support (PCIE mode)
ASMedia® PCIe SATA controller : *4
2 x SATA 6Gb/s port(s), red

• LAN
Intel® I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III
Intel® LANDual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard

• Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

• USB Ports
Intel® Z97 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z97 chipset : *5
7 x USB 2.0/1.1 port(s) (2 at back panel, black, 5 at mid-board)

• Operating System Support
Windows® 8.1
Windows® 8
Windows® 7

• Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

• BIOS
64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS

• Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE

• Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
