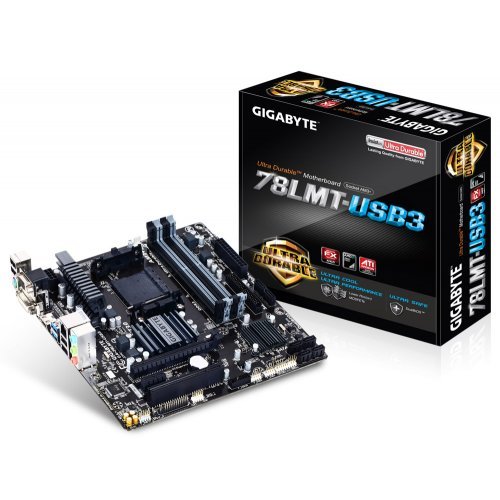

Дънна платка Gigabyte GA-78LMT-USB3 (rev. 6.0)

Продуктов код: 10441
Дънна платка Gigabyte
Дънна платка Gigabyte GA-78LMT-USB3 (rev. 6.0) Дънна платка Gigabyte GA-78LMT-USB3 (rev. 6.0) Дънна платка Gigabyte GA-78LMT-USB3 (rev. 6.0) Дънна платка Gigabyte GA-78LMT-USB3 (rev. 6.0) Дънна платка Gigabyte GA-78LMT-USB3 (rev. 6.0) Дънна платка Gigabyte GA-78LMT-USB3 (rev. 6.0)
Дънна платка Gigabyte
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Gigabyte
Модел:
GA-78LMT-USB3 (rev. 6.0)
Партиден номер:
-
Брой слотове за памет:
4
RAM - поколение:
DDR3
Socket:
AMD AM3+
Form Factor:
mATX
Видео изходи:
D-Sub(VGA), DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Gigabyte GA-78LMT-USB3 (rev. 6.0)

CPU AM3+ Socket:
  1. Support for AMD AM3+ processor
  2. Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor
(Please refer "CPU Support List" for more information.)
Hyper Transport Bus
  1. 4400 MT/s
Chipset
  1. North Bridge: AMD 760G
  2. South Bridge: AMD SB710
Memory
  1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for 1600(O.C.)/1333/1066 MHz memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics North Bridge:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2)
  3. 1 x HDMI port, supporting a maximum resolution of 1920x1200 (Note 3)
  4. Support for DirectX 10
Audio
  1. Realtek ® ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel (Note 4)
  4. Support for S/PDIF Out
LAN
  1. Realtek ® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
  2. 1 x PCI Express x1 slot
    3. (All PCI Express slots conform to PCI Express 2.0 standard.)
  3. 1 x PCI slot
Storage Interface South Bridge:
  1. 1 x IDE connector supporting ATA-133/100/66/33
  2. 6 x SATA 3Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 10, and JBOD
USB Chipset:
  1. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
VIA ® VL805 chip:
  1. 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 6 x SATA 3Gb/s connectors
  4. 1 x IDE connector
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x USB 3.0/2.0 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x serial port header
  13. 1 x parallel port header
  14. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 2 x USB 3.0/2.0 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
  1. iTE ® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control (Note 5)
BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for EasyTune (Note 6)
  7. Support for Smart Recovery2
  8. Support for Auto Green
  9. Support for ON/OFF Charge
  10. Support for Q-Share
Bundle Software
  1. Norton ® Internet Security (OEM version)
Operating System
  1. Support for Windows 7/XP
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
Note (Note 1) Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

(Note 2) The DVI-D port does not support D-Sub connection by adapter.

(Note 3) Simultaneous output for DVI-D and HDMI is not supported.

(Note 4) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

(Note 5) Whether the fan speed control function is supported will depend on the cooler you install.

(Note 6) Available functions in EasyTune may differ by motherboard model.
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
