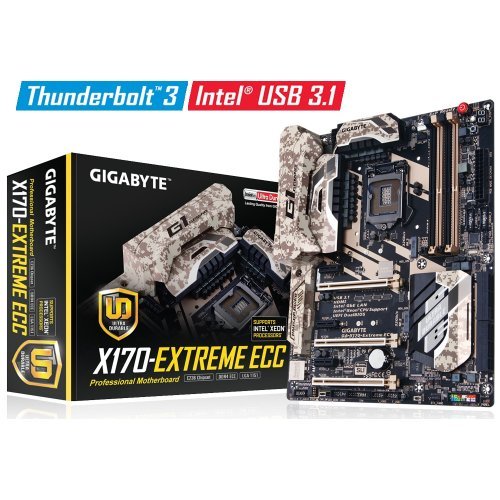

Дънна платка Gigabyte GA-X170-Extreme ECC, LGA1151

Продуктов код: 15039
Дънна платка Gigabyte
Дънна платка Gigabyte GA-X170-Extreme ECC Дънна платка Gigabyte GA-X170-Extreme ECC Дънна платка Gigabyte GA-X170-Extreme ECC Дънна платка Gigabyte GA-X170-Extreme ECC
Дънна платка Gigabyte
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Gigabyte
Модел:
GA-X170-Extreme ECC
Партиден номер:
-
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel C236
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
DisplayPort, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Gigabyte GA-X170-Extreme ECC


    World's First Intel® Thunderbolt™ 3 Certified C236 Chipset Motherboard
    Supports the Intel® Xeon® E3-1200 v5 processor and 6th Gen. Intel® Core™/ Pentium®/ Celeron® Processor
    Dual Channel ECC, Non-ECC, Un-buffered DDR4, 4 DIMMs
    Intel® USB 3.1 with USB Type-C™ - The World's Next Universal Connector
    3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
    Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
    3 SATA Express Connectors for up to 16Gb/s Data Transfer
    HDMI 2.0 for 4K@60Hz and 21:9 aspect ratio provide the finest viewing experience
    Creative SoundCore™ 3D Gaming Audio
    Integrated HDMI 2.0 support
    Killer™ E2400 and Intel®Gaming Networks
    LED Trace Path with Multi-Color Choice
    APP Center Including EasyTune™ and Cloud Station™ Utilities
    GIGABYTE UEFI DualBIOS™ Technology

CPU
  1. Support for Intel® Xeon® E3-1200 v5 processors/Intel® Core™ processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® C236 Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    * ECC support varies by CPU.
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
Integrated Graphics Processor+MegaChips MCDP2800 chip:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version. (Requires the latest Intel® graphics driver from the GIGABYTE website.)
Maximum shared memory of 512 MB
Audio
  1. Creative® Sound Core 3D chip
  2. Support for Sound Blaster Recon3Di
  3. TI Burr Brown® OPA2134 operational amplifier
  4. High Definition Audio
  5. 2/5.1-channel
  6. Support for S/PDIF Out
LAN
  1. 1 x Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1)
  2. 1 x Rivet Networks Killer™ E2400 chip (10/100/1000 Mbit) (LAN2)
    * Teaming is not supported.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector.
  4. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for 3-Way/2-Way AMD CrossFire™ and 2-Way NVIDIA® SLI™ Technologies
Storage Interface Chipset:
  1. 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2/x1 SSD support)
    * If the iRSTe Support item in BIOS Setup is set to Enabled, the RAID function will become unavailable when an M.2 PCIe SSD is installed. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)
  2. 3 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-10 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
ASMedia® ASM1061 chip:
  1. 2 x SATA 6Gb/s connectors (SATA3 6~7), supporting AHCI mode only
USB Chipset:
  1. 5 x USB 3.0/2.0 ports on the back panel
  2. 4 x USB 2.0/1.1 ports (available through the internal USB headers)
Chipset+Renesas® USB 3.0 Hub:
  1. 4 x USB 3.0/2.0 ports (available through the internal USB headers)
Chipset+Intel® USB 3.1 Controller:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1 x USB 3.1 Type-A port (red) on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 2 x M.2 Socket 3 connectors
  4. 3 x SATA Express connector
  5. 8 x SATA 6Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x water cooling fan header (CPU_OPT)
  8. 3 x system fan headers
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 2 x USB 3.0/2.0 headers
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper
  16. 1 x power button
  17. 1 x reset button
  18. 1 x Clear CMOS button
  19. 1 x audio gain control switch
  20. Voltage Measurement Points
  21. 1 x BIOS switch
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x USB Type-C™ port, with USB 3.1 support
  5. 1 x USB 3.1 Type-A port (red)
  6. 5 x USB 3.0/2.0 ports
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/Chipset temperature detection
  3. CPU/CPU OPT/System fan speed detection
  4. CPU/System/Chipset overheating warning
  5. CPU/CPU OPT/System fan fail warning
  6. CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    ON/OFF Charge
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology (Olny for iRST mode)
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
