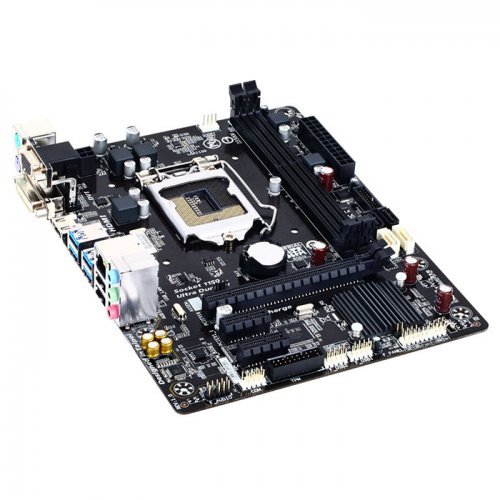

Дънна платка Gigabyte H81M-S2H, LGA 1150

Продуктов код: 8348
Дънна платка Gigabyte
Дънна платка Gigabyte
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Gigabyte
Модел:
H81M-S2H
Партиден номер:
-
Брой слотове за памет:
2
RAM - поколение:
DDR3
Socket:
Intel LGA1150
Form Factor:
mATX
Видео изходи:
D-Sub(VGA), DVI, HDMI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Gigabyte H81M-S2H

GIGABYTE GA-H81M-S2H

• CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package

• Chipset
Intel® H81 Express Chipset

• Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

• VGA
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160
* Support for HDMI 1.4a version.
Maximum shared memory of 1 GB

• Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

• Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x Clear CMOS jumper

• Storage Interface
2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1) supporting up to 2 SATA 6Gb/s devices
2 x SATA 3Gb/s connectors (SATA2 2~ SATA2 3) supporting up to 2 SATA 3Gb/s devices

• Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

• LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)

• Rear Panel I/O Ports
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

• BIOS
1 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Form Factor
Micro ATX

• Dimensions
22.6cm x 19.4cm

• Package
Box
