MSI
Дънна платка MSI 990FXA GAMING, AMD AM3+

Дънна платка MSI 990FXA GAMING, AMD AM3+

Name: Дънна платка MSI 990FXA GAMING, AMD AM3+
Brand: MSI
SKU: 990FXA GAMING
Availability: OutOfStock

Продуктов код: 12905

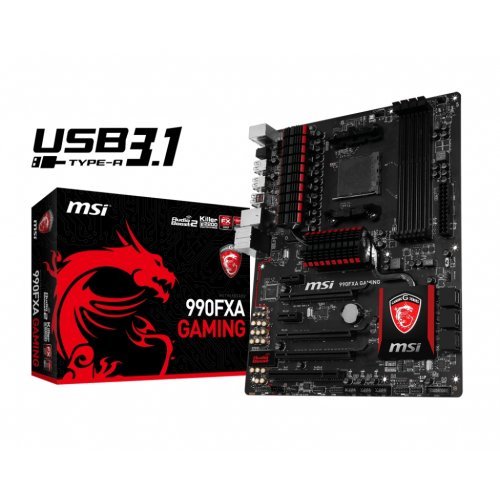

Дънна платка MSI 990FXA GAMING (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

MSI

Модел:

990FXA GAMING

Партиден номер:

Гаранция:

36 месеца

Брой слотове за памет:

RAM - поколение:

DDR3

Socket:

AMD AM3+

Form Factor:

ATX

Видео изходи:

не поддържа самостоятелно вградено видео

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

MSI 990FXA GAMING

CPU

• Supports AMD® FX™/ Phenom™ II/ Athlon™ II and Sempron™ processors for the AM3/ AM3+ socket

Chipset

• AMD® 990FX & SB950

Main Memory

- 4x DDR3 memory slots supporting up to 32GB
- Supports DDR3 2133(OC)/ 1866/ 1600/ 1333/ 1066 MHz
- Dual channel memory architecture

Slots

• 3x PCIe 2.0 x16 slots
- PCI_E2, PCI_E5 support up to PCIe 2.0 x16 speed
- PCI_E4 supports up to PCIe 2.0 x4 speed
• 2x PCIe 2.0 x1 slots
• 1 x PCI slot

On-Board SATA

• AMD® SB950 Chipset
- 6x SATA 6Gb/s ports

• RAID
- Supports RAID 0, RAID1, RAID5 and RAID 10

USB

• AMD® SB950 Chipset
- 14x USB 2.0 ports (8 ports on the back panel, 6 ports available through the internal USB 2.0 connectors)

• VIA® VL806 Chipset
- 2x USB 3.0 ports available through the internal USB 3.0 connector*

• Asmedia® 1142 Chipset
- 2x USB 3.1 ports on the back panel
* These USB 3.0 ports do not support M-Flash recovery function.

Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN

• Killer E2205 Gigabit LAN controller*
- 1 x LAN port on the backpanel

* The Killer Network Manager is only available for Windows 7 and Windows 8/ 8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vendor.

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
- 1 x USB 3.0 connector
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 2 x 3-pin system fan connectors
- 1 x Front panel audio connector
- 2x Front panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1x S/PDIF-Out connector
- 1x Clear CMOS jumper
- 1x Slow mode booting switch

Back Panel I/O Ports

- 1x PS/2 keyboard/ mouse combo port
- 8x USB 2.0 ports
- 2x USB 3.1 ports
- 1x Optical S/PDIF-Out connector
- 1x LAN (RJ45) port
- 6x OFC audio jacks
