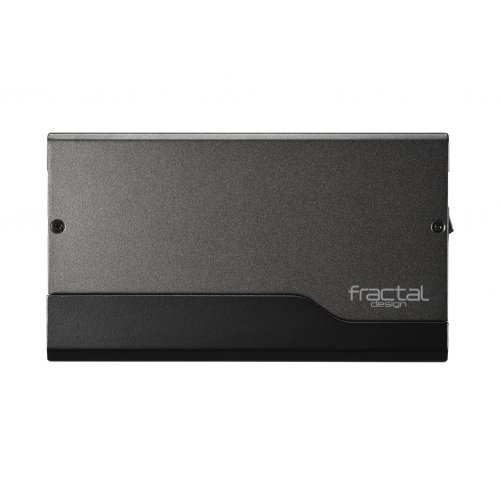

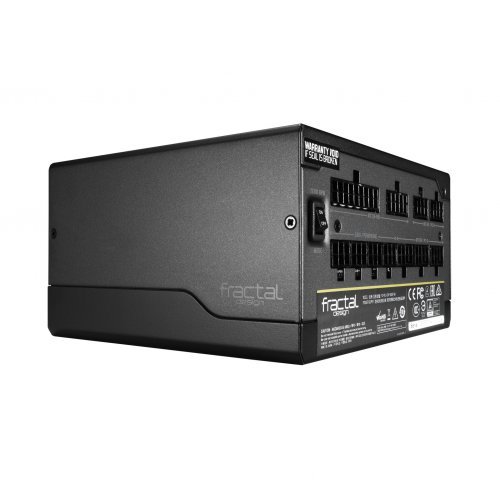

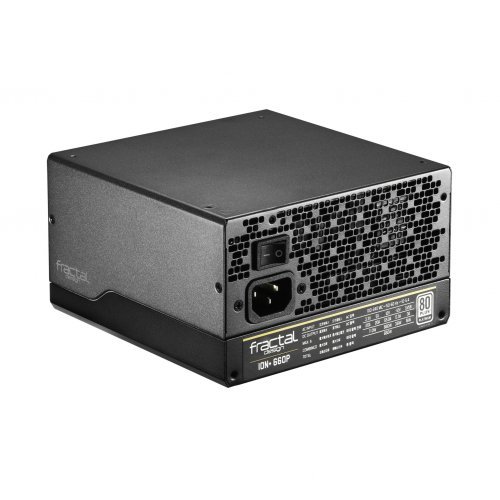

Захранващ блок Fractal Design ION+ PLATINUM, 660W, 80 Plus Platinum

Продуктов код: 41654
Захранващ блок Fractal Design
Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU Захранващ блок Fractal Design 660W ION+ PLATINUM FD-PSU-IONP-660P-BK-EU
Захранващ блок Fractal Design
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Fractal Design
Модел:
660W ION+ PLATINUM
Партиден номер:
FD-PSU-IONP-660P-BK-EU

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Видео (1)
  • Ревюта
  • Въпроси и отговори

Fractal Design 660W ION+ PLATINUM

The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality

  • UltraFlex DC wires for effortless cable-routing and connectors

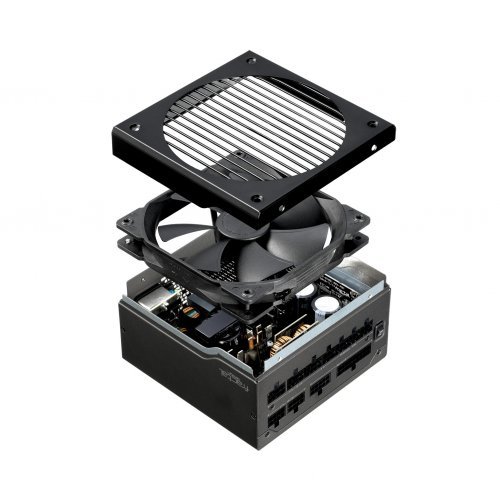

  • Custom-tailored 140 mm fan with exceptionally low minimum speed
  • 80 PLUS® Platinum Efficiency for optimized electrical performance



Спецификации:

  • 80 PLUS® Certification
    Platinum
  • Modular cables
    Fully modular
  • Cable type

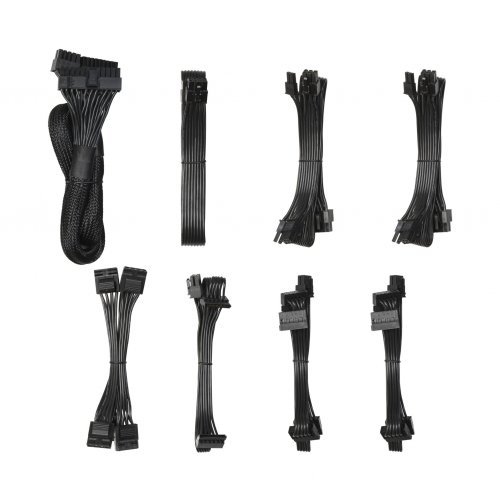

    Modular 24-pin: Braided sleeve UltraFlex wire. Others: Flat UltraFlex wire
  • Fan type

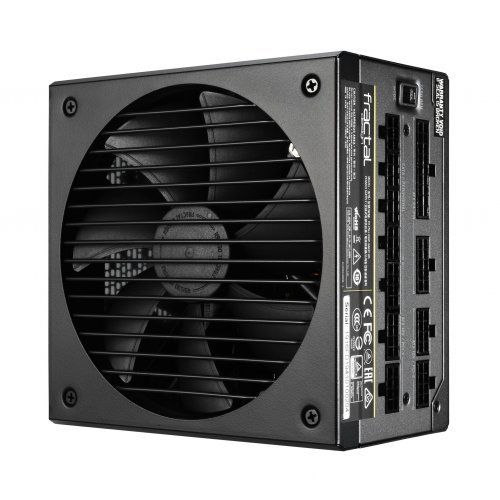

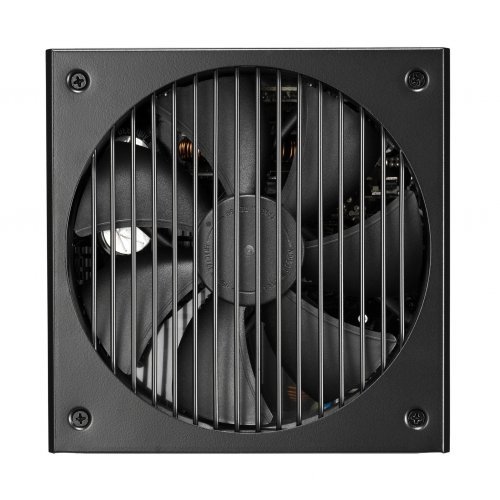

    Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
  • Maximum operating temperature at full load
    50°C
  • Semi-passive operation
    Yes, user selectable (Zero RPM)
  • Sleep State Compliance
    C6/C7
  • Warranty
    10 years

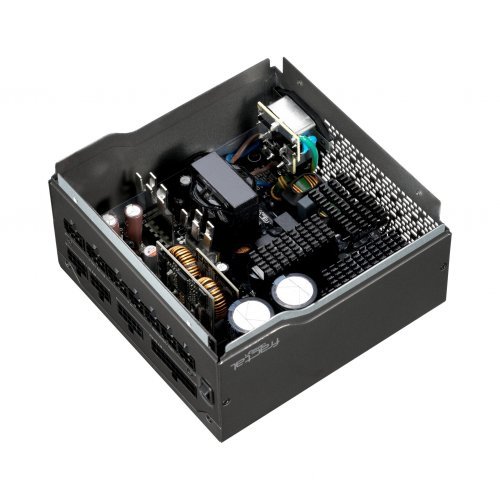

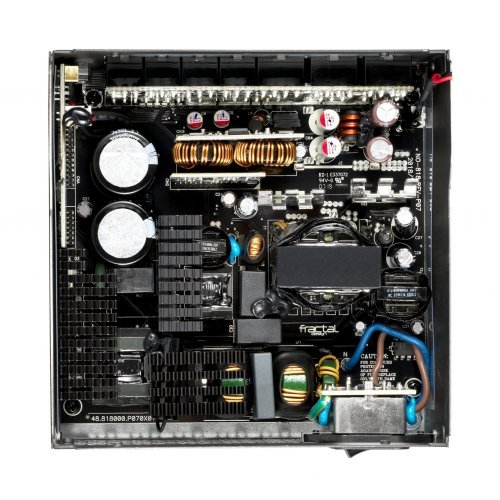

  • Capacitors
    Japanese
  • Protection features
    Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
  • Approvals & Certifications
    CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
  • Life expectancy (MTBF) at max output load
    100,000 hours

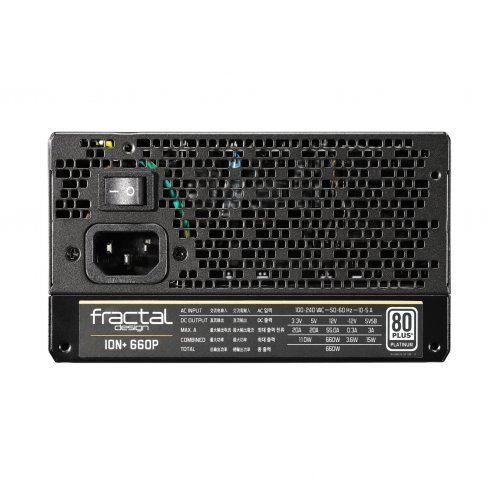

  • Input voltage
    100-240V AC
  • Input frequency
    50-60 Hz
  • Input current
    10A/5A
  • Number of 12V rails
    1
  • PSU specification compliance
    ATX12V 2.4 / EPS12V 2.92
  • Standby efficiency
    ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
  • Unit measurements
    150 x 150 x 86 mm
  • Unit weight (unit only)
    1.61 kg

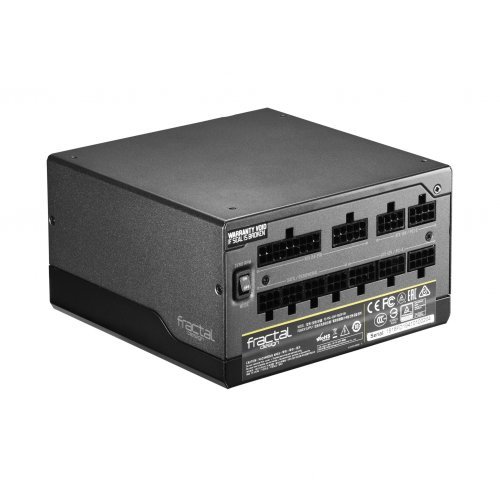

Connectors

  • ATX 24-pin
    1
  • ATX12V 4+4 pin / EPS12V 8-pin
    1
  • PCIe 6+2 pin
    4
  • SATA
    10
  • Peripheral
    4

Cable configuration (length between connectors)

  • ATX 24-pin
    600 mm
  • ATX12V 4+4 pin
    700 mm
  • EPS12V 8-pin
    N/A
  • PCIe 6+2 pin
    550+120 mm x2
  • SATA
    400+120+120+120 mm & 650+120 mm
  • Peripheral
    400+120+120+120

DC output

  • 3.3 V
    20 A
  • 5 V
    20 A
  • 3.3 V and 5 V combined
    110 W
  • 12 V
    55.0 A
  • -12 V
    0.3 A
  • 5 V Standby (+5 Vsb)
    3 A
  • Total Power
    660 W

  • Package content
    Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual
  • Package dimensions (W x H x D)
    325 x 110 x 210 mm
  • Package weight
    2.65 kg
  • EAN
    7340172701941
  • UPC
    843276101947
  • Product code
    FD-PSU-IONP-660P-BK



https://www.fractal-design.com/products/power-supplies/ion/ion-platinum-660w/Black/
