Fractal Design Integra M Series power supply units feature excellent electrical performance, including 80PLUS® Bronze certified efficiency.

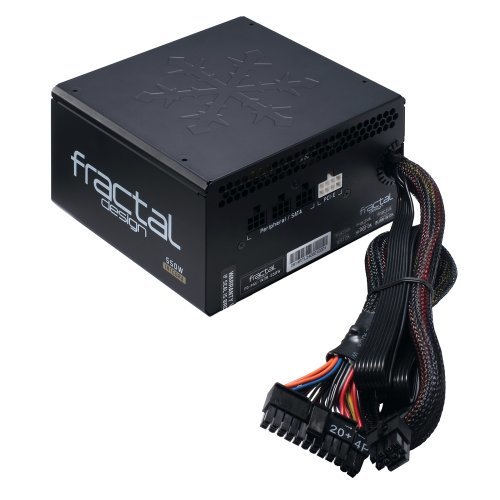

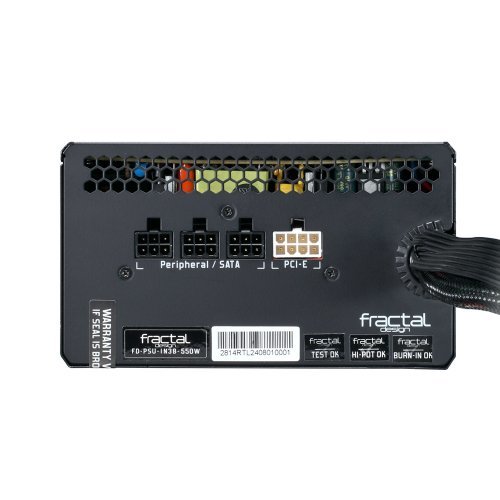

The modular flat cable system allows for a clean installation, and enhances airflow patterns inside the case. The short 140mm length makes for easy installation in small computer cases, and the extra-long ATX12V cable accommodates modern, bottom-PSU cases.
Fractal Design Integra M units are equipped with a large temperature-controlled 120mm fan for reduced noise levels and optimum cooling.
The Integra M is a great choice for medium-performance gaming computers and workstations.
Key features
- Modular cables. Only cables deemed likely for constant use (20+4-pin cable; 12V CPU cable, one PCI-E cable on 650W+ models) are fixed.
- 80PLUS Bronze efficiency
- ATX 2.4 compliant, including full support for the new C6 / C7 power states introduced with the 4th generation Intel Core CPUs
- Extremely short 140mm case allows for easy installation in compact cases
- Extra-long ATX 12V cable
- Quiet, temperature-controlled 120mm fan
80 PLUS® Bronze certified efficiency
Integra M PSUs meet the 80 PLUS® Bronze specification for providing power with an efficiency that is typical of PSUs with much higher price points. Additionally, because Integra M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels.
Excellent Electrical Performance
Fractal Design Integra M Series PSUs feature excellent DC voltage regulation and ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C full load or 50°C at 80% load.
Compliant with the latest standards
Integra M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92
Extremely short 140 mm case
Integra M PSUs are only 140mm long, which accommodates the smallest ATX-compatible computer cases on the market.

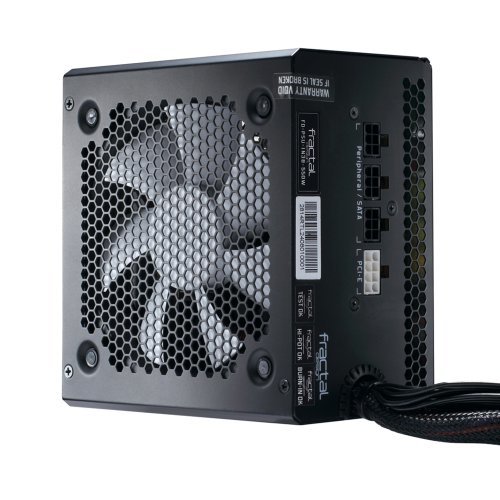

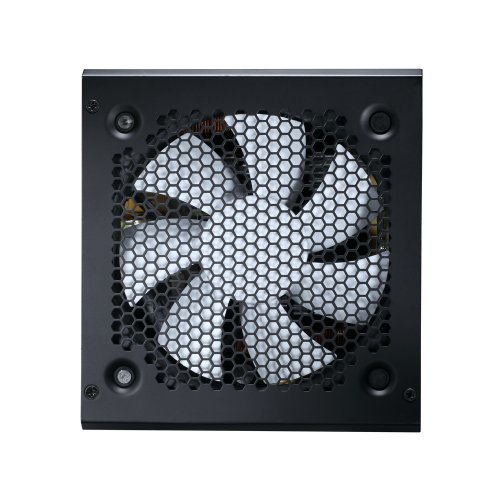

Silent, temperature-controlled 120mm fan
Generally, larger fans move more air with less noise than smaller fans: Integra M Series PSUs are equipped with a 120mm fan Sleeve Bearing, which keeps noise level down.
Extra-long ATX12V cable
Integra M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases.
Computer protection
Integra M PSUs feature an impressive suit of computer protection, including: Over Power Protection, Over Voltage Protection, Under Voltage Protection and Short Circuit Protection.
General specifications
80PLUS® Certification |
|
Modular cables |
|
Modular cable type |
|
Fan type |
|
Maximum operating temperature at full load |
|
Fully Intel Haswell C6/C7 compliant |
|
Warranty |
|
Capacitors |
|
Protections |
|
Life expectancy (MTBF) |
|
PSU specification compliance |
|
Standby efficiency |
|
Colors Available |
|
Unit Measurements |
|
Unit weights, with modular cables |
|
Package dimensions - W x H x D (mm) |
|
Package weight – (Kg) |
|
Cable configuration
Fixed Cables (length in mm, + designates a second connector on the same cable)
Model |
450W |
550W |
650W |
750W |
ATX 20+4 pin |
510 |
510 |
510 |
510 |
ATX12V 4+4 pin |
700 |
700 |
700 |
700 |
PCI-E 6+2 pin |
- |
- |
500+100 |
500+100 |

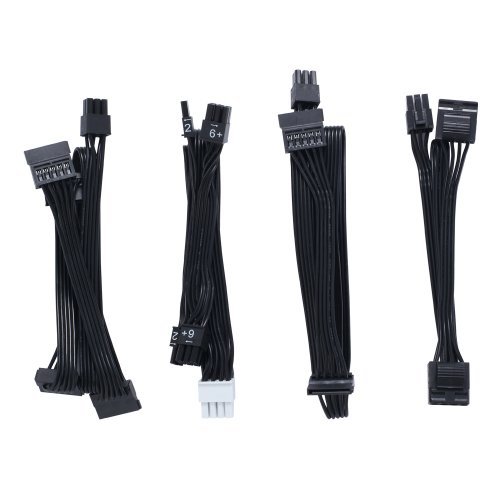

Modular cables (length in mm, + designates a second connector on the same cable)
Model |
450W |
550W |
650W |
750W |
PCI-E 6+2 pin |
520 |
520+100 |
520+100 |
520+100 |
Peripheral |
400+120 |
400+120 |
400+120 |
400+120 |
SATA |
400+120+120 650+120 |
400+120+120 650+120 |
400+120+120 650+120+120 |
400+120+120+120 650+120+120 |
DC Output
Model |
450W |
550W |
650W |
750W |
3.3V |
20A |
20A |
20A |
20A |
5V |
15A |
20A |
20A |
20A |
3.3V and 5.V combined |
80W |
100W |
100W |
100W |
12V1 |
37A |
54A |
||
-12V |
||||
5V Standby (+5Vsb) |
||||
Total Power |
450W |
550W |
650W |
750W |
Package contents
- Integra M Power Supply
- Modular cable kit
- AC power cord (localized)
- Zip ties and PSU screws
- User manual
Additional information
- EAN: 7350041082408
- UPC: 817301012409
- Product code: FD-PSU-IN3B-550W
- Masterbox quantity: 4pcs
