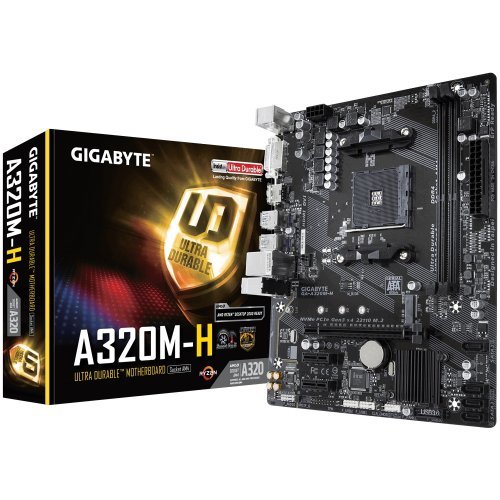

Дънна платка Gigabyte A320M-H 1.1

• Graphics: Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz; * Support for HDMI 1.4 version. Maximum shared memory of 2 GB

• CPU`s supported: AMD Ryzen™ processor; AMD 7th Generation A-series/ Athlon™ processor

• Chipset: AMD A320

• Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16); * Actual support may vary by CPU.; (The PCIEX16 slot conforms to PCI Express 3.0 standard.); 2 x PCI Express x1 slots; (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

• Storage: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support); * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor.; 4 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10; * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.

• Memory type: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory; Dual channel memory architecture; Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules; * Actual support may vary by CPU.; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

• I/O: 1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x DVI-D port; 1 x HDMI port; 4 x USB 3.1 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks (Line In, Line Out, Mic In)

• Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.1 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only); 1 x speaker header; 1 x Clear CMOS jumper; 1 x chassis intrusion header

• Audio: Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel; * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

• LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)

• BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Form Factor: Micro-ATX

• OS: Support for Windows 10 64-bit; Support for Windows 7 64-bit

• Warranty: 36 Months

https://www.gigabyte.com/Motherboard/GA-A320M-H-rev-11#sp
GB A320M-H 1.1
