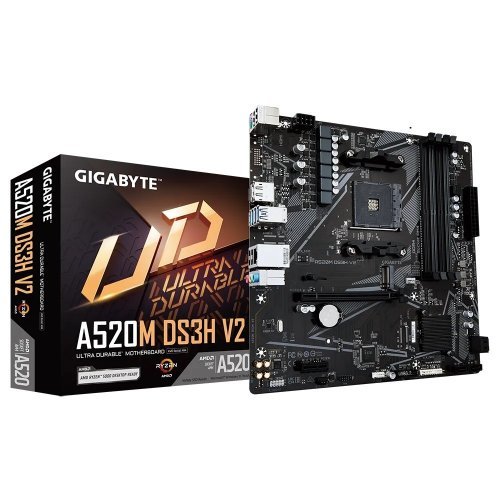

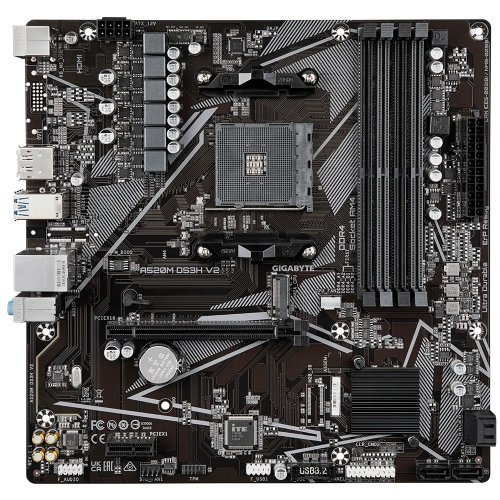

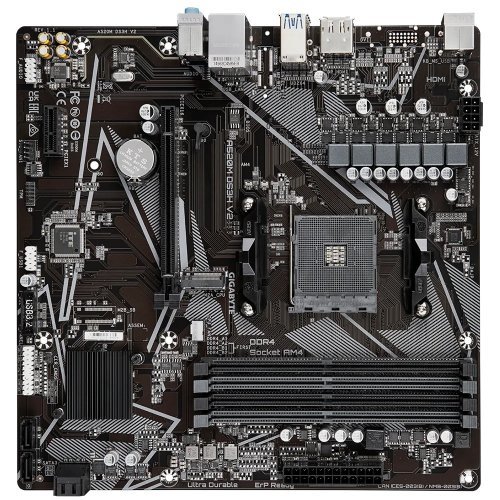

Дънна платка Gigabyte A520M DS3H V2

Name: Дънна платка Gigabyte A520M DS3H V2
Brand: Gigabyte
SKU: A520M DS3H V2
Price: 142.6 BGN
Availability: OnlineOnly

Продуктов код: 85483

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

A520M DS3H V2

Партиден номер:

A520M DS3H V2

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

AMD A520

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

AMD AM4

Form Factor:

mATX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Не

Цена с включен ДДС:

142.60 лв.

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Gigabyte A520M DS3H V2

CPUs supported: AMD Socket AM4, support for: AMD Ryzen 5000 Series Ryzen 5000 G-Series Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processor

Memory type: 4 x DDR4 DIMM sockets supporting up to 128 GB 32 GB single DIMM capacity of system memory;
Support for DDR4 4733O.C. 4600O.C. 4400O.C. 4266O.C. 4133O.C. 4000O.C. 3866O.C. 3733O.C. 3600O.C. 3466O.C 3400O.C. 3200 2933 2667 2400 2133 MHz memory module;
Dual channel memory architecture;
Support for ECC Un-buffered DIMM 1Rx82Rx8 memory module;
Support for non-ECC Un-buffered DIMM 1Rx82Rx81Rx16 memory module;
Support for Extreme Memory Profile XMP memory module;

Graphics: Integrated Graphics Processor with AMD Radeon Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120x288060 Hz;
Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.;
1 x HDMI port, supporting a maximum resolution of 4096x216060 Hz;
Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
Maximum shared memory of 16 GB;

Expansion Slots: 1 x PCI Express x16 slot, integrated in the CPU: Supporting PCIe 3.0 x16 mode;
1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode;

Storage: 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4x2 SSD;
4 x SATA 6Gbs connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10;

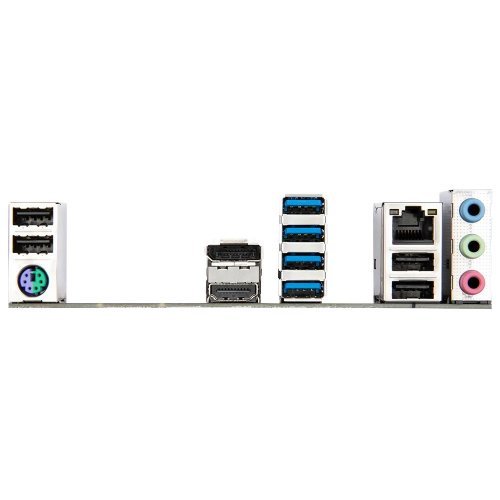

IO: 1 x PS2 keyboardmouse port;
1 x DisplayPort;
1 x HDMI port;
4 x USB 3.2 Gen 1 port;
2 x USB 2.01.1 port;
1 x RJ-45 port;
3 x audio jack;

Connectors: 1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
1 x system fan header;
1 x M.2 Socket 3 connector;
4 x SATA 6Gbs connector;
1 x front panel header;
1 x front panel audio header;
1 x USB 3.2 Gen 1 header;
1 x USB 2.01.1 header;
1 x Trusted Platform Module TPM header 2x6 pin, for the GC-TPM2.0_S module only;
1 x Clear CMOS jumper;
