Дънна платка Gigabyte B360 Aorus Gaming 3 WiFi

Дънна платка Gigabyte B360 Aorus Gaming 3 WiFi

Name: Дънна платка Gigabyte B360 Aorus Gaming 3 WiFi
Brand: Gigabyte
SKU: B360 Aorus Gaming 3 WiFi
Availability: OutOfStock

Продуктов код: 27704

Дънна платка Gigabyte B360 Aorus Gaming 3 WiFi (снимка 1)

Дънна платка Gigabyte B360 Aorus Gaming 3 WiFi

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

B360 Aorus Gaming 3 WiFi

Партиден номер:

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel B360

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1151

Form Factor:

ATX

Видео изходи:

DVI, HDMI

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte B360 Aorus Gaming 3 WiFi

Intel B360 AORUS motherboard with Intel CNVi WIFI ready, M.2 Thermal Guard, RGB Fusion with Digital LEDs, Intel GbE LAN with cFosSpeed, Dual M.2 slots, Ultra Durable PCIe Armor, Native Intel USB 3.1 Gen2 Type-A, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS™, CEC 2019 ready

Supports 8^th Gen Intel^® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4
New Hybrid Digital PWM Design
Intel^® CNVi 802.11ac Wave2 2T2R WIFI
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 (1 with Thermal Guard) & SATA interface
RGB FUSION with Multi-Zone Digital LED Light Show design
Intel^® Native USB 3.1 Gen2 USB Type-A
Intel^® USB 3.1 Gen1 USB Type-C™
Intel^® GbE LAN with cFosSpeed Internet Accelerator Software
CEC 2019 Ready, Save the Power as Easy as One Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
Intel^® Optane™ Memory Ready
Lightning-Fast Intel^® Thunderbolt™ 3 AIC Support

CPU
1. Support for 8^th Generation Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® B360 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
  * To support 2666 MHz or XMP memory, you must install an 8^th Generation Intel^® Core™ i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Audio
1. Realtek^® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  * The PCIEX4 slot shares bandwidth with the PCIEX1_2/PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 or PCIEX1_3 slot is populated.
3. 1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
4. 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
5. 1 x M.2 Socket 1 connector for an Intel^® CNVi wireless module only (CNVI)
  * B360 AORUS GAMING 3 WIFI includes the GC-CI22M_A CNVi wireless module.
  * The CNVi connector shares bandwidth with the USB 2.0/1.1 port on the back panel (the one below the LAN port). When a Wi-Fi module is populated in the CNVi connector, the USB 2.0/1.1 port becomes unavailable.
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
3. 6 x SATA 6Gb/s connectors
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
Chipset:
1. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
2. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 2 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x digital LED strip headers
8. 2 x digital LED strip power select jumpers
9. 2 x RGB (RGBW) LED strip headers
10. 6 x SATA 6Gb/s connectors
11. 2 x M.2 Socket 3 connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB 3.1 Gen 1 header
15. 1 x USB 2.0/1.1 header
16. 1 x S/PDIF Out header
17. 1 x Thunderbolt™ add-in card connector
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 1 x serial port header
20. 1 x Clear CMOS jumper

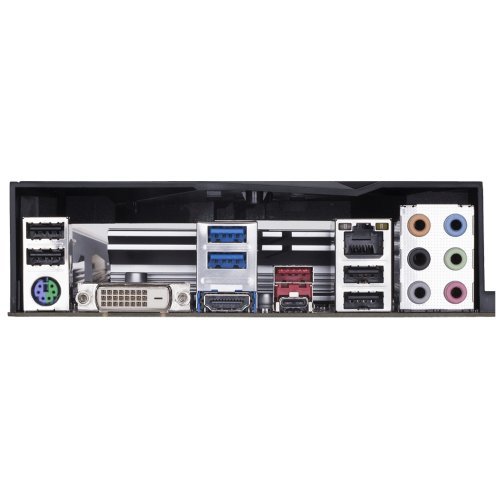

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 1 x USB 3.1 Gen 2 Type-A port (red)
5. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
6. 2 x USB 3.1 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 6 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  System Information Viewer
  USB Blocker
  V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 22.5cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
