Дънна платка Gigabyte B450 Aorus Pro 1.0

Продуктов код: 29238
Дънна платка Gigabyte
Дънна платка Gigabyte B450 Aorus Pro B450 Aorus Pro 1.0 Дънна платка Gigabyte B450 Aorus Pro B450 Aorus Pro 1.0 Дънна платка Gigabyte B450 Aorus Pro B450 Aorus Pro 1.0 Дънна платка Gigabyte B450 Aorus Pro B450 Aorus Pro 1.0 Дънна платка Gigabyte B450 Aorus Pro B450 Aorus Pro 1.0 Дънна платка Gigabyte B450 Aorus Pro B450 Aorus Pro 1.0
Дънна платка Gigabyte
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Gigabyte
Модел:
B450 Aorus Pro
Партиден номер:
B450 Aorus Pro 1.0
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
AMD B450
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
AMD AM4
Form Factor:
ATX
Видео изходи:
DVI, HDMI
Wi-Fi свързаност:
Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

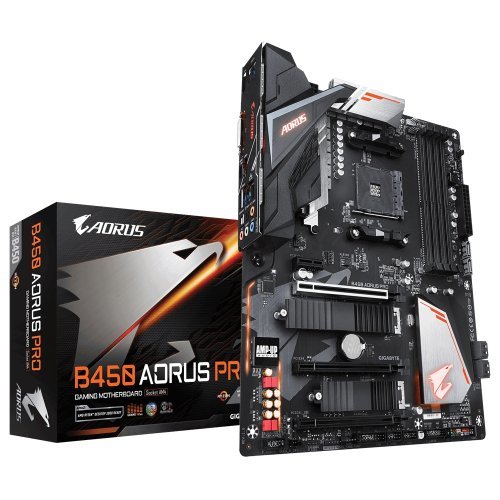

Gigabyte B450 Aorus Pro

AMD B450 AORUS Motherboard with Hybrid Digital PWM, Dual M.2 with Dual Thermal Guards, Audio ALC1220-VB, Intel® GbE LAN with cFosSpeed, CEC 2019 ready



  • Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • HDMI, DVI-D Ports for Multiple Display
  • Integrated I/O Shield of Ultra Durable™ Design
  • Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards
  • ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • CEC 2019 Ready, Save Power with a Single Click



  • CPU
    AM4 Socket:
    1. AMD Ryzen™ 2nd Generation processors
    2. AMD Ryzen™ with Radeon™ Vega Graphics processors
    3. AMD Ryzen™ 1st Generation processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B450
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.2.
      * Actual support may vary by CPU.
    3. Maximum shared memory of 16 GB
  • Audio
    1. Realtek® ALC1220-VB codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * Actual support may vary by CPU.
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.
    3. 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
    4. 1 x PCI Express x1 slot (PCIEX1_1)
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
    3. 6 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • USB
    Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
    2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 3.1 Gen 1 ports available through the internal USB header
    4. 4 x USB 2.0/1.1 ports available through the internal USB headers
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 6 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling CPU fan header
    7. 2 x system fan headers
    8. 1 x system fan/water cooling pump header
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 2 x digital LED strip headers
    11. 2 x digital LED strip power select jumpers
    12. 1 x RGB (RGBW) LED strip header
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x S/PDIF Out header
    16. 1 x USB 3.1 Gen 1 header
    17. 2 x USB 2.0/1.1 headers
    18. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
    19. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x HDMI port
    2. 1 x DVI-D port
    3. 4 x USB 3.1 Gen 1 ports
    4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
    5. 1 x USB 3.1 Gen 2 Type-A port (red)
    6. 1 x RJ-45 port
    7. 1 x optical S/PDIF Out connector
    8. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      Smart Survey
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
