Дънна платка Gigabyte B450M-DS3H

Дънна платка Gigabyte B450M-DS3H

Name: Дънна платка Gigabyte B450M-DS3H
Brand: Gigabyte
SKU: B450M-DS3H
Availability: OutOfStock

Продуктов код: 29076

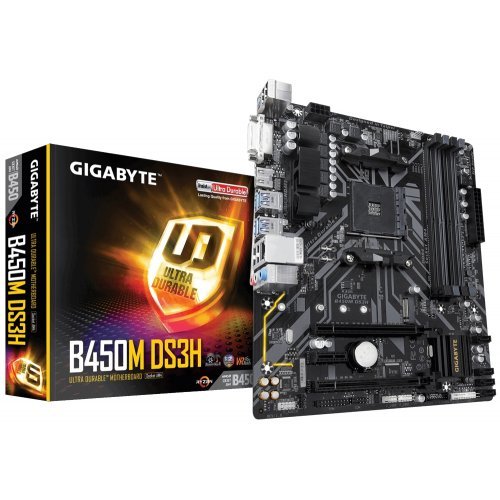

Дънна платка Gigabyte B450M-DS3H (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

B450M-DS3H

Партиден номер:

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

AMD B450

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

AMD AM4

Form Factor:

mATX

Видео изходи:

DVI, HDMI

Wi-Fi свързаност:

Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte B450M-DS3H

AMD B450 Ultra Durable Motherboard with Realtek^® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor, CEC 2019 ready

Supports AMD 2^nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1^st Generation Ryzen™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
HDMI, DVI-D Ports for Multiple Display
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB Fusion supports RGB LED Strips in 7-Colors
Realtek^® Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
CEC 2019 Ready, Save Power with a Single Click

CPU
AM4 Socket:
1. AMD Ryzen™ 2^nd Generation processors
2. AMD Ryzen™ with Radeon™ Vega Graphics processors
3. AMD Ryzen™ 1st Generation processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD B450
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz^(Note)
  * Support for HDMI 2.0 version and HDCP 2.2.^(Note)
Maximum shared memory of 2 GB

(Note) Actual support may vary by CPU.
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN
1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)^(Note)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot
  (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
(Note) Actual support may vary by CPU.
Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
Chipset:
1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
1. 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
14. 1 x serial port header
15. 1 x Clear CMOS jumper

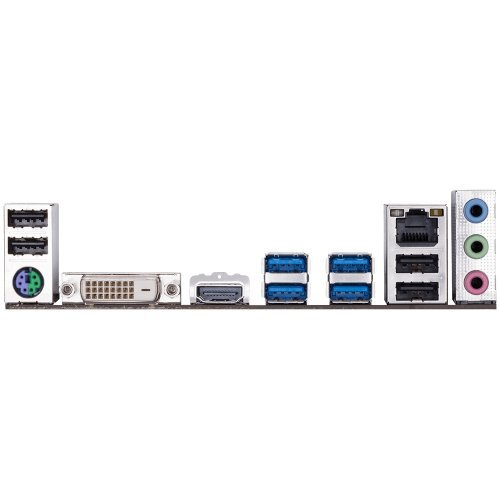

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.1 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  3D OSD
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  Smart Survey
  System Information Viewer
  USB Blocker
  V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
2. Support for Windows 7 64-bit
  * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
1. Micro ATX Form Factor; 24.4cm x 21.5cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
