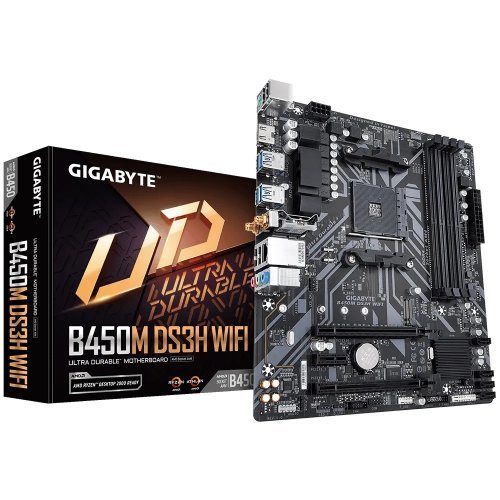

Дънна платка Gigabyte B450M DS3H WIFI

Продуктов код: 87186
Дънна платка Gigabyte
Дънна платка Gigabyte B450M DS3H WIFI Дънна платка Gigabyte B450M DS3H WIFI Дънна платка Gigabyte B450M DS3H WIFI Дънна платка Gigabyte B450M DS3H WIFI
Дънна платка Gigabyte
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Gigabyte
Модел:
-
Партиден номер:
B450M DS3H WIFI
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
AMD B450
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
AMD AM4
Form Factor:
mATX
Видео изходи:
HDMI
Wi-Fi свързаност:
Да
Цена с включен ДДС:
181.27 лв.
Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта
  • Въпроси и отговори

Gigabyte B450M DS3H WIFI

Характеристики

  • CPU's supported: AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Memory type:
    4 x DDR4 DIMM sockets supporting up to 128 GB of system memory;
    Dual channel memory architecture;
    Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules;
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
    Support for Extreme Memory Profile (XMP) memory modules
  • Chipset: AMD B450
  • Graphics:
    Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note);
    * Support for HDMI 2.0 version and HDCP 2.2.(Note);
    Maximum shared memory of 16 GB
  • Expansion Slots:
    1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note);
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.);
    1 x PCI Express x16 slot, running at x1 (PCIEX1_2);
    1 x PCI Express x1 slot;
    (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
  • Storage:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support);
    * Actual support may vary by CPU.;
    * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.;
    4 x SATA 6Gb/s connectors;
    Support for RAID 0, RAID 1, and RAID 10
  • I/O:
    1 x PS/2 keyboard/mouse port;
    1 x HDMI port;
    4 x USB 3.1 Gen 1 ports;
    4 x USB 2.0/1.1 ports;
    2 x SMA antenna connectors (1T1R);
    1 x RJ-45 port;
    3 x audio jacks
  • Connectors:
    1 x 24-pin ATX main power connector;
    1 x 8-pin ATX 12V power connector;
    1 x CPU fan header;
    1 x system fan header;
    1 x M.2 Socket 3 connector;
    4 x SATA 6Gb/s connectors;
    1 x front panel header;
    1 x front panel audio header;
    1 x S/PDIF Out header;
    1 x CPU cooler LED strip/RGB LED strip header;
    1 x RGB LED strip header;
    2 x addressable LED strip headers;
    1 x USB 3.1 Gen 1 header;
    2 x USB 2.0/1.1 headers;
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only);
    1 x serial port header;
    1 x Clear CMOS jumper
  • Audio:
    Realtek®Audio CODEC;
    High Definition Audio;
    2/4/5.1/7.1-channel;
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;
    Support for S/PDIF O
  • LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  • BIOS:
    1 x 128 Mbit flash;
    Use of licensed AMI UEFI BIOS;
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Form Factor:
    Micro ATX Form Factor;
    24.4cm x 21.5cm
  • OS:
    Support for Windows 10 64-bit;
    Support for Windows 7 64-bit;
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Other:
    AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE);
    WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band;
    BLUETOOTH 5.0;
    Support for 11ac wireless standard
  • Warranty: 36 Months
