Gigabyte GA-AX370-Gaming (rev. 1.0), sAM4

Продуктов код: 26367
Дънна платка Gigabyte
Дънна платка Gigabyte GA-AX370-Gaming (rev. 1.0), sAM4 (умалена снимка 1) Дънна платка Gigabyte GA-AX370-Gaming (rev. 1.0), sAM4 (умалена снимка 2) Дънна платка Gigabyte GA-AX370-Gaming (rev. 1.0), sAM4 (умалена снимка 3) Дънна платка Gigabyte GA-AX370-Gaming (rev. 1.0), sAM4 (умалена снимка 4) Дънна платка Gigabyte GA-AX370-Gaming (rev. 1.0), sAM4 (умалена снимка 5)
Дънна платка Gigabyte
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Gigabyte
Модел:
GA-AX370-Gaming (rev.1.0)
Партиден номер:
-
Гаранция:
36 месеца
Чипсет:
AMD X370
Socket:
AMD AM4
Предназначение:
Десктоп
Слотове за памет:
4
RAM- поколение:
DDR4
Видео изходи:
HDMI
Form Factor:
ATX
Интерфейс:
M.2, PS/2, RJ-45, SATA Express 10 Gb/s, USB 2.0, USB 3.1

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Информация за Gigabyte GA-AX370-Gaming (rev.1.0)

  • Ревюта
  • Въпроси и отговори



  • CPU
    AM4 Socket:
    1. AMD Ryzen™ processor
    2. AMD 7th Generation A-series/ Athlon™ processor
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD X370
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz memory modules
      * Support for higher than DDR4 2667 MHz may vary by CPU.
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    2. Maximum shared memory of 2 GB
    * Actual support may vary by CPU.
  • Audio
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * Actual support may vary by CPU.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 3 x PCI Express x1 slots
      * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty.
      (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
      * Actual support may vary by CPU.
    2. 8 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
      * Actual support may vary by CPU.
  • USB
    ASMedia® USB 3.1 Gen 2 Controller:
    1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
    Chipset:
    1. 6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x system fan/water cooling pump header
    6. 1 x M.2 Socket 3 connector
    7. 8 x SATA 6Gb/s connectors
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x S/PDIF Out header
    11. 2 x USB 3.1 Gen 1 headers
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x Trusted Platform Module (TPM) header
    15. 1 x Clear CMOS jumper

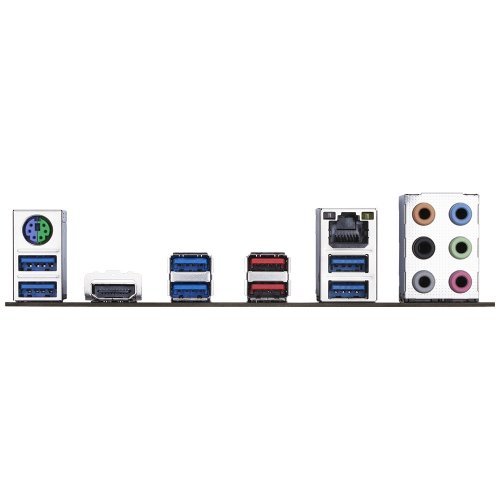

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x HDMI port
    3. 2 x USB 3.1 Gen 2 Type-A ports (red)
    4. 6 x USB 3.1 Gen 1 ports
    5. 1 x RJ-45 port
    6. 1 x optical S/PDIF Out connector
    7. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      3D OSD
      Ambient LED
      AutoGreen
      BIOS Setup
      Cloud Station
      Color Temperature
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. ATX Form Factor; 30.5cm x 23.0cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
