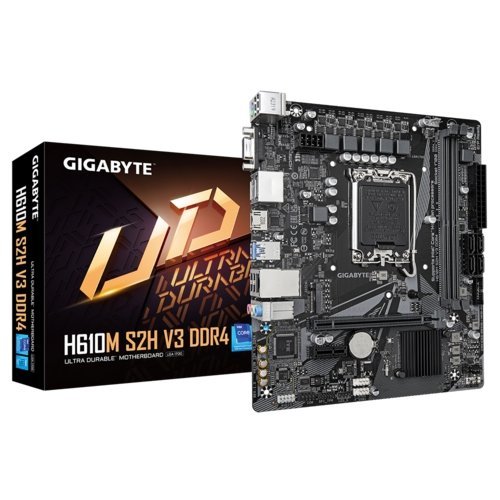

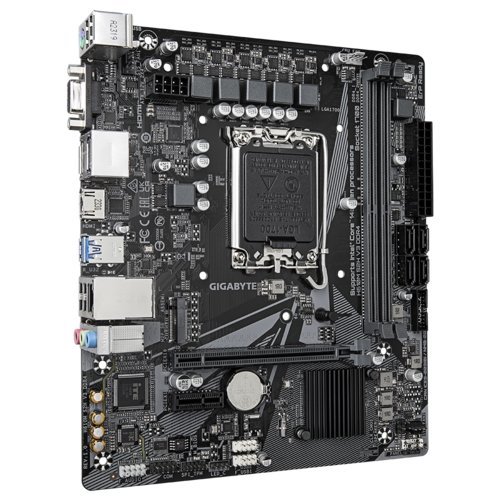

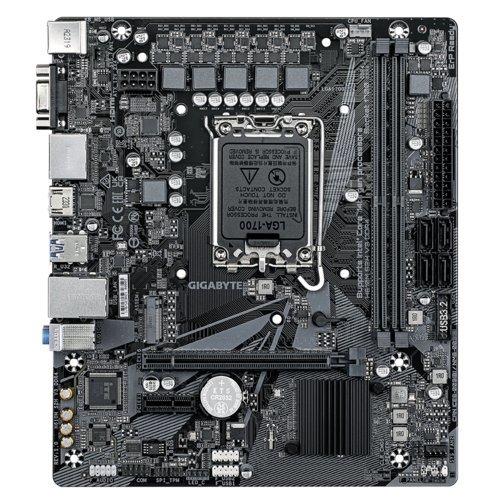

Дънна платка Gigabyte H610M S2H V3 DDR4

Name: Дънна платка Gigabyte H610M S2H V3 DDR4
Brand: Gigabyte
SKU: H610M S2H V3 DDR4
Availability: OutOfStock

Продуктов код: 85442

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

H610M S2H V3 DDR4

Партиден номер:

H610M S2H V3 DDR4

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel H610

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1700

Form Factor:

mATX

Видео изходи:

D-Sub(VGA), DisplayPort, HDMI

Wi-Fi свързаност:

Не

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte H610M S2H V3 DDR4

CPUs supported: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processor;
L3 cache varies with CPU;

Memory type: Support for DDR4 320030002933266624002133 MTs memory module;
2 x DDR4 DIMM sockets supporting up to 64 GB 32 GB single DIMM capacity of system memory;
Dual channel memory architecture;
Support for ECC Un-buffered DIMM 1Rx82Rx8 memory modules operate in non-ECC mode;
Support for non-ECC Un-buffered DIMM 1Rx82Rx81Rx16 memory module;
Support for Extreme Memory Profile XMP memory module;
The CPU and memory configuration may affect the supported memory types, data rate speed, and number of DRAM modules, please refer to Memory Support List on GIGABYTEs website for more information.;

Graphics: Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x120060 Hz;
- 1 x HDMI port, supporting a maximum resolution of 4096x216060 Hz;
Support for HDMI 2.1 version and HDCP 2.3.;
Support native HDMI 2.1 TMDS compatible ports.;
- 2 x DisplayPorts, supporting a maximum resolution of 4096x230460 Hz;
Support for DisplayPort 1.2 version and HDCP 2.3;
Graphics specifications may vary depending on CPU support.;
Support for up to triple-display at the same time;

Expansion Slots: CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;
Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1;

Storage: Chipset: - 1 x M.2 connector Socket 3, M key, type 22802260 PCIe 3.0 x4x2 SSD support;
- 4 x SATA 6Gbs connector;

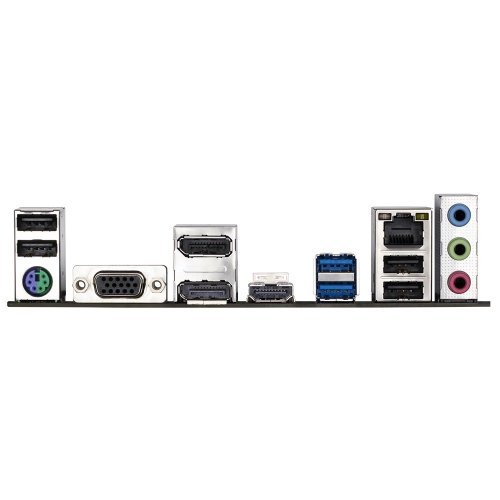

IO: 1 x PS2 keyboardmouse port;
1 x D-Sub port;
2 x DisplayPort;
1 x HDMI port;
2 x USB 3.2 Gen 1 port;
4 x USB 2.01.1 port;
1 x RJ-45 port;
3 x audio jack;

Connectors: 1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
2 x system fan header;
1 x M.2 Socket 3 connector;
4 x SATA 6Gbs connector;
1 x RGB LED strip header;
1 x front panel header;
1 x front panel audio header;
1 x speaker header;
1 x USB 3.2 Gen 1 header;
2 x USB 2.01.1 header;
1 x Trusted Platform Module header For the GC-TPM2.0 SPIGC-TPM2.0 SPI 2.0 GC-TPM2.0 SPI V2 module only;
1 x serial port header;
1 x Clear CMOS jumper;
1 x chassis intrusion header;
